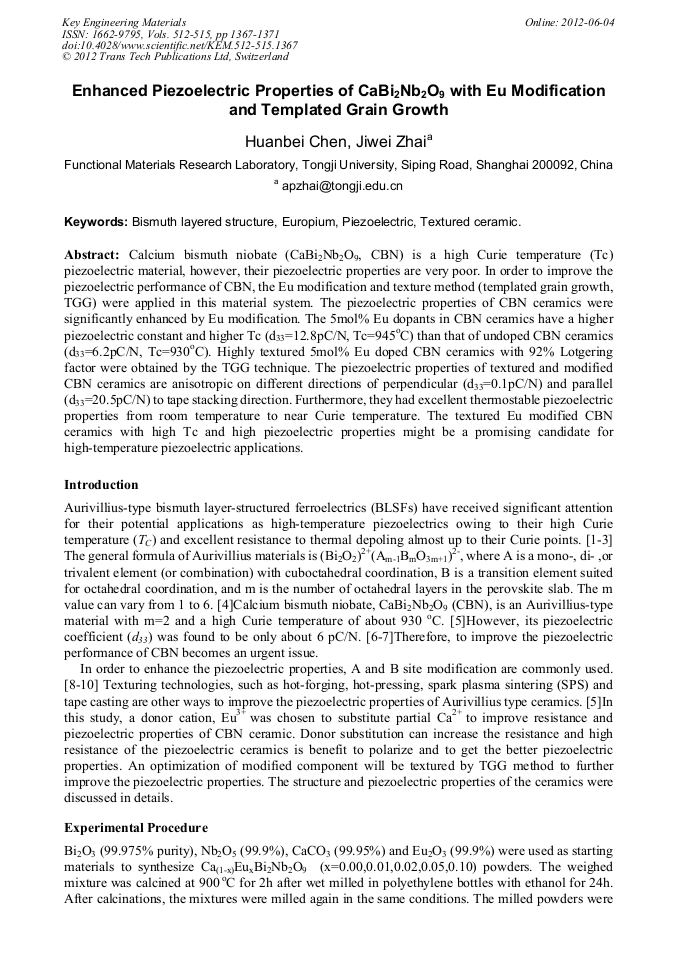

Enhanced Piezoelectric Properties of CaBi₂Nb₂O₉ with Eu Modification and Templated Grain Growth

Abstract:

Calcium bismuth niobate (CaBi₂Nb₂O₉, CBN) is a high Curie temperature (Tc) piezoelectric material, however, their piezoelectric properties are very poor. In order to improve the piezoelectric performance of CBN, the Eu modification and texture method (templated grain growth, TGG) were applied in this material system. The piezoelectric properties of CBN ceramics were significantly enhanced by Eu modification. The 5mol% Eu dopants in CBN ceramics have a higher piezoelectric constant and higher Tc (d₃₃=12.8pC/N, Tc=945°C) than that of undoped CBN ceramics (d₃₃=6.2pC/N, Tc=930°C). Highly textured 5mol% Eu doped CBN ceramics with 92% Lotgering factor were obtained by the TGG technique. The piezoelectric properties of textured and modified CBN ceramics are anisotropic on different directions of perpendicular (d₃₃=0.1pC/N) and parallel (d₃₃=20.5pC/N) to tape stacking direction. Furthermore, they had excellent thermostable piezoelectric properties from room temperature to near Curie temperature. The textured Eu modified CBN ceramics with high Tc and high piezoelectric properties might be a promising candidate for high-temperature piezoelectric applications.

• Periodical: Key Engineering Materials (Volumes 512-515)
• Pages: 1367-1371
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.512-515.1367
• Online since: June 2012
• Authors: Huan Bei Chen, Ji Wei Zhai
• Keywords: Bismuth Layered Structure, Europium (Eu), Piezoelectric, Textured Ceramic

References

[1] R.C. Turner, P.A. Fuierer, R.E. Newnham and T.R. Shrout, Materials for High-Temperature Acoustic and Vibration Sensors - a Review, Appl Acoust. 41 (1994) 299-324.

DOI: 10.1016/0003-682x(94)90091-4

[2] L. Pardo, A. Castro, P. Millan, et al., (Bi3TiNbO9)(x)(SrBi2Nb2O9)(1-x) Aurivillius type structure piezoelectric ceramics obtained from mechanochemically activated oxides, Acta Mater. 48 (2000) 2421-2428.

DOI: 10.1016/s1359-6454(99)00459-0

[3] H.X. Yan, H.T. Zhang, M.J. Reece and X.L. Dong, Thermal depoling of high Curie point Aurivillius phase ferroelectric ceramics, Appl Phys Lett. 87 (2005)082911.

DOI: 10.1063/1.2034121

[4] Y. Wu, M.J. Forbess, S. Seraji, S.J. Limmer, T.P. Chou, C. Nguyen and G.Z. Cao, Doping effect in layer structured SrBi2Nb2O9 ferroelectrics, J Appl Phys. 90 (2001) 5296-5302.

DOI: 10.1063/1.1413236

[5] H.B. Chen, F. Fu and J.W. Zhai, Fabrication and Piezoelectric Property of Highly Textured CaBi2Nb2O9 Ceramics by Tape Casting, Jpn J Appl Phys. 50 (2011)050207.

DOI: 10.7567/jjap.50.050207

[6] H.X. Yan, H.T. Zhang, R. Ubic, M.J. Reece, J. Liu, Z.J. Shen and Z. Zhang, A lead-free high-Curie-point ferroelectric ceramic, CaBi2Nb2O9, Adv Mater. 17 (2005) 1261-1265.

DOI: 10.1002/adma.200401860

[7] C.M. Wang, S.J. Zhang, J.F. Wang, et al., Electromechanical properties of calcium bismuth niobate (CaBi2Nb2O9) ceramics at elevated temperature, Mater Chem Phys. 118 (2009) 21-24.

DOI: 10.1016/j.matchemphys.2009.06.022

[8] Z.G. Gai, Y.Y. Feng, J.F. Wang, et al., The effect of (Li,Ce) doping in Aurivillius phase material (Na0.52K0.42Li0.06)(0.5)Bi2.5(Nb1.88Sb0.06Ta0.06)O9, Physica Status Solidi a-Applications and Materials Science. 207 (2010) 1792-1795.

[9] H.T. Zhang, H.X. Yan and M.J. Reece, The effect of Nd substitution on the electrical properties of Bi3NbTiO9 Aurivillius phase ceramics, J Appl Phys. 106 (2009)044106.

DOI: 10.1063/1.3205006

[10] H.X. Yan, H.T. Zhang, Z. Zhang, R. Ubic and M.J. Reece, B-site donor and acceptor doped Aurivillius phase Bi3NbTiO9 ceramics, J Eur Ceram Soc. 26 (2006) 2785-2792.

DOI: 10.1016/j.jeurceramsoc.2005.07.056

[11] F. Gao, R.Z. Hong, J.J. Liu, et al., Effect of different templates on microstructure of textured Na0.5Bi0.5TiO3-BaTiO3 ceramics with RTGG method, J Eur Ceram Soc. 28 (2008) 2063-2070.

DOI: 10.1016/j.jeurceramsoc.2008.02.006

[12] C.A. Randall, N. Kim, J.P. Kucera, et al., Intrinsic and extrinsic size effects in fine-grained morpho- tropic-phase-boundary lead zirconate titanate ceramics, J Am Ceram Soc. 81 (1998) 677-688.

DOI: 10.1111/j.1151-2916.1998.tb02389.x

[13] Y. Saito, H. Takao, T. Tani, T. Nonoyama, K. Takatori, T. Homma, T. Nagaya and M. Nakamura, Lead-free piezoceramics, Nature. 432 (2004) 84-87.

DOI: 10.1038/nature03028

[14] D.Y. Suarez, I.M. Reaney and W.E. Lee, Relation between tolerance factor and Tc in Aurivillius compounds, J Mater Res. 16 (2001) 3139-3149.

DOI: 10.1557/jmr.2001.0433

[15] R.Z. Hou and X.M. Chen, Neodymium substituted CaBi4Ti4O15 bismuth layered compound, J Eur Ceram Soc. 26 (2006) 1379-1383.

DOI: 10.1016/j.jeurceramsoc.2005.02.006

[16] Y. Shimakawa, Y. Kubo, Y. Nakagawa, et al., Crystal structure and ferroelectric properties of ABi(2)Ta(2)O(9) (A = Ca, Sr, and Ba), Phys Rev B. 61 (2000) 6559-6564.
