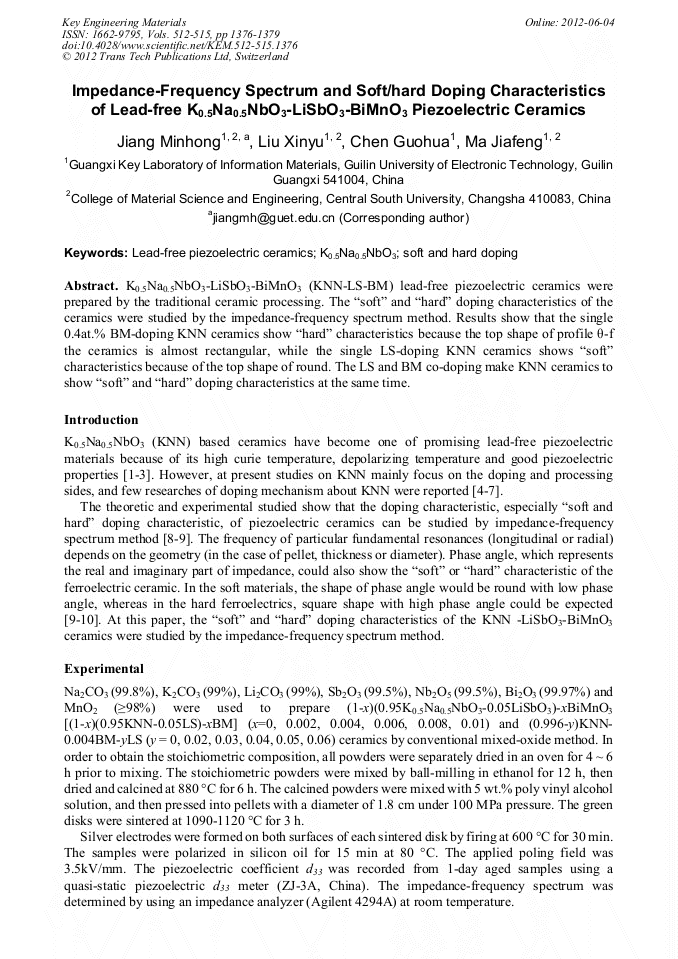

Impedance-Frequency Spectrum and Soft/Hard Doping Characteristics of Lead-Free K_0.5Na_0.5NbO₃-LiSbO₃-BiMnO₃ Piezoelectric Ceramics

Abstract:

K0.5Na0.5NbO3-LiSbO3-BiMnO3 (KNN-LS-BM) lead-free piezoelectric ceramics were prepared by the traditional ceramic processing. The “soft” and “hard” doping characteristics of the ceramics were studied by the impedance-frequency spectrum method. Results show that the single 0.4at.% BM-doping KNN ceramics show “hard” characteristics because the top shape of profile θ-f the ceramics is almost rectangular, while the single LS-doping KNN ceramics shows “soft” characteristics because of the top shape of round. The LS and BM co-doping make KNN ceramics to show “soft” and “hard” doping characteristics at the same time. Because the soft doping of LS in KNN is more preponderant than that of BM, the co-doping KNN ceramics show “soft” doping characteristics as a whole.

• Periodical: Key Engineering Materials (Volumes 512-515)
• Pages: 1376-1379
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.512-515.1376
• Online since: June 2012
• Authors: Min Hong Jiang, Xin Yu Liu, Guo Hua Chen, Jia Feng Ma
• Keywords: Hard Doping, K_0.5Na_0.5NbO₃, Lead-Free Piezoelectric Ceramics, Soft Doping

References

[1] E. Atamanik, V. Thangadurai, Dielectric properties of Ga- doped Na0.5K0.5NbO3, J. Phys. Chem. C 113 (2009) 648-4653.

[2] X. Y. Sun, J. Chen, R. B. Yu, et al., BiScO3 doped (Na0.5K0.5)NbO3 lead-free piezoelectric ceramics, J. Am. Ceram. Soc. 92 (2009) 130-132.

[3] Y. Watanabe, K. Sumida, S. Yamada, et al., Effect of Mn-doping on the piezoelectric properties of (Na0.5K0.5)(Nb0.67Ta0.33)O3 lead-free ceramics, Jpn. J. Appl. Phys. 47 (2008) 3556-3558.

DOI: 10.1143/jjap.47.3556

[4] R. Z. Zuo, C. Ye, X. S. Fang, Na0.5K0.5NbO3-BiFeO3 lead-free piezoelectric ceramics, J. Phys. Chem. Solids 69 (2008) 230-235.

DOI: 10.1016/j.jpcs.2007.08.066

[5] D. M. Lin, K. W. Kwok, H. L. W. Chan, Phase transition and electrical properties of (K0.5Na0.5)(Nb1-xTax)O3 lead-free piezoelectric ceramics, Appl. Phys. A 91 (2008) 167-171.

DOI: 10.1007/s00339-007-4391-0

[6] J. G. Wu, D. Q. Xiao, Y. Y. Wang, et al., Compositional dependence of phase structure and electrical properties in (K0.42Na0.58)NbO3-LiSbO3 lead-free ceramics, J. Appl. Phys. 102 (2007) 114113-1-114113-5.

DOI: 10.1063/1.2822454

[7] M. H. Jiang, X. Y. Liu, G. H. Chen, Phase structures and electric properties of new lead-free Na0.5K0.5NbO3-LiSbO3-BiFeO3 ceramics, Scripta. Mat. 60 (2009) 909-912.

DOI: 10.1016/j.scriptamat.2009.02.017

[8] Q. M. Zhang, H. Wang, N. Kim, et al., Direct Evaluation of Domain-wall and Intrinsic Contributions to the Dielectric and Piezoelectric Response and Their Temperature Dependence on Lead Zirconate-titanate Ceramics, J. Appl. Phys. 75 (1994) 454-458.

DOI: 10.1063/1.355874

[9] T. Takenaka, H. Nagata, Y. Hiruma, Current Developments and Prospective of Lead-Free Piezoelectric Ceramics, Jpn. J. Appl. Phys. 47 (2008) 3787-3801.

DOI: 10.1143/jjap.47.3787

[10] M. H. Nader, Lead-free piezoelectric ceramics and transducers in potassium sodium niobate-solid solution system: [Degree dissertation of Doctor]. New Jersey: The State University of New Jersey, 2007.
