Electrospun PVDF/PMMA/SiO2 Membrane Separators for Rechargeable Lithium-Ion Batteries

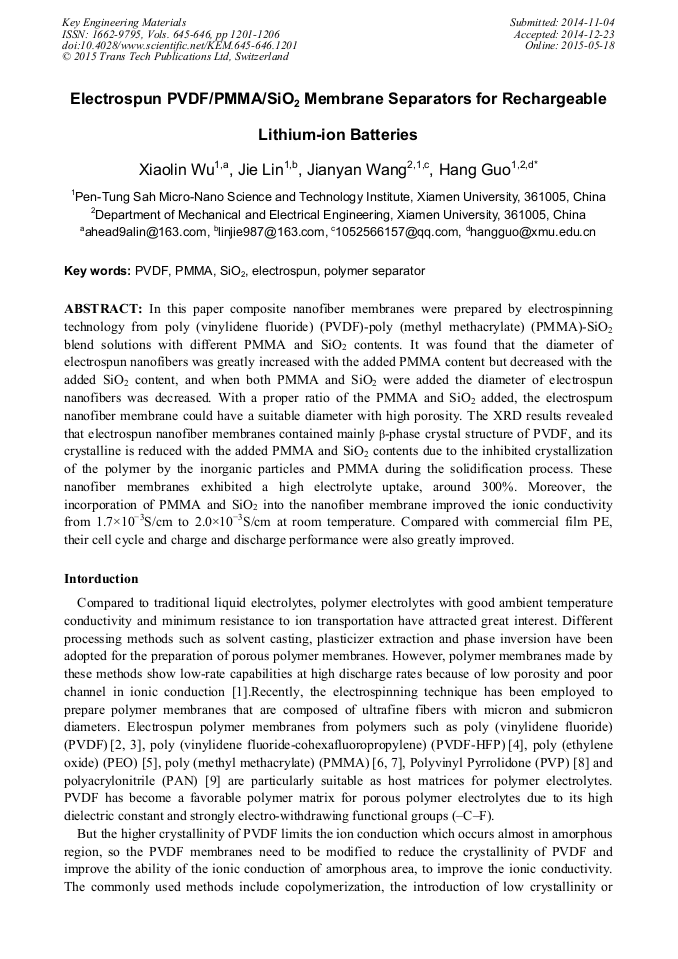

Article Preview

Abstract:

In this paper composite nanofiber membranes were prepared by electrospinning technology from poly (vinylidene fluoride) (PVDF)-poly (methyl methacrylate) (PMMA)-SiO2 blend solutions with different PMMA and SiO2 contents. It was found that the diameter of electrospun nanofibers was greatly increased with the added PMMA content but decreased with the added SiO2 content, and when both PMMA and SiO2 were added the diameter of electrospun nanofibers was decreased. With a proper ratio of the PMMA and SiO2 added, the electrospum nanofiber membrane could have a suitable diameter with high porosity. The XRD results revealed that electrospun nanofiber membranes contained mainly β-phase crystal structure of PVDF, and its crystalline is reduced with the added PMMA and SiO2 contents due to the inhibited crystallization of the polymer by the inorganic particles and PMMA during the solidification process. These nanofiber membranes exhibited a high electrolyte uptake, around 300%. Moreover, the incorporation of PMMA and SiO2 into the nanofiber membrane improved the ionic conductivity from 1.7×10−3S/cm to 2.0×10−3S/cm at room temperature. Compared with commercial film PE, their cell cycle and charge and discharge performance were also greatly improved.

You might also be interested in these eBooks
Micro-Nano Technology XVI View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 645-646)

Pages:

1201-1206

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.645-646.1201

Citation:

Cite this paper

Online since:

May 2015

Authors:

Xiao Lin Wu, Jie Lin, Jian Yan Wang, Hang Guo*

Keywords:

Electrospun, PMMA, Polymer Separator, PVDF, SiO2

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2015 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] Young Jin Kim, Chang Hyun Ahn, Myung Bok Lee, Myung-Seok Choi, Characteristics of electros pun PVDF/SiO2 composite nanofiber membranes as polymer electrolyte, Materials Chemistry and Physics. 127 (2011) 137–142.

DOI: 10.1016/j.matchemphys.2011.01.046

Google Scholar

[2] Guodong Kang, Yiming Cao, Application andmodification ofpoly(vinylidene fluoride) (PVDF) membranes – A review, Journal ofMembraneScience. 463(2014)145–165.

Google Scholar

[3] Fang Chyou Chiu, Ching Chia Chen, Ying-Jing Chen, Binary and ternary nanocomposites based on PVDF, PMMA, and PVDF/PMMA blends: polymorphism, thermal, and rheological properties, J Polym Res. 21(2014)378.

DOI: 10.1007/s10965-014-0378-7

Google Scholar

[4] Hui Xie, Zhiyuan Tang, Zhongyan Li, Yanbing He, Yong Liu, Hong Wang, PVDF-HFP composite polymer electrolyte with excellent electrochemical properties for Li-ion batteries, J Solid State Electrochem. 12(2008)1497–1502.

DOI: 10.1007/s10008-008-0511-9

Google Scholar

[5] Margaret W. Frey, Lei Li, Electrospinning and Porosity Measurements of Nylon-6/Poly(ethylene oxide) Blended Nonwovens, Journal of Engineered Fibers and Fabrics. Volume 2, Issue 1(2007).

DOI: 10.1177/155892500700200103

Google Scholar

[6] Clarisa Carrizales, Sean Pelfrey, Roman Rincon, et al, Thermal and mechanical properties of electrospun PMMA, PVC, Nylon 6, and Nylon 6, 6, POLYMERS FOR ADVANCED TECHNOLOGIES. 19(2008) 124–130.

DOI: 10.1002/pat.981

Google Scholar

[7] Tamer Uyar, Rasmus Havelund, et al, Cyclodextrin functionalized poly(methyl methacrylate) (PMMA) electrospun Nnanofibers for organic vapors waste treatment, Journal of Membrane Science. 365 (2010) 409–417.

DOI: 10.1016/j.memsci.2010.09.037

Google Scholar

[8] Meice Wang, Dawei Fang, Nannan Wang, et al, Preparation of PVDF/PVP coreeshell nanofibers mats via homogeneous electrospinning, Polymer. 55 (2014) 2188-2196.

DOI: 10.1016/j.polymer.2014.02.035

Google Scholar

[9] Kyunghwan Yoon, Kwangsok Kim, Xuefen Wang, et al, High flux ultrafiltration membranes based on electrospun nanofibrous PAN scaffolds and chitosan coating, Polymer. 47 (2006) 2434–2441.

DOI: 10.1016/j.polymer.2006.01.042

Google Scholar

[10] S. S. Choi, Y. S. Lee, C.W. Joo, Electrospun PVDF nanofiber web as polymer electrolyte or separator, J. Electrochemical Acta. 50(2004) 339-343.

DOI: 10.1016/j.electacta.2004.03.057

Google Scholar

[11] Yanhuai Ding, Ping Zhang, Zhilin Long, et al, The ionic conductivity and mechanical property of electrospun P(VdF-HFP)/PMMA membranes for lithium ion batteries, Journal of Power Sources. 329(2009)56-59.

DOI: 10.1016/j.memsci.2008.12.024

Google Scholar

[12] Na Wu, Qi Cao, Xianyou Wang, Sheng Li, Xiaoyun Li, Huayang Deng, In situ ceramic fillers of electrospun thermoplastic polyurethane/poly(vinylidene fluoride) based gel polymer electrolytes for Li-ion batteries, J. of Power Sources. 196(2011).

DOI: 10.1016/j.jpowsour.2011.07.079

Google Scholar

[13] Meltem Yanilmaz, Chen Chen, Xiangwu Zhang, Fabrication and Characterization of SiO2/PVDF Composite Nanofiber-Coated PP Nonwoven Separators for Lithium-Ion Batteries, JOURNAL OF POLYMER SCIENCE, PART B: POLYMER PHYSICS. 51(2013) 1719–1726.

DOI: 10.1002/polb.23387

Google Scholar
