Dislocations Gliding Study by IR Thermography in C-Mn Steels with Different Solute Atoms Content in the Gigacycle Fatigue Domain

Abstract:

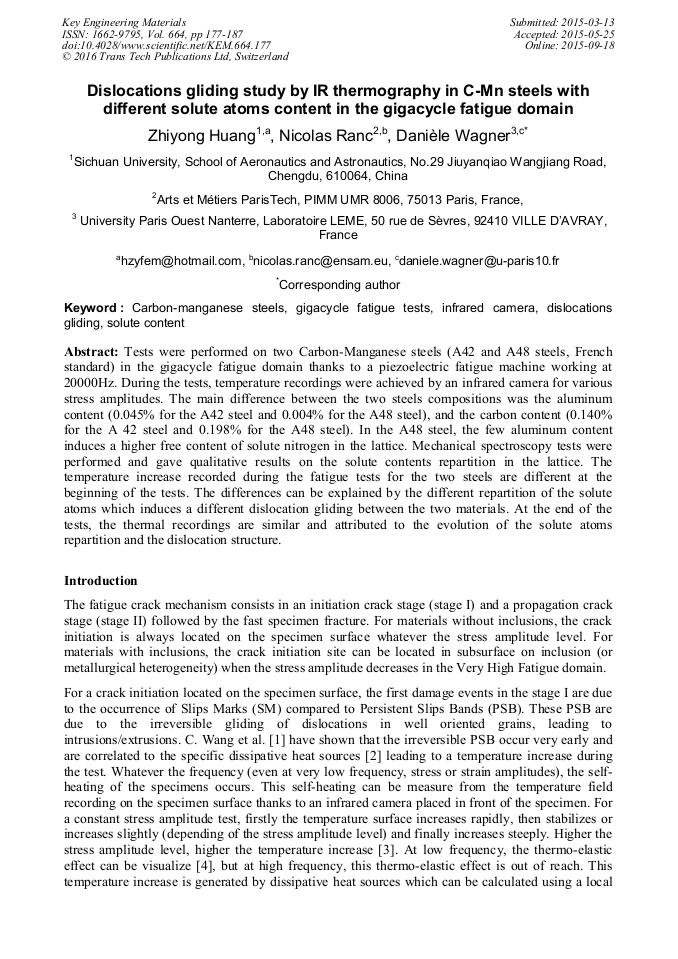

Tests were performed on two Carbon-Manganese steels (A42 and A48 steels, French standard) in the gigacycle fatigue domain thanks to a piezoelectric fatigue machine working at 20000Hz. During the tests, temperature recordings were achieved by an infrared camera for various stress amplitudes. The main difference between the two steels compositions was the aluminum content (0.045% for the A42 steel and 0.004% for the A48 steel), and the carbon content (0.140% for the A 42 steel and 0.198% for the A48 steel). In the A48 steel, the few aluminum content induces a higher free content of solute nitrogen in the lattice. Mechanical spectroscopy tests were performed and gave qualitative results on the solute contents repartition in the lattice. The temperature increase recorded during the fatigue tests for the two steels are different at the beginning of the tests. The differences can be explained by the different repartition of the solute atoms which induces a different dislocation gliding between the two materials. At the end of the tests, the thermal recordings are similar and attributed to the evolution of the solute atoms repartition and the dislocation structure.

• Periodical: Key Engineering Materials (Volume 664)
• Pages: 177-187
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.664.177
• Online since: September 2015
• Authors: Zhi Yong Huang, Nicolas Ranc, Danièle Wagner*
• Keywords: Carbon-Manganese Steels, Dislocations Gliding, Gigacycle Fatigue Tests, Infrared Camera, Solute Content

References

[1] C. Wang, D. Wagner, C. Bathias - Fatigue crack initiated from PSB at VHCF in Iron, International Congress on Fracture, Beijing, Chine, 16-21 juin (2013).

[2] C. Wang, A. Blanche, D. Wagner, A. Chrysochoos, C. Bathias, Dissipative and microstructural effects associated with fatigue crack initiation on an Armco iron, Int. Jl fatigue, 58 (2014) 152-157.

DOI: 10.1016/j.ijfatigue.2013.02.009

[3] D. Wagner, N. Ranc, C. Bathias, P.C. Paris, Fatigue crack initiation detection by an infrared thermography method, Fat. Fract. Engng Mater Struct 33 (2009)12-21.

DOI: 10.1111/j.1460-2695.2009.01410.x

[4] D. Wagner, N. Ranc, Self heating of materials during mechanical solicitations: a mean to understand the damage mechanism. SEM Fall Conference and International Symposium on Intensive loading and its effects, 19-22 oct 2014, Beijing, Chine.

[5] C. Wang, D. Wagner, C. Bathias - Study of fatigue crack mechanism on an armco iron in the gigacycle fatigue by temperature recording and microstructural observations, International Congress on Fracture, Beijing, Chine, 16-21 juin (2013).

DOI: 10.1016/j.ijfatigue.2012.06.005

[6] D. Wagner, J.C. Moreno, C. Prioul, Vieillissement dynamique dans les joints soudés d'aciers au C-Mn : influence de quelques paramètres métallurgiques sur le comportement en traction, Revue de Métallurgie-CIT/SGM, 12 (décembre 2000)1481-1500.

[7] D. Wagner, J.C. Moreno, C. Prioul, Dynamic Strain Aging Sensitivity of Heat Affected Zones in C-Mn Steels, J. of Nucl. Mat., Volume 252-3 (février 1998) 257-265.

DOI: 10.1016/s0022-3115(97)00279-1

[8] L. Chen, N.M. Van der Pers, A. Bottger, Th.H. De Keijser, E.J. Mittemeijer, Lattice changes of iron-nitrogen martensite on ageing at room temperature, Met. Trans. A, 21A (1990) 2857-2867.

DOI: 10.1007/bf02647206

[9] L. Chen, N.M. Van der Pers, A. Bottger, Th.H. De Keijser, E.J. Mittemeijer, Lattice changes of iron-carbon martensite on ageing at room temperature, Met. Trans. A, 22A (1991) 1957-(1967).

DOI: 10.1007/bf02669863

[10] L. Chen, A. Bottger, E.J. Mittemeijer, Tempering of iron-carbon-nitrogen martensites, Met. Trans. A, 23A (1992) 1129-1145.

DOI: 10.1007/bf02665045

[11] P. Fergusson, K.H. Jack, Quench ageing and strain ageing of nitrogen ferrite. Proc Heat Treatment Conf., Ed. The Metals Society, Birmingham (1981) 158.

[12] D. Wagner, N. Roubier, C. Prioul, Measurement of sensitivity to dynamic strain aging in C-Mn steels by internal friction method, Mat. Sc and Technology, Vol 22-3(2006) 301-307.

DOI: 10.1179/174328406x86155

[13] J. D. Fast, Mét. Cor. Ind. 435, (1961) 383.

[14] C. Bathias, P.C. Paris, Gigacycle fatigue in mechanical practice. Marcel Dekker, New York, (2005).

[15] N. Ranc, D. Wagner, P.C. Paris, Study of thermal effects associated with crack propagation during very high cycle fatigue, Acta Materiala 56 (2008) 4012-4021.

DOI: 10.1016/j.actamat.2008.04.023

[16] M.S. Blanter, I.S. Golovin, H. Neuhäuser, H.R. Sinning, Internal Friction in Metallic Materials-a Handbook, Springer, Berlin, (2007).

DOI: 10.1007/978-3-540-68758-0

[17] B. Jaoul, Etude de la plasticité et application aux métaux, Mines Paris Tech Les Presses, Paris, (2008).

[18] D.V. Wilson, J.K. Tromans, Effect of strain ageing on fatigue damage in low carbon steel, Acta Met. 18 (1970) 1197-1208.

DOI: 10.1016/0001-6160(70)90110-0

[19] C. Wang, PhD Thesis, Microplasticité et dissipation en fatigue à très grand nombre de cycles du fer et de l'acier, 7 juin 2014, Université Paris Ouest, France.
