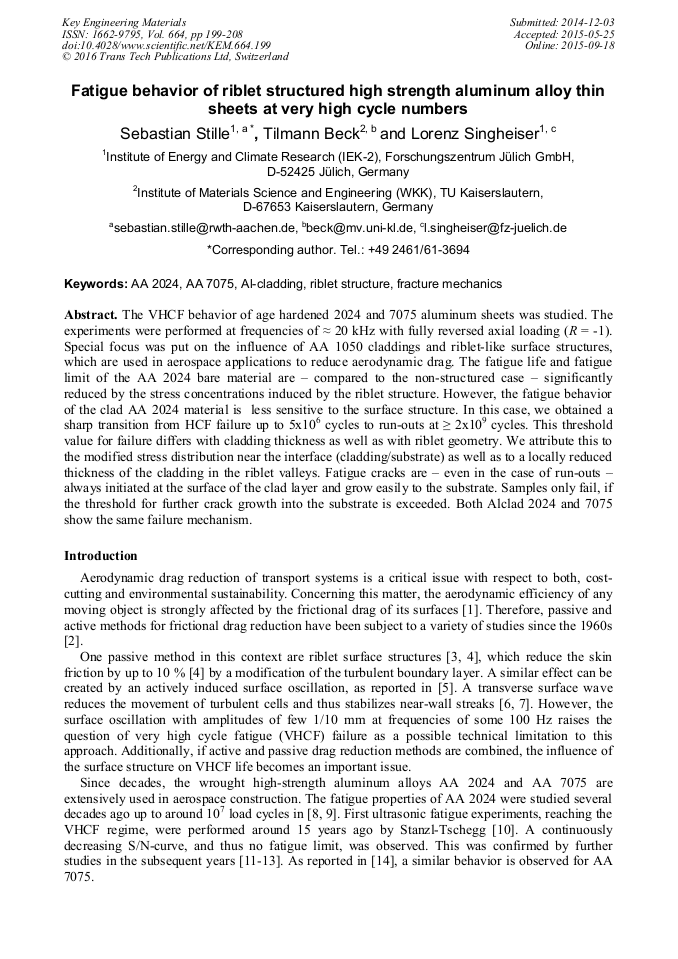

Fatigue Behavior of Riblet Structured High Strength Aluminum Alloy Thin Sheets at Very High Cycle Numbers

Abstract:

The VHCF behavior of age hardened 2024 and 7075 aluminum sheets was studied. The experiments were performed at frequencies of ≈ 20 kHz with fully reversed axial loading (R = -1). Special focus was put on the influence of AA 1050 claddings and riblet-like surface structures, which are used in aerospace applications to reduce aerodynamic drag. The fatigue life and fatigue limit of the AA 2024 bare material are – compared to the non-structured case – significantly reduced by the stress concentrations induced by the riblet structure. However, the fatigue behavior of the clad AA 2024 material is less sensitive to the surface structure. In this case, we obtained a sharp transition from HCF failure up to 5x10⁶ cycles to run-outs at ≥ 2x10⁹ cycles. This threshold value for failure differs with cladding thickness as well as with riblet geometry. We attribute this to the modified stress distribution near the interface (cladding/substrate) as well as to a locally reduced thickness of the cladding in the riblet valleys. Fatigue cracks are – even in the case of run-outs – always initiated at the surface of the clad layer and grow easily to the substrate. Samples only fail, if the threshold for further crack growth into the substrate is exceeded. Both Alclad 2024 and 7075 show the same failure mechanism.

• Periodical: Key Engineering Materials (Volume 664)
• Pages: 199-208
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.664.199
• Online since: September 2015
• Authors: Sebastian Stille*, Tilmann Beck, Lorenz Singheiser
• Keywords: AA 2024, AA 7075, Al-Cladding, Fracture Mechanics, Riblet Structure

References

[1] G. Schrauf, B. Gölling, N. Wood, Key Aerodanymic Technologies for Aorcraft Performance Improvement, in: 5th Community Aeronautical Days, Vienna, (2006).

[2] J.P. Marec, Drag Reduction: a Major Task for Research, in: Aerodynamic Drag Reduction Technologies, Springer Berlin Heidelberg, 2001, pp.17-27.

DOI: 10.1007/978-3-540-45359-8_3

[3] P.R. Viswanath, Aircraft viscous drag reduction using riblets, Progress in Aerospace Sciences 38 (2002) 571-600.

DOI: 10.1016/s0376-0421(02)00048-9

[4] D.W. Bechert, M. Bruse, W. Hage, J.G.T. Van Der Hoeven, G. Hoppe, Experiments on drag-reducing surfaces and their optimization with an adjustable geometry, Journal of Fluid Mechanics 338 (1997) 59-87.

DOI: 10.1017/s0022112096004673

[5] Y. Du, G.E. Karniadakis, Suppressing wall turbulence by means of a transverse traveling wave, Science 288 (2000) 1230-1234.

DOI: 10.1126/science.288.5469.1230

[6] G.E. Karniadakis, K. -S. Choi, Mechanisms on transverse motions in turbulent wall flows, Annual Review of Fluid Mechanics 35 (2003) 45-62.

[7] H. Zhao, J.Z. Wu, J.S. Luo, Turbulent drag reduction by traveling wave of flexible wall, Fluid Dynamics Research 34 (2004) 175-198.

DOI: 10.1016/j.fluiddyn.2003.11.001

[8] J. Schijve, F.A. Jacobs, Fatigue tests on unnotched and notched specimens of 2024-T3 Alclad, 2048-T8 Alclad and 7178-T6 extruded material, Nat. Aerospace Laboratory, Amsterdam, (1968).

[9] P.R. Edwards, M.G. Earl, A.R.C. Britain, A comparative study of the fatigue performance of notched specimens of clad and unclad aluminium alloy, with and without a pre-stress, Aeron. Res. Council, London, (1977).

[10] S. Stanzl-Tschegg, Fracture mechanisms and fracture mechanics at ultrasonic frequencies, Fatigue & Fracture of Engineering Materials & Structures 22 (1999) 567-579.

DOI: 10.1046/j.1460-2695.1999.00180.x

[11] Q.Y. Wang, T. Li, X.G. Zeng, Gigacycle Fatigue Behavior of High Strength Aluminum Alloys, in: Fatigue 2010, Elsevier Science Bv, Amsterdam, 2010, pp.65-70.

DOI: 10.1016/j.proeng.2010.03.007

[12] T. Li, J. Liu, Q.Y. Wang, Notch size effect on very high cycle fatigue behavior of 2024-T4 aluminum alloy, in: 5th International Conference on Very High Cycle Fatigue, DVM, Berlin, 2011, pp.327-332.

[13] H. Mayer, R. Schuller, M. Fitzka, Fatigue of 2024-T351 aluminium alloy at different load ratios up to 1010 cycles, International Journal of Fatigue 57 (2013).

DOI: 10.1016/j.ijfatigue.2012.07.013

[14] H.R. Mayer, M. Papakyriacou, R. Pippan, S. Stanzl-Tschegg, Influence of loading frequency on the high cycle fatigue properties of AlZnMgCu1. 5 aluminium alloy, Materials Science and Engineering A314 (2001), 48-54.

DOI: 10.1016/s0921-5093(00)01913-4

[15] M.S. Hunter, W.G. Fricke Jr., Metallographic aspects of fatigue behavior of aluminium, in: Proceedings of the American Society for Testing materials, 1954, pp.717-736.

[16] S. Stille, J. Pöplau, T. Beck, M. Bambach, G. Hirt, L. Singheiser, Very high cycle fatigue behavior of riblet structured Alclad 2024 thin sheets, International Journal of Fatigue 63 (2014) 183-190.

DOI: 10.1016/j.ijfatigue.2014.01.023

[17] G. Hirt, M. Thome, Rolling of functional metallic surface structures, CIRP Annals - Manufacturing Technology 57 (2008) 317-320.

DOI: 10.1016/j.cirp.2008.03.034

[18] G. Hirt, M. Thome, Large area rolling of functional metallic micro structures, Production Engineering 1 (2007) 351-356.

DOI: 10.1007/s11740-007-0067-z

[19] J. Pöplau, S. Stille, T. Romans, T. Beck, L. Singheiser, G. Hirt, The influence of process parameters on the forming of riblets during riblet rolling, Key Engineering Materials 611-612 (2014) 183-190.

DOI: 10.4028/www.scientific.net/kem.611-612.715

[20] S. Stille, T. Beck, L. Singheiser, Influence of riblet geomety on fatigue life of surface structured AA 2024 thin sheets, International Journal of Fatigue 68 (2014) 48-55.

DOI: 10.1016/j.ijfatigue.2014.06.008

[21] H. Mayer, Ultrasonic torsion and tension–compression fatigue testing: Measuring principles and investigations on 2024-T351 aluminium alloy, International Journal of Fatigue 28 (2006) 1446-1455.

DOI: 10.1016/j.ijfatigue.2005.05.020

[22] S. Kovacs, S. Stille, D. Ernstes, T. Beck, Upgrading of an ultrasonic fatigue testing machine by means of early stage damage detection, MP Materials Testing 55 (2013) 78-83.

DOI: 10.3139/120.110409

[23] K.N. Smith, P. Watson, T.H. Topper, A stress-strain function for the fatigue of metals, Journal of Materials 4 (1970) 767-778.

[24] S. Usami, Applications of threshold cyclic-plastic-zone-size criterion to some fatigue limit problems, in: International Symposium on Fatigue Thresholds, Stockholm, 1982, pp.205-238.

[25] P. Grad, B. Reuscher, A. Brodyanski, M. Kopnarski, E. Kerscher, Mechanism of fatigue crack initiation and propagation in the very high cycle fatigue regime of high-strength steels, Scripta Materialia 67 (2012) 838-841.

DOI: 10.1016/j.scriptamat.2012.07.049

[26] A. Bonakdar, F. Wang, J.J. Williams, N. Chawla, Environmental effects on fatigue crack growth in 7075 aluminum alloy, Metallurgical and Materials Transactions A: Physical Metallurgy and Materials Science 43 (2012) 2799-2809.

DOI: 10.1007/s11661-011-0810-0
