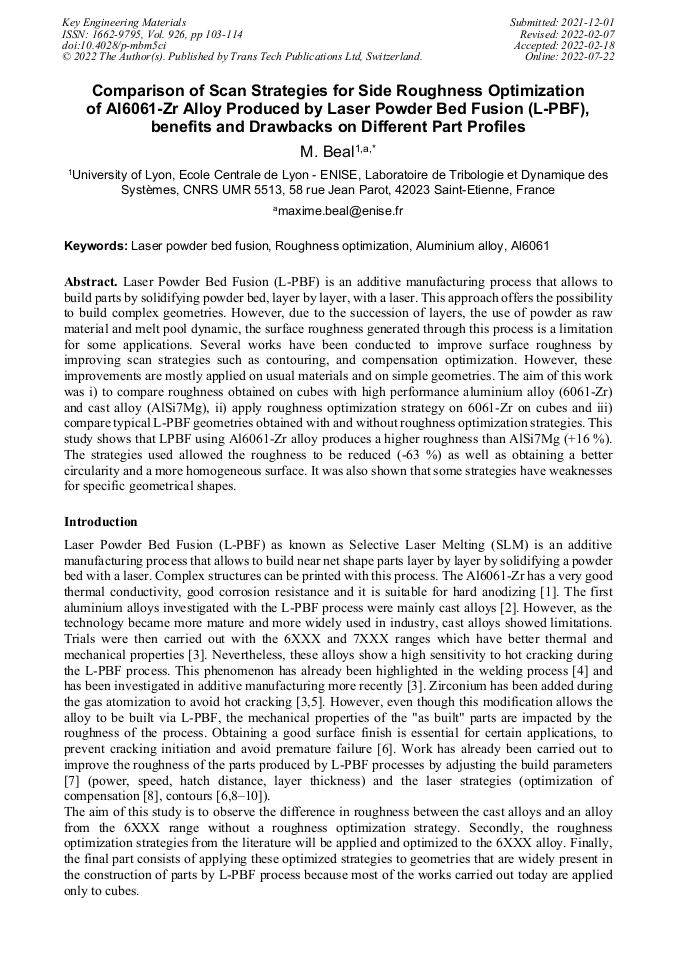

Comparison of Scan Strategies for Side Roughness Optimization of Al6061-Zr Alloy Produced by Laser Powder Bed Fusion (L-PBF), Benefits and Drawbacks on Different Part Profiles

Abstract:

Laser Powder Bed Fusion (L-PBF) is an additive manufacturing process that allows to build parts by solidifying powder bed, layer by layer, with a laser. This approach offers the possibility to build complex geometries. However, due to the succession of layers, the use of powder as raw material and melt pool dynamic, the surface roughness generated through this process is a limitation for some applications. Several works have been conducted to improve surface roughness by improving scan strategies such as contouring, and compensation optimization. However, these improvements are mostly applied on usual materials and on simple geometries. The aim of this work was i) to compare roughness obtained on cubes with high performance aluminium alloy (6061-Zr) and cast alloy (AlSi7Mg), ii) apply roughness optimization strategy on 6061-Zr on cubes and iii) compare typical L-PBF geometries obtained with and without roughness optimization strategies. This study shows that LPBF using Al6061-Zr alloy produces a higher roughness than AlSi7Mg (+16 %). The strategies used allowed the roughness to be reduced (-63 %) as well as obtaining a better circularity and a more homogeneous surface. It was also shown that some strategies have weaknesses for specific geometrical shapes.

• Periodical: Key Engineering Materials (Volume 926)
• Pages: 103-114
• DOI: https://doi.org/10.4028/p-mbm5ci
• Online since: July 2022
• Authors: Maxime Beal*
• Keywords: Al6061, Aluminum Alloy, Laser Powder Bed Fusion, Roughness Optimization

References

[1] A.K. Lakshminarayanan, V. Balasubramanian, K. Elangovan, Effect of welding processes on tensile properties of AA6061 aluminium alloy joints, Int. J. Adv. Manuf. Technol. 40 (2009) 286–296. https://doi.org/10.1007/s00170-007-1325-0.

DOI: 10.1007/s00170-007-1325-0

[2] N.T. Aboulkhair, M. Simonelli, L. Parry, I. Ashcroft, C. Tuck, R. Hague, 3D printing of Aluminium alloys : Additive Manufacturing of Aluminium alloys using selective laser melting, Prog. Mater. Sci. 106 (2019) 1–45. https://doi.org/10.1016/j.pmatsci.2019.100578.

DOI: 10.1016/j.pmatsci.2019.100578

[3] J.H. Martin, B.D. Yahata, J.M. Hundley, J.A. Mayer, T.A. Schaedler, T.M. Pollock, 3D printing of high-strength aluminium alloys, Nat. Publ. Gr. 549 (2017) 365–369. https://doi.org/10.1038/nature23894.

DOI: 10.1038/nature23894

[4] C.E. Cross, On the origin of weld solidification cracking, Hot Crack. Phenom. Welds. (2005) 3–18. https://doi.org/10.1007/3-540-27460-X_1.

[5] H. Zhang, H. Zhu, X. Nie, J. Yin, Z. Hu, X. Zeng, Effect of Zirconium addition on crack, microstructure and mechanical behavior of selective laser melted Al-Cu-Mg alloy, Scr. Mater. 134 (2017) 6–10. https://doi.org/10.1016/j.scriptamat.2017.02.036.

DOI: 10.1016/j.scriptamat.2017.02.036

[6] Y. Tian, D. Tomus, P. Rometsch, X. Wu, Influences of processing parameters on surface roughness of Hastelloy X produced by selective laser melting, Addit. Manuf. 13 (2017) 103–112. https://doi.org/10.1016/j.addma.2016.10.010.

DOI: 10.1016/j.addma.2016.10.010

[7] K. Kamarudin, M.S. Wahab, A.A. Raus, A. Ahmed, S. Shamsudin, Benchmarking of dimensional accuracy and surface roughness for AlSi10Mg part by selective laser melting (SLM), AIP Conf. Proc. 1831 (2017). https://doi.org/10.1063/1.4981188.

DOI: 10.1063/1.4981188

[8] E. Masiagutova, F. Cabanettes, A. Sova, M. Cici, G. Bidron, P. Bertrand, Side surface topography generation during laser powder bed fusion of AlSi10Mg, Addit. Manuf. 47 (2021) 102230. https://doi.org/10.1016/j.addma.2021.102230.

DOI: 10.1016/j.addma.2021.102230

[9] T. Yang, T. Liu, W. Liao, E. MacDonald, H. Wei, X. Chen, L. Jiang, The influence of process parameters on vertical surface roughness of the AlSi10Mg parts fabricated by selective laser melting, J. Mater. Process. Technol. 266 (2019) 26–36. https://doi.org/10.1016/j.jmatprotec.2018.10.015.

DOI: 10.1016/j.jmatprotec.2018.10.015

[10] O. Poncelet, M. Marteleur, C. van der Rest, O. Rigo, J. Adrien, S. Dancette, P.J. Jacques, A. Simar, Critical assessment of the impact of process parameters on vertical roughness and hardness of thin walls of AlSi10Mg processed by laser powder bed fusion, Addit. Manuf. 38 (2021) 101801. https://doi.org/10.1016/j.addma.2020.101801.

DOI: 10.1016/j.addma.2020.101801

[11] P. Karimi, C. Schnur, E. Sadeghi, J. Andersson, Contour design to improve topographical and microstructural characteristics of Alloy 718 manufactured by electron beam-powder bed fusion technique, Addit. Manuf. 32 (2020) 101014. https://doi.org/10.1016/j.addma.2019.101014.

DOI: 10.1016/j.addma.2019.101014

[12] A. Majeed, A. Ahmed, A. Salam, M.Z. Sheikh, Surface quality improvement by parameters analysis, optimization and heat treatment of AlSi10Mg parts manufactured by SLM additive manufacturing, Int. J. Light. Mater. Manuf. 2 (2019) 288–295. https://doi.org/10.1016/j.ijlmm.2019.08.001.

DOI: 10.1016/j.ijlmm.2019.08.001

[13] F. Calignano, D. Manfredi, E.P. Ambrosio, L. Iuliano, P. Fino, Influence of process parameters on surface roughness of aluminum parts produced by DMLS, Int. J. Adv. Manuf. Technol. 67 (2013) 2743–2751. https://doi.org/10.1007/s00170-012-4688-9.

DOI: 10.1007/s00170-012-4688-9

[14] D. Bhaduri, P. Penchev, S. Dimov, K. Essa, L.N. Carter, C.I. Pruncu, J. Jiang, D. Pullini, On the surface integrity of additive manufactured and post-processed AlSi10Mg parts, Procedia CIRP. 87 (2020) 339–344. https://doi.org/10.1016/j.procir.2020.02.093.

DOI: 10.1016/j.procir.2020.02.093

[15] M. Leary, M. Mazur, J. Elambasseril, M. McMillan, T. Chirent, Y. Sun, M. Qian, M. Easton, M. Brandt, Selective laser melting (SLM) of AlSi12Mg lattice structures, Mater. Des. 98 (2016) 344–357. https://doi.org/10.1016/j.matdes.2016.02.127.

DOI: 10.1016/j.matdes.2016.02.127

[16] T. Yang, T. Liu, W. Liao, E. MacDonald, H. Wei, X. Chen, L. Jiang, The influence of process parameters on vertical surface roughness of the AlSi10Mg parts fabricated by selective laser melting, J. Mater. Process. Technol. 266 (2019) 26–36. https://doi.org/10.1016/j.jmatprotec.2018.10.015.

DOI: 10.1016/j.jmatprotec.2018.10.015
