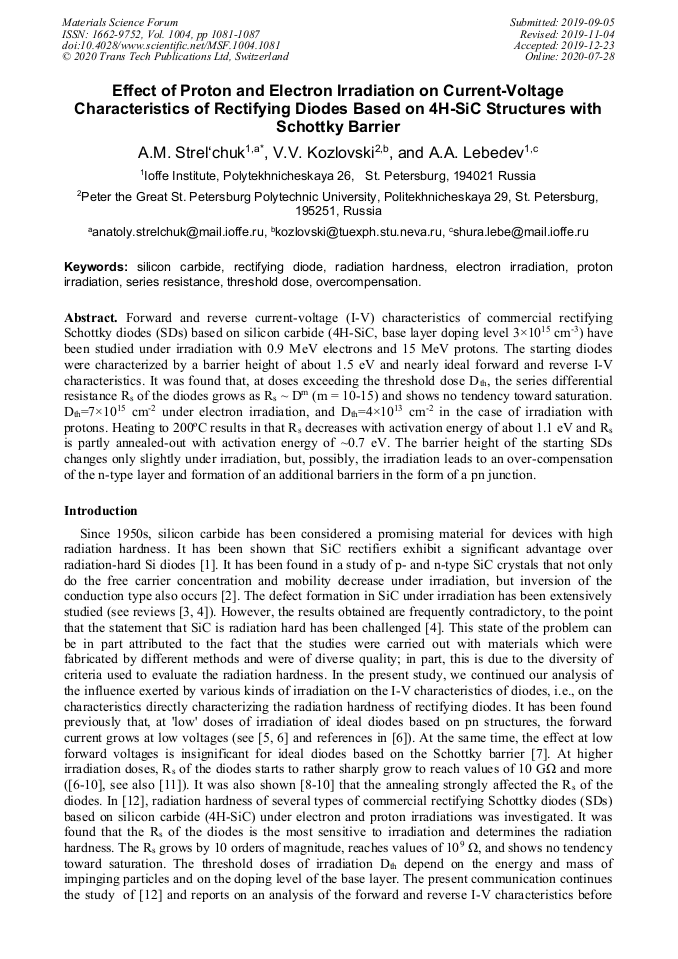

Effect of Proton and Electron Irradiation on Current-Voltage Characteristics of Rectifying Diodes Based on 4H-SiC Structures with Schottky Barrier

Abstract:

Forward and reverse current-voltage (I-V) characteristics of commercial rectifying Schottky diodes (SDs) based on silicon carbide (4H-SiC, base layer doping level 3·10¹⁵ cm^-3) have been studied under irradiation with 0.9 MeV electrons and 15 MeV protons. The starting diodes were characterized by a barrier height of ~1.5 eV and nearly ideal forward and reverse I-V characteristics. It was found that, at doses exceeding the threshold dose D_th, the series differential resistance R_s of the diodes grows as R_s ~ D^m (m = 10-15) and shows no tendency toward saturation. D_th ≈7·10¹⁵ cm^-2 under electron irradiation, and D_th ≈ 4·10¹³ cm^-2 in the case of irradiation with protons. Heating to 200oC results in that R_s decreases with activation energy of ~1.1 eV and R_s is partly annealed-out with activation energy of ~0.7 eV. The starting Schottky diodes changes only slightly under irradiation, but, possibly, the irradiation leads to an over-compensation of the n-type layer and formation of an additional barrier in the form of a pn junction.

• Periodical: Materials Science Forum (Volume 1004)
• Pages: 1081-1087
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1004.1081
• Online since: July 2020
• Authors: Anatoly M. Strel'chuk*, Vitalii V. Kozlovski, Alexander A. Lebedev
• Keywords: Electron Irradiation, Overcompensation, Proton Irradiation, Radiation Hardness, Rectifying Diode, Series Resistance, Silicon Carbide, Threshold Dose

References

[1] L.W. Aukerman, H.C. Gorton, R.K. Willardson, V.E. Bryson major, Effects of fast neutrons on silicon carbide, in: J.R. O'Connor, J. Smiltens J. (Eds.), Silicon carbide a high temperature semiconductor. Proc. Of the Conf. on Silicon Carbide, Pergamon press, 1960, pp.388-394.

[2] Yu.N. Nikolaev, Electrical properties of silicon carbide irradiated in a reactor, Elektr. Tekhnika, Ser. 2, Poluprovodn. Pribory 3 (1966) 54-62 (in Russian).

[3] E.V. Kalinina, The effect of irradiation on the properties of SiC and devices based on this compound, Semiconductors 41 (2007) 769-805.

[4] A.A. Lebedev, Radiation Effects in Silicon Carbide, MRF LLC 6, Millersville, PA, (2017).

[5] V.V. Evstropov, A.M. Strel'chuk, A.L. Syrkin, V.E. Chelnokov. The effect of neutron irradiation on current in SiC pn structures, Inst. of Physics Conf. Ser.N137 (1994) 589-592.

[6] A. M. Strel'chuk, V. T. Gromov, V. V. Zelenin, A. N. Kuznetsov, A. A. Lebedev, N. G. Orlov, N. S. Savkina, and V. P. Shukailo, Effect of neutron irradiation on current-voltage characteristics of packaged diodes based on 6H-SiC pn structures, Mater. Sci. Forum 897 (2017) 459-462.

DOI: 10.4028/www.scientific.net/msf.897.459

[7] A.M. Strel'chuk, V.V. Zelenin, A.N. Kuznetsov, J. Tringe, A.V. Davydov and А.А. Lebedev, Anomalous scatter of forward current – voltage characteristics of He+ - irradiated Ni/4H-SiC Schottky diodes, Mater. Sci. Forum 858 (2016) 749-752.

DOI: 10.4028/www.scientific.net/msf.858.749

[8] A.M. Strel'chuk, А.А. Lebedev, V.V. Kozlovski, N. S. Savkina, D.V. Davydov, V.V. Solov'ev, M.G. Rastegaeva, Doping of 6H-SiC pn structures by proton irradiation, Nuclear Instr. And Methods in Physics Research B 147 (1999) 74-78.

DOI: 10.1016/s0168-583x(98)00581-3

[9] E.V. Kalinina, G.F. Kholuyanov, D.V. Davydov, A.M. Strel'chuk, A. Hallen, A.O. Konstantinov, V.V. Luchinin, A.Yu. Nikiforov, Effect of irradiation with fast neutrons on electrical characteristics of devices based on CVD 4H-SiC epitaxial layers, Semiconductors 37 (2003) 1229-1233.

DOI: 10.1134/1.1619523

[10] E.V. Kalinina, V.G. Kossov, R.R. Yafaev, A.M. Strel'chuk, G.N. Violina, A high-temperature radiation-resistant rectifier based on p+n junctions in 4H-SiC ion-implanted with aluminum, Semiconductors 44 (2010) 807-816.

DOI: 10.1134/s1063782610060151

[11] J. Vobecky, P. Hazdra, S. Popelka, R.K. Sharma, Impact of electron irradiation on the on-state characteristics of 4H-SiC JBS diode, IEEE Transactions on el.devices 62 (2015) 1964-1969.

DOI: 10.1109/ted.2015.2421503

[12] A.M. Strel'chuk, V.V. Kozlovski, and A.A. Lebedev, Radiation-induced damage of silicon-carbide diodes by high-energy particles, Semiconductors 52 (2018) 1651-1655.

DOI: 10.1134/s1063782618130171

[13] E.H. Rhoderick, Metal-semiconductor contacts, Moscow, 1982 (Russian translation).
