1.2 kV, 10 A, 4H-SiC Bi-Directional Field Effect Transistor (BiDFET) with Low On-State Voltage Drop

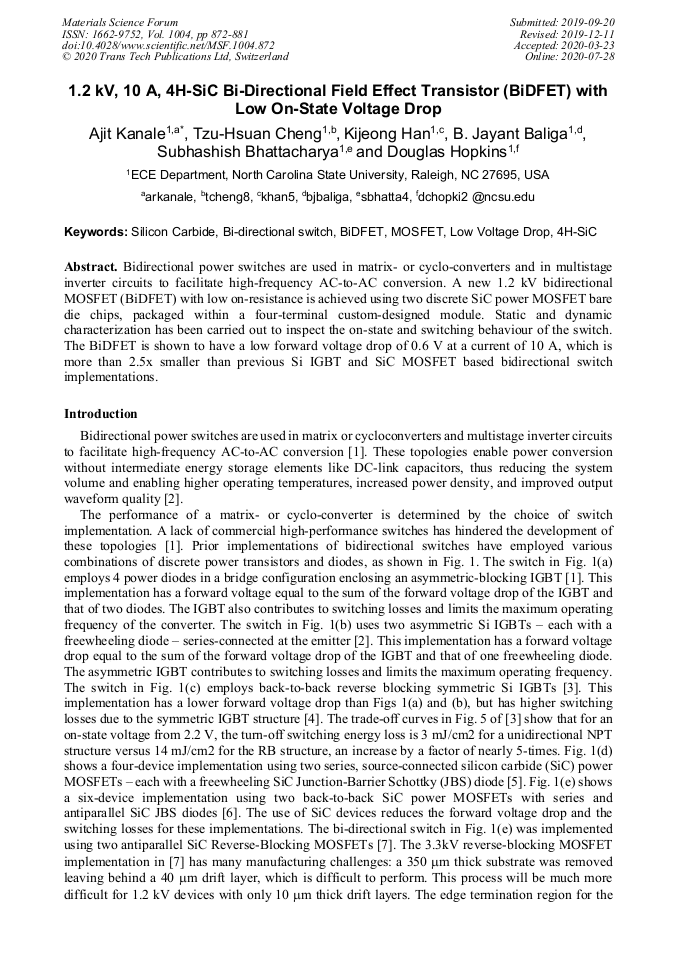

Article Preview

Abstract:

Bidirectional power switches are used in matrix-or cyclo-converters and in multistage inverter circuits to facilitate high-frequency AC-to-AC conversion. A new 1.2 kV bidirectional MOSFET (BiDFET) with low on-resistance is achieved and demonstrated using two discrete SiC power MOSFET bare die chips, packaged within a four-terminal custom-designed module. Static and dynamic characterization has been carried out to inspect the on-state and switching behaviour of the BiDFET. The BiDFET is shown to have a low forward voltage drop of 0.6 V at a current of 10 A, which is more than 2.5x smaller than previous Si IGBT and SiC MOSFET based bidirectional switch implementations.

You might also be interested in these eBooks
Silicon Carbide and Related Materials 2019 View Preview

Info:

Periodical:

Materials Science Forum (Volume 1004)

Pages:

872-881

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.1004.872

Citation:

Cite this paper

Online since:

July 2020

Authors:

Ajit Kanale*, Tzu Hsuan Cheng, Ki Jeong Han, B. Jayant Baliga, Subhashish Bhattacharya, Douglas Hopkins

Keywords:

4H-SiC, BiDFET, Bi-Directional Switch, Low Voltage Drop, MOSFET, Silicon Carbide
