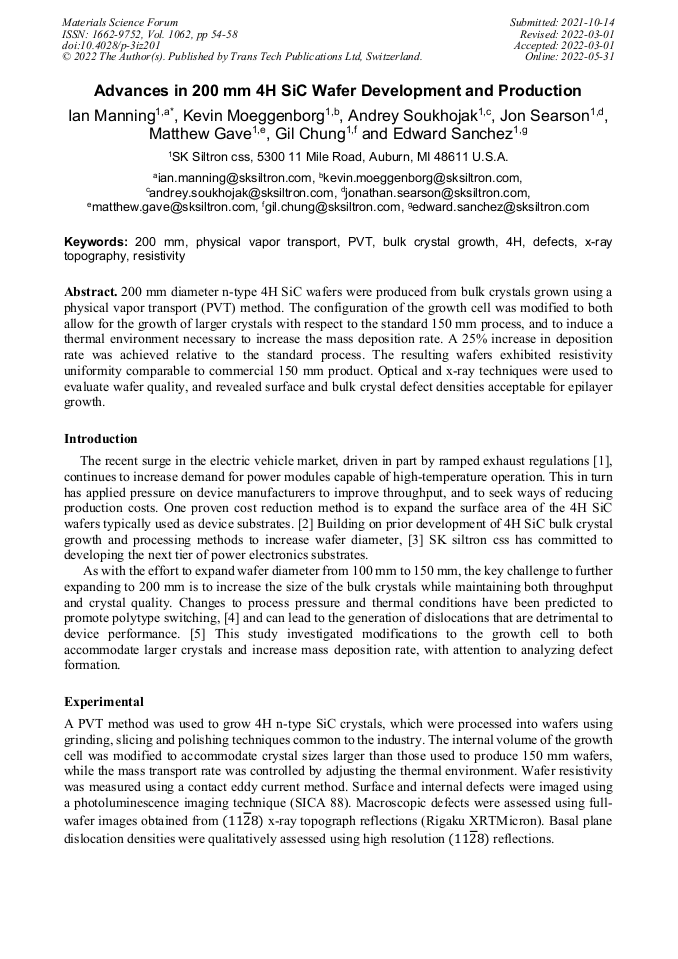

Advances in 200 mm 4H SiC Wafer Development and Production

Abstract:

200 mm diameter n-type 4H SiC wafers were produced from bulk crystals grown using a physical vapor transport (PVT) method. The configuration of the growth cell was modified to both allow for the growth of larger crystals with respect to the standard 150 mm process, and to induce a thermal environment necessary to increase the mass deposition rate. A 25% increase in deposition rate was achieved relative to the standard process. The resulting wafers exhibited resistivity uniformity comparable to commercial 150 mm product. Optical and x-ray techniques were used to evaluate wafer quality, and revealed surface and bulk crystal defect densities acceptable for epilayer growth.

By email View Pdf

You have full access to the following eBook

Silicon Carbide and Related Materials 2021

Read eBook

Info:

Periodical:

Materials Science Forum (Volume 1062)

Pages:

54-58

DOI:

https://doi.org/10.4028/p-3iz201

Citation:

Cite this paper

Online since:

May 2022

Authors:

Ian Manning*, Kevin Moeggenborg, Andrey Soukhojak, Jon Searson, Matthew Gave, Gil Chung, Edward Sanchez

Keywords:

200 mm, 4H, Bulk Crystal Growth, Defects, Physical Vapor Transport, PVT, Resistivity, X-Ray Topography

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0
