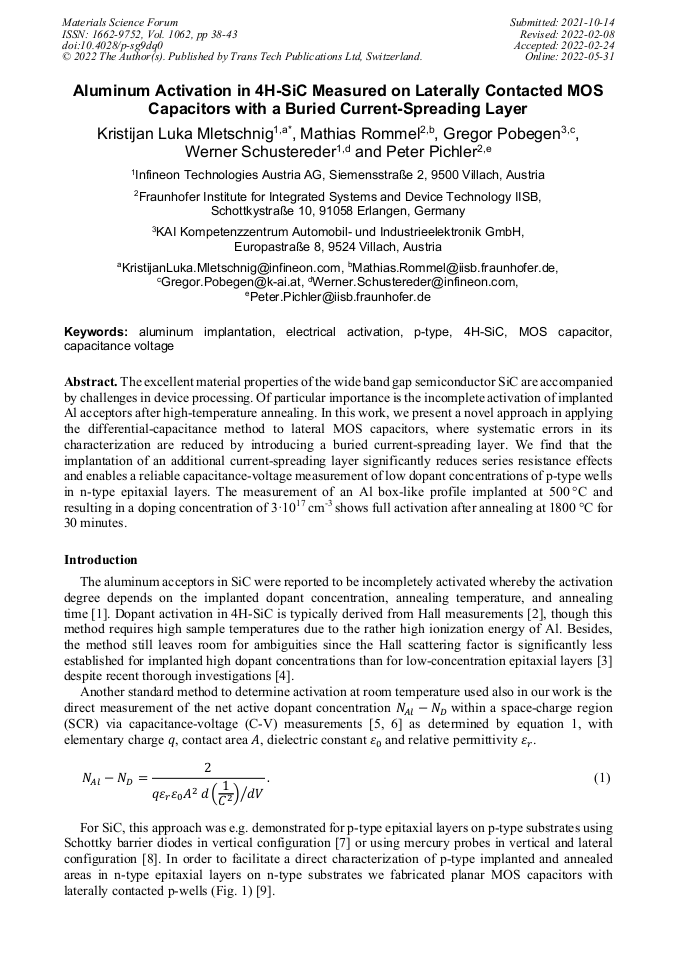

Aluminum Activation in 4H-SiC Measured on Laterally Contacted MOS Capacitors with a Buried Current-Spreading Layer

Abstract:

The excellent material properties of the wide band gap semiconductor SiC are accompanied by challenges in device processing. Of particular importance is the incomplete activation of implanted Al acceptors after high-temperature annealing. In this work, we present a novel approach in applying the differential-capacitance method to lateral MOS capacitors, where systematic errors in its characterization are reduced by introducing a buried current-spreading layer. We find that the implantation of an additional current-spreading layer significantly reduces series resistance effects and enables a reliable capacitance-voltage measurement of low dopant concentrations of p-type wells in n-type epitaxial layers. The measurement of an Al box-like profile implanted at 500 °C and resulting in a doping concentration of 3·10¹⁷ cm^-3shows full activation after annealing at 1800 °C for 30 minutes.

By email View Pdf

You have full access to the following eBook

Silicon Carbide and Related Materials 2021

Read eBook

Info:

Periodical:

Materials Science Forum (Volume 1062)

Pages:

38-43

DOI:

https://doi.org/10.4028/p-sg9dq0

Citation:

Cite this paper

Online since:

May 2022

Authors:

Kristijan Luka Mletschnig*, Mathias Rommel, Gregor Pobegen, Werner Schustereder, Peter Pichler

Keywords:

4H-SiC, Aluminum Implantation, Capacitance Voltage, Electrical Activation, MOS Capacitor, P-Type

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Citation:

* - Corresponding Author

References

[1] V. Šimonka, A. Hossinger, J. Weinbub and S. Selberherr, IEEE T. Electron Dev. 65 (2018) 674-679.

Google Scholar

[2] T. Troffer, M. Schadt, T. Frank, H. Itoh, G. Pensl, J. Heindl, H.P. Strunk and M. Maier, Phys. Status Solidi A 162 (1997) 277-298.

DOI: 10.1002/1521-396x(199707)162:1<277::aid-pssa277>3.0.co;2-c

Google Scholar

[3] S. Asada, T. Okuda, T. Kimoto and J. Suda, Appl. Phys. Express 9 (2016) 041301.

Google Scholar

[4] A. Parisini and R. Nipoti, J. Appl. Phys. 114 (2013) 243703.

Google Scholar

[5] D.K. Schroder, Semiconductor Material and Device Characterization, third ed., John Wiley & Sons, New Jersey, (2006).

Google Scholar

[6] T. Kimoto and J.A. Cooper, Fundamentals of Silicon Carbide Technology: Growth, Characterization, Devices and Applications, John Wiley & Sons, Singapore, (2014).

Google Scholar

[7] T. Kimoto, O. Takemura, H. Matsunami, T. Nakata and M. Inoue, J. Electron. Mater. 27 (1998) 358-364.

Google Scholar

[8] M. Lazar, C. Raynaud, D. Planson, J.-P. Chante, M.-L. Locatelli, L. Ottaviani and P. Godignon, J. Appl. Phys. 94 (2003) 2992-2998.

DOI: 10.1063/1.1598631

Google Scholar

[9] J. Wiley and G. Miller, IEEE T. Electron Dev. 22 (1975) 265-272.

Google Scholar

[10] A.M. Goodman, J. Appl. Phys. 34 (1963) 329-338.

Google Scholar

[11] K. Lehovec, Appl. Phys. Lett. 26 (1975) 82-84.

Google Scholar
