HomeMaterials Science ForumMaterials Science Forum Vol. 1062Performance Analysis of 4H-SiC Pseudo-D CMOS...

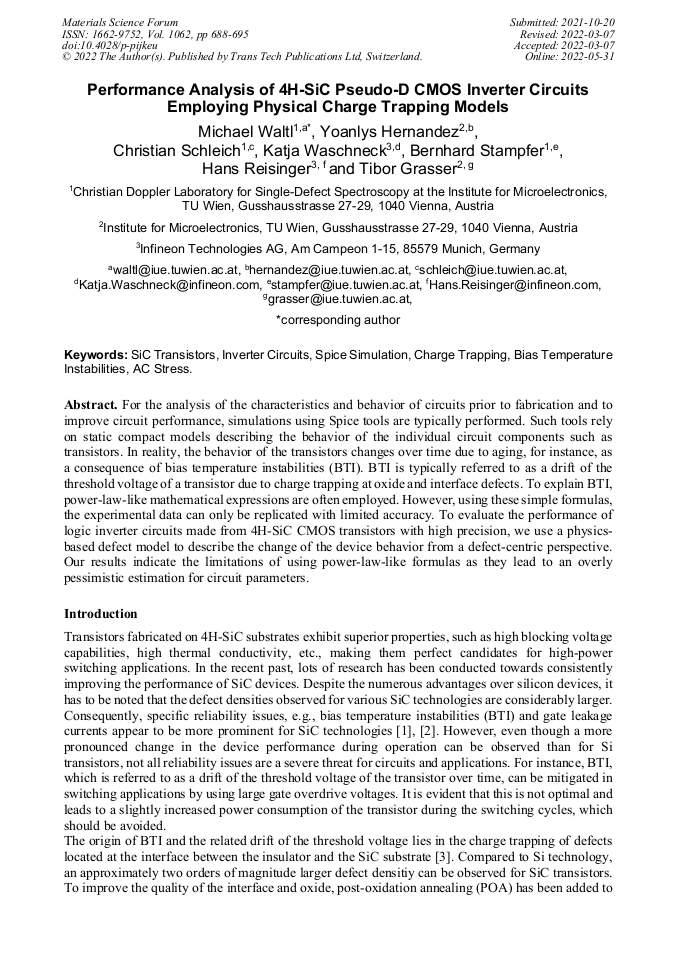

Performance Analysis of 4H-SiC Pseudo-D CMOS Inverter Circuits Employing Physical Charge Trapping Models

Article Preview

Abstract:

For the analysis of the characteristics and behavior of circuits prior to fabrication and to improve circuit performance, simulations using Spice tools are typically performed. Such tools rely on static compact models describing the behavior of the individual circuit components such as transistors. In reality, the behavior of the transistors changes over time due to aging, for instance, as a consequence of bias temperature instabilities (BTI). BTI is typically referred to as a drift of the threshold voltage of a transistor due to charge trapping at oxide and interface defects. To explain BTI, power-law-like mathematical expressions are often employed. However, using these simple formulas, the experimental data can only be replicated with limited accuracy. To evaluate the performance of logic inverter circuits made from 4H-SiC CMOS transistors with high precision, we use a physics-based defect model to describe the change of the device behavior from a defect-centric perspective. Our results indicate the limitations of using power-law-like formulas as they lead to an overly pessimistic estimation for circuit parameters.

By email View Pdf

You have full access to the following eBook

Silicon Carbide and Related Materials 2021

Info:

Periodical:

Materials Science Forum (Volume 1062)

Pages:

688-695

DOI:

https://doi.org/10.4028/p-pijkeu

Citation:

Cite this paper

Online since:

May 2022

Authors:

Michael Waltl*, Yoanlys Hernandez, Christian Schleich, Katja Waschneck, Bernhard Stampfer, Hans Reisinger, Tibor Grasser

Keywords:

AC Stress, Bias Temperature Instability (BTI), Charge Trapping, Inverter Circuits, SiC Transistors, Spice Simulation

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0
