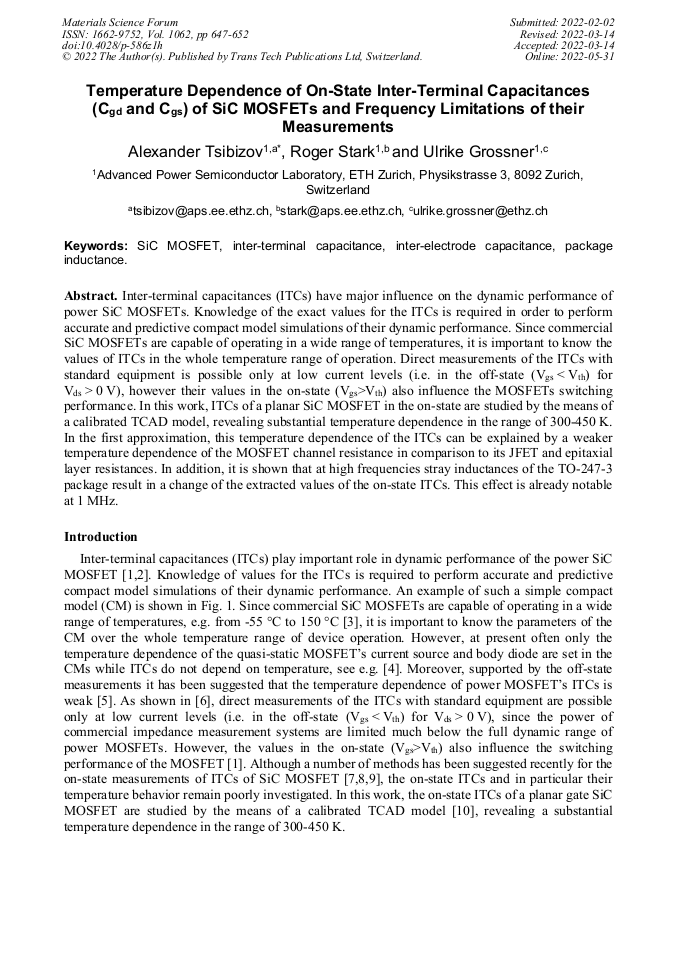

Temperature Dependence of On-State Inter-Terminal Capacitances (C_gd and C_gs) of SiC MOSFETs and Frequency Limitations of their Measurements

Abstract:

Inter-terminal capacitances (ITCs) have major influence on the dynamic performance of power SiC MOSFETs. Knowledge of the exact values for the ITCs is required in order to perform accurate and predictive compact model simulations of their dynamic performance. Since commercial SiC MOSFETs are capable of operating in a wide range of temperatures, it is important to know the values of ITCs in the whole temperature range of operation. Direct measurements of the ITCs with standard equipment is possible only at low current levels (i.e. in the off-state (V_gs < V_th) for V_ds > 0 V), however their values in the on-state (V_gs>V_th) also influence the MOSFETs switching performance. In this work, ITCs of a planar SiC MOSFET in the on-state are studied by the means of a calibrated TCAD model, revealing substantial temperature dependence in the range of 300-450 K. In the first approximation, this temperature dependence of the ITCs can be explained by a weaker temperature dependence of the MOSFET channel resistance in comparison to its JFET and epitaxial layer resistances. In addition, it is shown that at high frequencies stray inductances of the TO-247-3 package result in a change of the extracted values of the on-state ITCs. This effect is already notable at 1 MHz.

• Periodical: Materials Science Forum (Volume 1062)
• Pages: 647-652
• DOI: https://doi.org/10.4028/p-586z1h
• Online since: May 2022
• Authors: Alexander Tsibizov*, Roger Stark, Ulrike Grossner
• Keywords: Inter-Electrode Capacitance, Inter-Terminal Capacitance, Package Inductance, SiC MOSFET

References

[1] C. Salcines, I. Kallfass, H. Kakitani, A. Mikata, Dynamic characterization of the input and reverse transfer capacitances in power MOSFETs under high current conduction, 2016 IEEE Applied Power Electronics Conference and Exposition (APEC), Long Beach, CA, (2016) 2969-2972.

DOI: 10.1109/apec.2016.7468285

[2] R. Stark, I. Kovacevic-Badstübner, A. Tsibizov, B. Kakarla, Y. Ju, B. Jaeger, T. Ziemann, U. Grossner, Analysis of parameters determining nominal dynamic performance of 1.2 kV SiC power MOSFETs, Proc. of IEEE 30th Int. Symp. on Power Semiconductor Devices and ICs (ISPSD), (2018) 407–410.

DOI: 10.1109/ispsd.2018.8393689

[3] Wolfspeed, C2M0080120D Silicon Carbide Power MOSFET, Rev. D, 09-2019. [Online]. Available: https://www.wolfspeed.com/media/downloads/167/C2M0080120D.pdf.

[4] H. Li, Xingran Zhao, Kai Sun, Z. Zhao, G. Cao, T. Zheng. A Non-Segmented PSpice Model of SiC mosfet With Temperature-Dependent Parameters, IEEE Trans. Power Electron. 34, (2019) 4603-4612.

DOI: 10.1109/tpel.2018.2865611

[5] S.Y. Liu, Y.F. Jiang, W.J. Sung, X.Q. Song, B.J. Baliga, W.F. Sun, A.Q. Huang, Understanding High Temperature Static and Dynamic Characteristics of 1.2 kV SiC Power MOSFETs, Materials Science Forum 897, (2017) 501–504.

DOI: 10.4028/www.scientific.net/msf.897.501

[6] T. Funaki, N. Phankong, T. Kimoto, T. Hikihara, Measuring Terminal Capacitance and Its Voltage Dependency for High-Voltage Power Devices, IEEE Trans. Power Electron. 24, (2009) 1486-1493.

DOI: 10.1109/tpel.2009.2016566

[7] C. Salcines, B. Holzinger, I. Kallfass, Characterization of Intrinsic Capacitances of Power Transistors Under High Current Conduction Based on Pulsed S-Parameter Measurements, 2018 IEEE 6th Workshop on Wide Bandgap Power Devices and Applications (WiPDA), Atlanta, GA, (2018) 180-184.

DOI: 10.1109/wipda.2018.8569185

[8] H. Sakairi, T. Yanagi, H. Otake, N. Kuroda and H. Tanigawa, Measurement Methodology for Accurate Modeling of SiC MOSFET Switching Behavior Over Wide Voltage and Current Ranges,, IEEE Trans. Power Electron. 33, (2018) 7314-7325.

DOI: 10.1109/tpel.2017.2764632

[9] C. Deml, K. Hoffmann, Gate-drain capacitance behaviour of the DMOS power transistor under high current flow, PESC 98 Record. 29th Annual IEEE Power Electronics Specialists Conference (Cat. No.98CH36196), Fukuoka, vol.2, (1998) 1716-1719.

DOI: 10.1109/pesc.1998.703412

[10] A. Tsibizov, I. Kovačević-Badstübner, B. Kakarla, U. Grossner, Accurate Temperature Estimation of SiC Power mosfets Under Extreme Operating Conditions, IEEE Trans. Power Electron. 35, (2020) 1855-1865.

DOI: 10.1109/tpel.2019.2917221

[11] I. Kovačević-Badstübner, U. Grossner, D. Romano, G. Antonini, J. Ekman, A more accurate electromagnetic modeling of WBG power modules, 2018 IEEE 30th International Symposium on Power Semiconductor Devices and ICs (ISPSD), Chicago, IL, (2018) 260-263.

DOI: 10.1109/ispsd.2018.8393652

[12] D. E. Ward, R. W. Dutton, A Charge-Oriented Model for MOS Transistor Capacitances, IEEE J. Solid-State Circuits 13, (1978) 703–708.

DOI: 10.1109/jssc.1978.1051123

[13] J. Müting, U. Grossner, Simulation-Based Sensitivity Analysis of Conduction and Switching Losses for Silicon Carbide Power MOSFETs, Materials Science Forum 924, (2018) 693-696.

DOI: 10.4028/www.scientific.net/msf.924.693

[14] C. M. Liu, J. B. Kuo, Quasi-Saturation Capacitance Behavior of a DMOS Device, IEEE Trans. Electron Devices 44, (1997) 1117–1123.

DOI: 10.1109/16.595939
