Quantitative Analysis of Excess Minority Carrier Density and Critical Duration in UV Irradiation-Based Screening for Bipolar Degradation in 4H-SiC

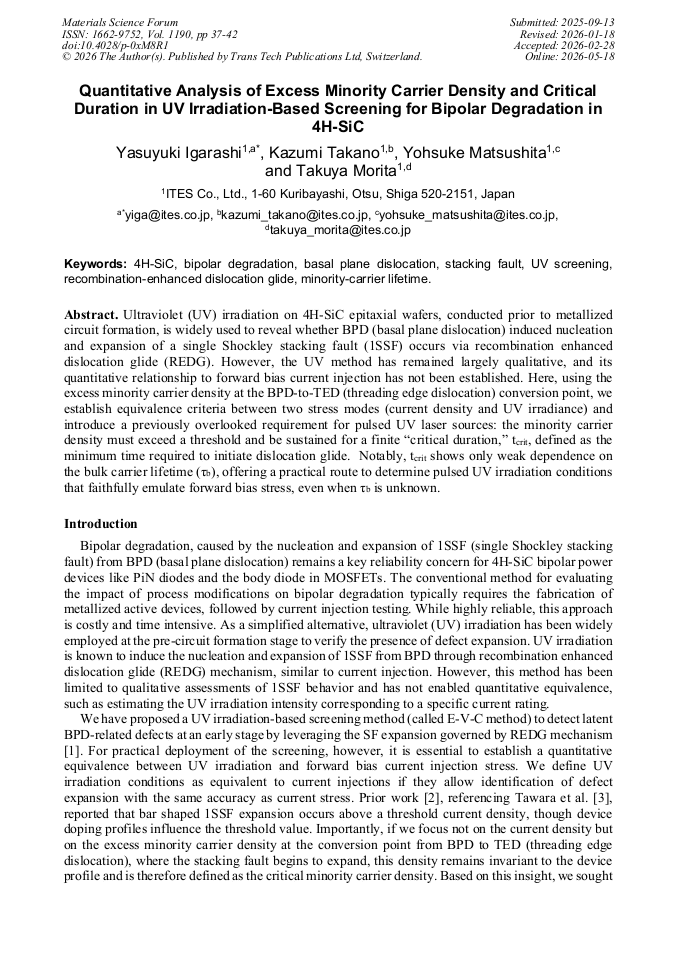

Article Preview
View Pdf By email

Abstract:

Ultraviolet (UV) irradiation on 4H-SiC epitaxial wafers, conducted prior to metalized circuit formation, is widely used to reveal whether BPD (basal plane dislocation) induced nucleation and expansion of a single Shockley stacking fault (1SSF) occurs or not via recombination enhanced dislocation glide (REDG). However, the UV method has remained largely qualitative, and its quantitative relationship to forward bias current injection has not been established. Here, using the excess minority carrier density at the BPD-to-TED (threading edge dislocation) conversion point, we establish equivalence criteria between two stress modes (current density and UV irradiance) and introduce a previously overlooked requirement for pulsed UV laser sources: the minority carrier density must exceed a threshold and be sustained for a finite “critical duration,” tcrit. Notably, tcrit shows only weak dependence on the bulk carrier lifetime (τb), offering a practical route to determine pulsed UV irradiation conditions that faithfully emulate forward bias stress, even when τb is unknown.

You have full access to the following eBook
Stacking Faults Read eBook

Info:

Periodical:

Materials Science Forum (Volume 1190)

Pages:

37-42

DOI:

https://doi.org/10.4028/p-0xM8R1

Citation:

Cite this paper

Online since:

May 2026

Authors:

Yasuyuki Igarashi*, Kazumi Takano, Yohsuke Matsushita, Takuya Morita

Keywords:

4H-SiC, Basal Plane Dislocation (BPD), Bipolar Degradation, Minority-Carrier Lifetime, Recombination-Enhanced Dislocation Glide, Stacking Fault, UV Screening

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] Y. Igarashi, K. Takano, Y. Matsushita, C. Shibata, Defect and Diffusion Forum, vol. 425, p.75, 2023.

Google Scholar

[2] Y. Igarashi, K. Takano, Y. Matsushita, C. Shibata, Defect and Diffusion Forum, vol. 434, p.23, 2024.

Google Scholar

[3] T. Tawara, S. Matsunaga, T. Fujimoto, M. Ryo, M. Miyazato, T. Miyazawa, K. Takenaka, M. Miyajima, A. Otsuki, Y. Yonezawa, T. Kato, H. Okumura, T. Kimoto, and H. Tsuchida, J. Appl. Phys., vol. 123, 025707, 2018.

DOI: 10.1063/1.5009365

Google Scholar

[4] T. Tawara, T. Miyazawa, M. Ryo, M. Miyazato, T. Fujimoto, K. Takenaka, S. Matsunaga, M. Miyajima, A. Otsuki, Y. Yonezawa, T. Kato, H. Okumura, T. Kimoto, H. Tsuchida, J. Appl. Phys. 120, 115101 (2016).

DOI: 10.1063/1.4962717

Google Scholar

[5] A. Y. Polyakov, Q. Li, S. Wook Huh, M. Skowronski, O. Lopatiuk, L. Chernyak, and E. Sanchez, J. Appl. Phys. 97, 053703 2005.

Google Scholar

[6] W. A. Doolittle, A. Rohatghi, R. Ahrienkel, D. Levi, G. Augustine, and R. H. Hopkins, Mater. Res. Soc. Symp. Proc. 483, 197 1998.

Google Scholar
