Investigation of Spoke Pattern of Stacking Faults in 4H-SiC Wafers Grown by Physical Vapor Transport Method

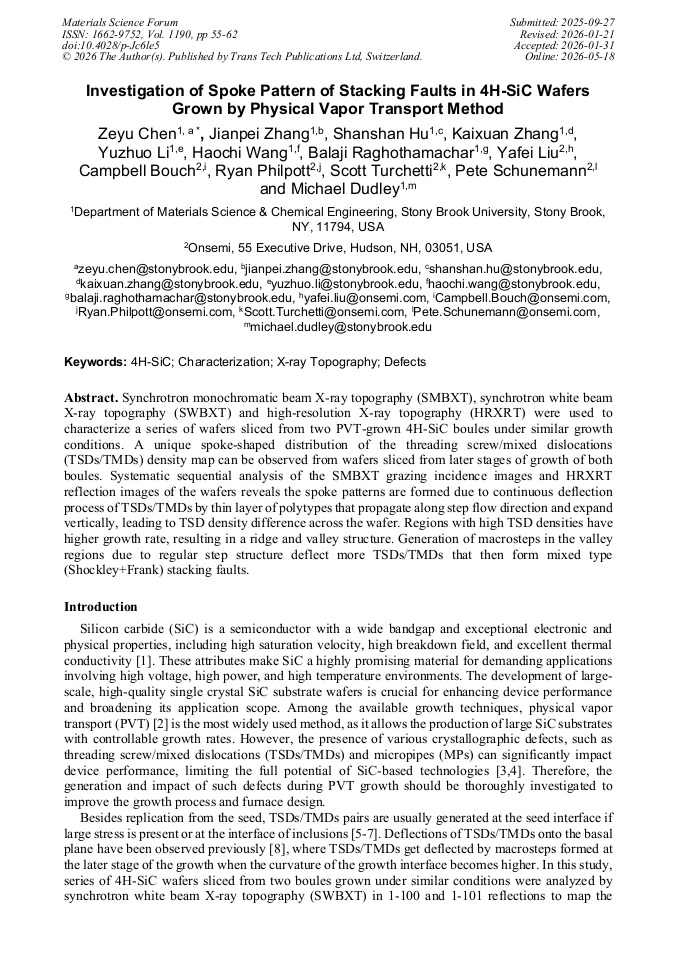

Article Preview

View Pdf By email

Abstract:

Synchrotron monochromatic beam X-ray topography (SMBXT), synchrotron white beam X-ray topography (SWBXT) and high-resolution X-ray topography (HRXRT) were used to characterize a series of wafers sliced from two PVT-grown 4H-SiC boules under similar growth conditions. A unique spoke-shaped distribution of the threading screw/mixed dislocations (TSDs/TMDs) density map can be observed from wafers sliced from later stages of growth of both boules. Systematic sequential analysis of the SMBXT grazing incidence images and HRXRT reflection images of the wafers reveals the spoke patterns are formed due to continuous deflection process of TSDs/TMDs by thin layer of polytypes that propagate along step flow direction and expand vertically, leading to TSD density difference across the wafer. Regions with high TSD densities have higher growth rate, resulting in a ridge and valley structure. Generation of macrosteps in the valley regions due to regular step structure deflect more TSDs/TMDs that then form mixed type (Shockley+Frank) stacking faults.

You have full access to the following eBook

Stacking Faults

Info:

Periodical:

Materials Science Forum (Volume 1190)

Pages:

55-62

DOI:

https://doi.org/10.4028/p-Jc6le5

Citation:

Cite this paper

Online since:

May 2026

Authors:

Ze Yu Chen*, Jian Pei Zhang, Shan Shan Hu, Kai Xuan Zhang, Yu Zhuo Li, Hao Chi Wang, Balaji Raghothamachar, Ya Fei Liu, Campbell Bouch, Ryan Philpott, Scott Turchetti, Pete Schunemann, Michael Dudley

Keywords:

4H-SiC, Characterization, Defects, X-Ray Topography

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

[1] A.A. Lebedev and V.E. Chelnokov, Semiconductors 33, 999–1001 (1999).

[2] Y. M. Tairov and V.F. Tsvetkov, Journal of Crystal Growth 43(2), 209-212 (1978)

[3] P. Bergmanet al, Mater. Sci. Forum 353-356, 299-302 (2001)

[4] P. G.Neudeck et al, Solid-State Electronics 42(12), 2157-2164 (1998).

[5] M. Dudley; X. R. Huang; W. Huang; A. Powell; S. Wang; P. Neudeck; M. Skowronski, Appl. Phys. Lett. 75, 784–786 (1999)

[6] Tsunenobu, K.; Cooper, J. A., Fundamentals of Silicon Carbide Technology: Growth, Characterization, Devices and Applications; Wiley, 2014.

[7] J. Li, G. Yang, X. Liu, H. Luo, L. Xu, Y. Zhang, C. Cui, X. Pi, D. Yang and R. Wang, J. Phys. D: Appl. Phys. 55 463001(2022)

DOI: 10.1088/1361-6463/ac8a58

[8] Q. Y. Cheng, H. Y. Peng, Z. Y. Chen, S. Hu, Y. Liu, B. Raghothamachar, M. Dudley, Defect and Diffusion Forum, 426, 57-64 (2023)

[9] M. Dudley, H.H. Wang, F.Z. Wu, S.Y. Byrapa, B. Raghothamachar, G. Choi, E. Sanchez, D.M. Hansen, R. Drachev, S.G. Mueller, Mater. Sci. Forum 679, 269-272(2011)

DOI: 10.4028/www.scientific.net/msf.679-680.269

[10] Y. Yang, J. Guo, O. Goue, B. Raghothamachar, M. Dudley, G. Chung, E. Sanchez, J. Quast, I. Manning, D. Hansen, J. Electron. Mater. 45, 2066-2070 (2016)

DOI: 10.1007/s11664-016-4378-8

[11] J. P. Bergman, H. Lendenmann, P. A. Nilsson, U. Lindefelt and P. Skytt: Mat. Sci. Forum, 353-356 299(2001)

DOI: 10.4028/www.scientific.net/msf.353-356.299

[12] A. Galeckas, J. Linnros, P. Pirouz, Appl. Phys. Lett. 81 883. (2002)

[13] A. Agarwal, H. Fatima, S. Haney, S. H. Ryu, IEEE Elec. Dev. Lett. 28, 587. (2007)

[14] N.A. Mahadik, M. Dudley, B. Raghothamachar, Z. Chen, R.E. Stahlbush, M. Hinojosa, A. Lelis, W. Sung, Materials & Design, 248 113435 (2024)

DOI: 10.1016/j.matdes.2024.113435

[15] H. Peng, T. Ailihumaer, Y. Liu, B. Raghothamachar, X. Huang, L. Assoufid, M. Dudley. Journal of Applied Crystallography 54, 1225-1233 (2021)

[16] T. Ailihumaer, H. Peng, Y. Liu, B. Raghothamachar, M. Dudley, G. Chung, I. Manning and E. Sanchez, J. Electron. Mater. 50, 3258–3265 (2021)

[17] M. Dudley, F. Wu; H. Wang, S. Byrappa, B. Raghothamachar, G. Choi, S. Sun, E. K. Sanchez, D. Hansen, R. Drachev, S. G. Mueller and M. J. Loboda, Appl. Phys. Lett. 98, 232110 (2011)

[18] WK Burton, N Cabrera, FC Frank, Philosophical Transactions of the Royal Society of London. Series A, Mathematical and Physical Sciences 243.866, 299-358 (1951).

[19] M. Sonoda, T. Nakano, K. Shioura, N. Shinagawa, N. Ohtani, Journal of Crystal Growth, 499 24-29 (2018).
