Micropipes in SiC Die Observed by Molten KOH Etching

Article Preview
View Pdf By email

Abstract:

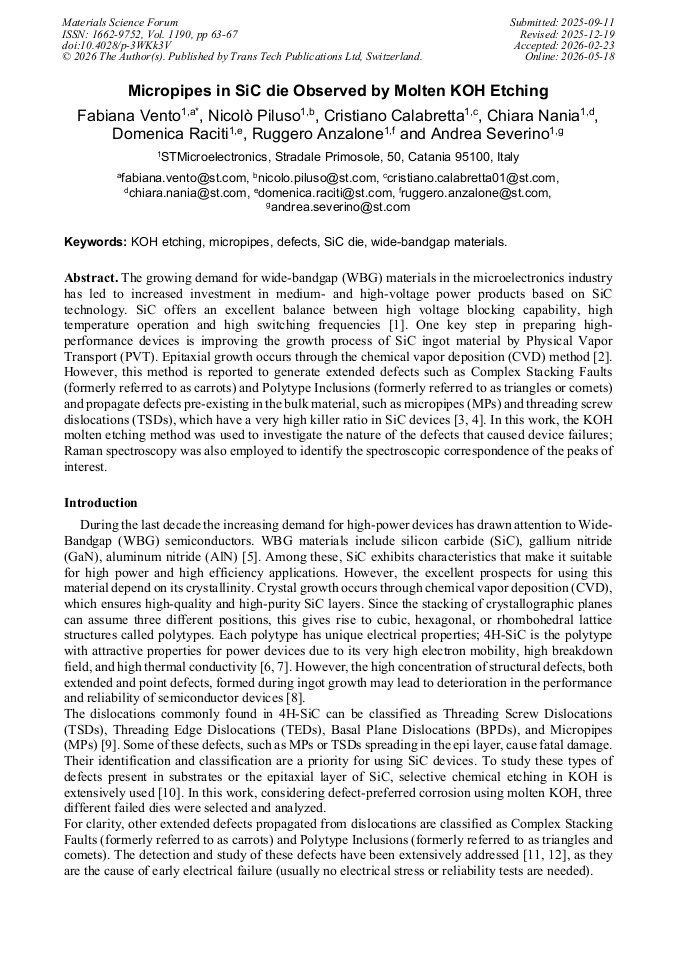

The growing demand for wide-bandgap (WBG) materials in the microelectronics industry has led to increased investment in medium- and high-voltage power products based on SiC technology. SiC offers an excellent balance between high voltage blocking capability, high temperature operation and high switching frequencies [1]. One key step in preparing high-performance devices is improving the growth process of SiC ingot material by Physical Vapor Transport (PVT). Epitaxial growth occurs through the chemical vapor deposition (CVD) method [2]. However, this method is reported to generate extended defects such as Complex Stacking Faults (formerly referred to as carrots) and Polytype Inclusions (formerly referred to as triangles or comets) and propagate defects pre-existing in the bulk material, such as micropipes (MPs) and threading screw dislocations (TSDs), which have a very high killer ratio in SiC devices [3, 4]. In this work, the KOH molten etching method was used to investigate the nature of the defects that caused device failures; Raman spectroscopy was also employed to identify the spectroscopic correspondence of the peaks of interest.
