Challenges in 1SSF Detection in 4H-SiC Epilayer and Related Failure

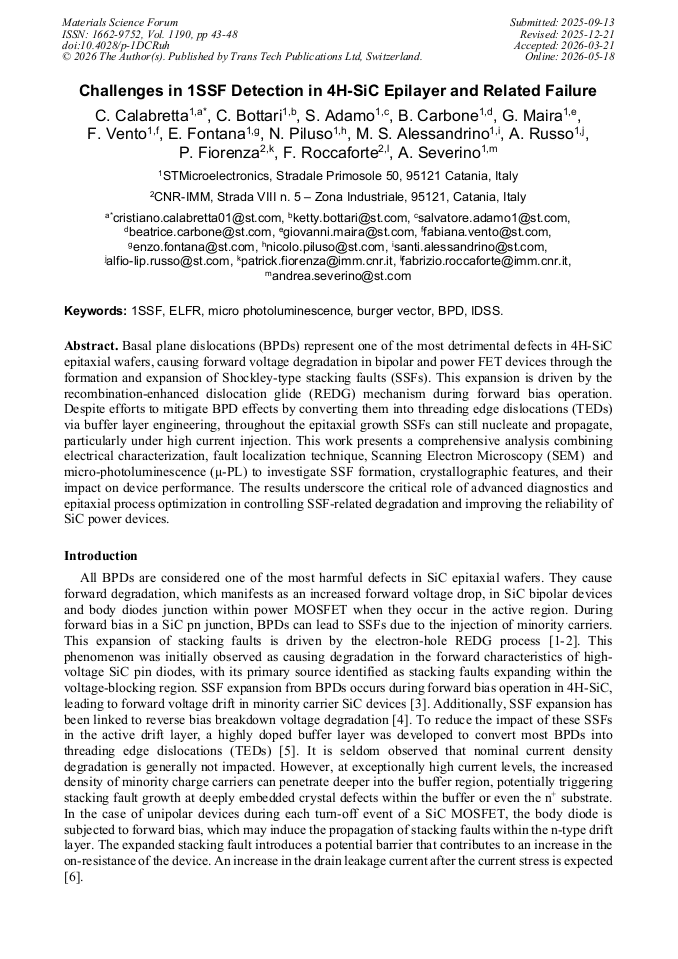

Article Preview

View Pdf By email

Abstract:

Basal plane dislocations (BPDs) represent one of the most detrimental defects in 4H-SiC epitaxial wafers, causing forward voltage degradation in bipolar and power FET devices through the formation and expansion of Shockley-type stacking faults (SSFs). This expansion is driven by the recombination-enhanced dislocation glide (REDG) mechanism during forward bias operation. Despite efforts to mitigate BPD effects by converting them into threading edge dislocations (TEDs) via buffer layer engineering, throughout the epitaxial growth SSFs can still nucleate and propagate, particularly under high current injection. This work presents a comprehensive analysis combining electrical characterization, fault localization technique, Scanning Electron Microscopy (SEM) and micro-photoluminescence (μ-PL) to investigate SSF formation, crystallographic features, and their impact on device performance. The results underscore the critical role of advanced diagnostics and epitaxial process optimization in controlling SSF-related degradation and improving the reliability of SiC power devices.

You have full access to the following eBook

Stacking Faults

Info:

Periodical:

Materials Science Forum (Volume 1190)

Pages:

43-48

DOI:

https://doi.org/10.4028/p-1DCRuh

Citation:

Cite this paper

Online since:

May 2026

Authors:

Cristiano Calabretta*, Cettina Bottari, Salvatore Adamo, Beatrice Carbone, Giovanni Maira, Fabiana Vento, Enzo Fontana, Nicolo Piluso, Mario S. Alessandrino, Alfio Russo, Patrick Fiorenza, Fabrizio Roccaforte, Andrea Severino

Keywords:

1SSF, Basal Plane Dislocation (BPD), Burger Vector, ELFR, IDSS, Micro Photoluminescence

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

[1] Feng, Gan, Jun Suda, and Tsunenobu Kimoto. Physica B: Condensed Matter 404, no. 23-24 :4745-4748, (2009).

DOI: 10.1016/j.physb.2009.08.189

[2] Thierry-Jebali, N., C. Kawahara, T. Miyazawa, H. Tsuchida, and T. Kimoto. AIP Advances 5, no. 3 (2015).

[3] Palanisamy, Shanmuganathan, et al. 2021 IEEE International Reliability Physics Symposium (IRPS). IEEE, (2021).

[4] J Wang, Pin, et al. Materials Science in Semiconductor Processing 177 ,108369, (2024).

[5] Piluso, Nicolo, et al. "High Quality 4H-SiC Epitaxial Layer by Tuning CVD Process." Materials Science Forum. Vol. 963. Trans Tech Publications Ltd, 2019.

DOI: 10.4028/www.scientific.net/msf.963.91

[6] A. Agarwal, H. Fatima, S. Haney, and S. H. Ryu, IEEE Electron Device Lett. 28, 587 (2007).

[7] Piluso, Nicolo, et al. "4H-SiC defects analysis by Micro Raman spectroscopy." Materials Science Forum. Vol. 821. Trans Tech Publications Ltd, 2015.

DOI: 10.4028/www.scientific.net/msf.821-823.335

[8] H. Lendenmann, F. Dahlquist, N. Johansson, R. Söderholm, P.Å. Nilsson, J.P. Bergman, and P. Skytt, Long term operation of 4.5 kV PiN and 2.5 kV JBS diodes, Mater. Sci. Forum 353- 356 (2001), pp.727-730.

DOI: 10.4028/www.scientific.net/msf.353-356.727

[9] H. Jacobson, J. Birch, R. Yakimova, M. Syväjärvi, J.P. Bergman, A. Ellison, T. Tuomi, and E. Janzén, Dislocation evolution in 4H-SiC epitaxial layers, J. Appl. Phys. 91 (2002), pp.6354-6360.

DOI: 10.1063/1.1468891

[10] H. Jacobson, J.P. Bergman, C. Hallin, E. Janzén, T. Tuomi, and H. Lendenmann, Properties and origins of different stacking faults that cause degradation in SiC PiN diodes, J. Appl. Phys. 95 (2004), pp.1485-1488.

DOI: 10.1063/1.1635996

[11] S. Ha, M. Benamara, and M. Skowronski, Core structure and properties of partial dislocations in silicon carbide p-i-n diodes, Appl. Phys. Lett. 83 (2003), pp.4957-4959.

DOI: 10.1063/1.1633969

[12] S. Ha, M. Skowronski, and H. Lendenmann, Nucleation sites of recombination-enhanced stacking fault formation in silicon carbide p-i-n diodes, J. Appl. Phys. 96 (2004), pp.393-398.

DOI: 10.1063/1.1756218

[13] Calabretta, Cristiano, et al. "Impact of nitrogen on the selective closure of stacking faults in 3CSiC." Crystal Growth & Design 22.8 (2022): 4996-5003.

DOI: 10.1021/acs.cgd.2c00515

[14] Calabretta, Cristiano, et al. "Exploring crystal recovery and dopant activation in coated laser annealing on ion implanted 4H-SiC epitaxial layers." Materials Science in Semiconductor Processing 174 (2024): 108175.

DOI: 10.1016/j.mssp.2024.108175

[15] Stahlbush, M.E. Twigg, J.J. Sumakeris, K.G. Irvine, and P.A. Losee, Mechanisms of stacking fault growth in SiC PiN diodes, Mater. Res. Soc. Symp. Proc. 815 (2004), p.103.

DOI: 10.1557/proc-815-j6.4

[16] Iijima, Akifumi, et al. Philosophical Magazine 97.30: (2017), 2736-2752.

[17] Kimoto, Tsunenobu, and James A. Cooper. Fundamentals of silicon carbide technology: growth, characterization, devices and applications. John Wiley & Sons, 2014.

DOI: 10.1002/9781118313534

[18] Matsuhata, Hirofumi, et al. "Contrast analysis of Shockley partial dislocations in 4H-SiC observed by synchrotron Berg-Barrett X-ray topography." Philosophical Magazine 94.15 (2014): 1674-1685.

DOI: 10.1080/14786435.2014.894646
