Synchrotron X-Ray Topography Analysis of Low Angle Grain Boundaries Induced by Growth Step Flow in PVT-Grown 4H-SiC Crystals

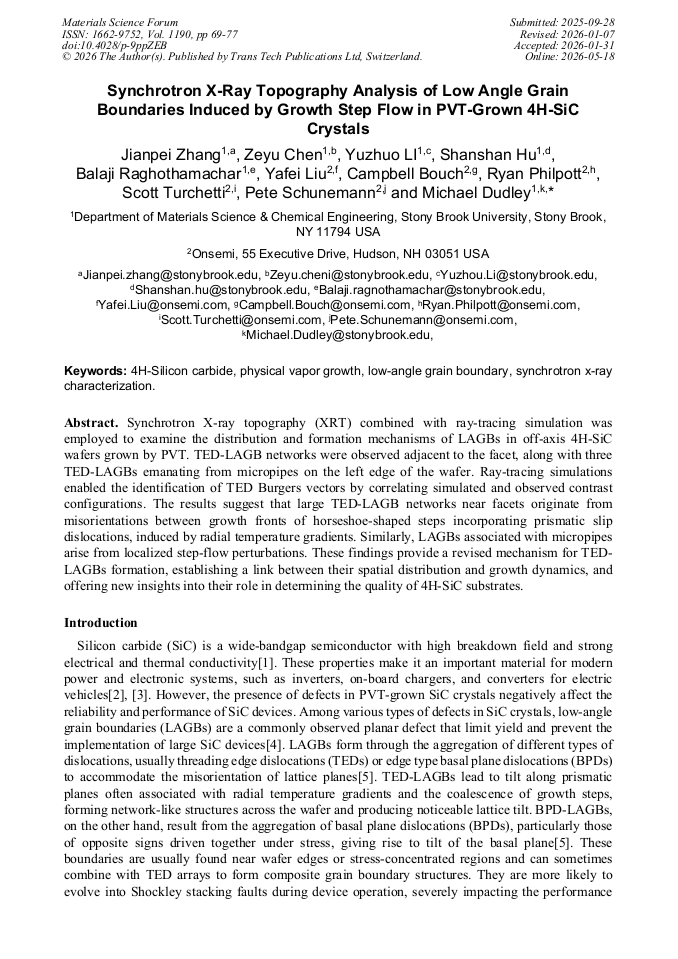

Article Preview
View Pdf By email

Abstract:

Synchrotron X-ray topography (XRT) combined with ray-tracing simulation was employed to examine the distribution and formation mechanisms of LAGBs in off-axis 4H-SiC wafers grown by PVT. Extensive TED-LAGB networks were observed adjacent to the facet, along with three TED-LAGBs emanating from micropipes on the left edge of the wafer. Ray-tracing simulations enabled the identification of TED Burgers vectors by correlating simulated and observed contrast configurations. The results suggest that large TED-LAGB networks near facets originate from misorientations between growth fronts of horseshoe-shaped steps incorporating prismatic slip dislocations, induced by radial temperature gradients. Similarly, LAGBs associated with micropipes arise from localized step-flow perturbations. These findings provide a revised mechanism for TED-LAGBs formation, establishing a link between their spatial distribution and growth dynamics, and offering new insights into their role in determining the quality of 4H-SiC substrates.

You have full access to the following eBook
Stacking Faults Read eBook

Info:

Periodical:

Materials Science Forum (Volume 1190)

Pages:

69-77

DOI:

https://doi.org/10.4028/p-9ppZEB

Citation:

Cite this paper

Online since:

May 2026

Authors:

Jian Pei Zhang*, Ze Yu Chen, Yu Zhuo Li, Shan Shan Hu, Balaji Raghothamachar, Ya Fei Liu, Campbell Bouch, Ryan Philpott, Scott Turchetti, Pete Schunemann, Michael Dudley

Keywords:

4H-SiC, Low-Angle Grain Boundary, Physical Vapor Growth, Synchrotron X-Ray Characterization

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] L. F. S. Alves et al., "SIC power devices in power electronics: An overview," in 2017 Brazilian Power Electronics Conference (COBEP), Juiz de Fora: IEEE, Nov. 2017, p.1–8.

DOI: 10.1109/COBEP.2017.8257396

Google Scholar

[2] M. Dudley, S. Wang, W. Huang, C. H. Carter, V. F. Tsvetkov, and C. Fazi, "White-beam synchrotron topographic studies of defects in 6H-SiC single crystals," J. Phys. Appl. Phys., vol. 28, no. 4A, pp. A63–A68, Apr. 1995.

DOI: 10.1088/0022-3727/28/4a/012

Google Scholar

[3] X. R. Huang, M. Dudley, W. M. Vetter, W. Huang, W. Si, and C. H. Carter Jr, "Superscrew dislocation contrast on synchrotron white-beam topographs: an accurate description of the direct dislocation image," J. Appl. Crystallogr., vol. 32, no. 3, p.516–524, Jun. 1999.

DOI: 10.1107/S0021889899002939

Google Scholar

[4] Y. Chen, H. Chen, N. Zhang, M. Dudley, and R. Ma, "Investigation of Low Angle Grain Boundaries in Hexagonal Silicon Carbide," MRS Proc., vol. 955, p.0955-I07-50, 2006.

DOI: 10.1557/PROC-0955-I07-50

Google Scholar

[5] Y. Chen, G. Dhanaraj, W. M. Vetter, R. H. Ma, and M. Dudley, "Behavior of Basal Plane Dislocations and Low Angle Grain Boundary Formation in Hexagonal Silicon Carbide," Mater. Sci. Forum, vol. 556–557, p.231–234, Sep. 2007.

DOI: 10.4028/www.scientific.net/MSF.556-557.231

Google Scholar

[6] M. Dudley et al., "Formation Mechanism of Stacking Faults in PVT 4H-SiC Created by Deflection of Threading Dislocations with Burgers Vector c+a," Mater. Sci. Forum, vol. 679–680, p.269–272, Mar. 2011.

DOI: 10.4028/www.scientific.net/MSF.679-680.269

Google Scholar

[7] M. Dudley et al., "Stacking faults created by the combined deflection of threading dislocations of Burgers vector c and c+a during the physical vapor transport growth of 4H–SiC," Appl. Phys. Lett., vol. 98, no. 23, p.232110, Jun. 2011.

DOI: 10.1063/1.3597226

Google Scholar

[8] F. Z. Wu et al., "Synchrotron X-Ray Topography Studies of the Propagation and Post-Growth Mutual Interaction of Threading Growth Dislocations with C-Component of Burgers Vector in PVT-Grown 4H-SiC," Mater. Sci. Forum, vol. 717–720, p.343–346, May 2012.

DOI: 10.4028/www.scientific.net/MSF.717-720.343

Google Scholar

[9] Q. Cheng, Z. Chen, S. Hu, B. Raghothamachar, and M. Dudley, "Analysis of Threading Edge Dislocation Low-Angle Grain Boundary Network Distributions in 4H-SiC Wafers Through Synchrotron X-ray Topography and Ray-Tracing Simulation," J. Electron. Mater., Feb. 2025.

DOI: 10.1007/s11664-025-11793-y

Google Scholar

[10] T. Ailihumaer et al., "Synchrotron X-ray Topography Studies of Dislocation Behavior During Early Stages of PVT Growth of 4H-SiC Crystals," J. Electron. Mater., vol. 50, no. 6, p.3258–3265, Jun. 2021.

DOI: 10.1007/s11664-021-08827-6

Google Scholar

[11] T. Ailihumaer et al., "Surface relaxation and photoelectric absorption effects on synchrotron X-ray topographic images of dislocations lying on the basal plane in off-axis 4H-SiC crystals," Mater. Sci. Eng. B, vol. 271, p.115281, Sep. 2021.

DOI: 10.1016/j.mseb.2021.115281

Google Scholar

[12] Q. Cheng, Z. Chen, S. Hu, Y. Liu, B. Raghothamachar, and M. Dudley, "Analysis of dislocation configurations in SiC crystals through X-ray topography aided by ray tracing simulations," Mater. Sci. Semicond. Process., vol. 174, p.108207, May 2024.

DOI: 10.1016/j.mssp.2024.108207

Google Scholar

[13] M. Sonoda, T. Nakano, K. Shioura, N. Shinagawa, and N. Ohtani, "Structural characterization of the growth front of physical vapor transport grown 4H-SiC crystals using X-ray topography," J. Cryst. Growth, vol. 499, p.24–29, Oct. 2018.

DOI: 10.1016/j.jcrysgro.2018.07.029

Google Scholar

[14] J. Guo et al., "Prismatic Slip in PVT-Grown 4H-SiC Crystals," J. Electron. Mater., vol. 46, no. 4, p.2040–2044, Apr. 2017.

DOI: 10.1007/s11664-016-5118-9

Google Scholar

[15] S. Hu et al., "Characterization of Prismatic Slip in SiC Crystals by Chemical Etching Method," Mater. Sci. Forum, vol. 1089, p.45–50, May 2023.

DOI: 10.4028/p-6dx2v3

Google Scholar

[16] T. Okamoto et al., "Quality Evaluation of 150 mm 4H-SiC Grown at over 1.5 mm/h by High-Temperature Chemical Vapor Deposition Method," Solid State Phenom., vol. 342, p.105–112, May 2023.

DOI: 10.4028/p-09h52t

Google Scholar

[17] T. Kimoto and H. Matsunami, "Surface diffusion lengths of adatoms on 6H-SiC{0001} faces in chemical vapor deposition of SiC," J. Appl. Phys., vol. 78, no. 5, p.3132–3137, Sep. 1995.

DOI: 10.1063/1.359999

Google Scholar

[18] N. Ohtani et al., "Investigation of heavily nitrogen-doped n+ 4H–SiC crystals grown by physical vapor transport," J. Cryst. Growth, vol. 311, no. 6, p.1475–1481, Mar. 2009.

DOI: 10.1016/j.jcrysgro.2009.01.119

Google Scholar

[19] S. Hu et al., "Characterization of prismatic slip in PVT-grown AlN crystals," J. Cryst. Growth, vol. 584, p.126548, Apr. 2022.

DOI: 10.1016/j.jcrysgro.2022.126548

Google Scholar
