Correlation between Physicochemical and Electrical Properties of Hydrogenated Amorphous Silicon Doped with Boron: Effect of Thermal Annealing

H.Y. Seba; R. Cherfi; Farida Hamadache; M. Aoucher

doi:10.4028/www.scientific.net/MSF.609.129

Paper Titles

Space Resolved Optical Emission Spectroscopy During Deposition of Ba_xSr_1-xTiO₃ Thin Films by Double Hollow Cathode Plasma Jet System
p.105

Photoluminescence and Structural Properties of ZnO Films Deposited on Si Substrates by Chemical Spray Deposition
p.111

Deposition of Titanium Nitride Thin Films onto Silicon by RF Reactive Magnetron Sputtering
p.117

Investigation of Deep Interface Traps in Very-Thin Oxide/Si Structures Prepared at Low Temperatures Using Chemical Solutions
p.123

Correlation between Physicochemical and Electrical Properties of Hydrogenated Amorphous Silicon Doped with Boron: Effect of Thermal Annealing
p.129

Properties of ZnO Thin Films Grown on Si Substrates by Ultrasonic Spray and ZnO/Si Heterojunctions
p.133

Formation of Rough TiO₂ Thin Films on Glass and Porous Silicon by Sol-Gel Method
p.139

Study of Unsupported and Al₂O₃ or SiO₂-Supported Nickel Molybdate for Oxireforming of Ethane
p.145

Effect of the Electrode Geometry on the Diffusion-Current Problem of the Rotating Porous Silicon Electrode in HF Solution
p.149

HomeMaterials Science ForumMaterials Science Forum Vol. 609Correlation between Physicochemical and Electrical...

Correlation between Physicochemical and Electrical Properties of Hydrogenated Amorphous Silicon Doped with Boron: Effect of Thermal Annealing

Abstract:

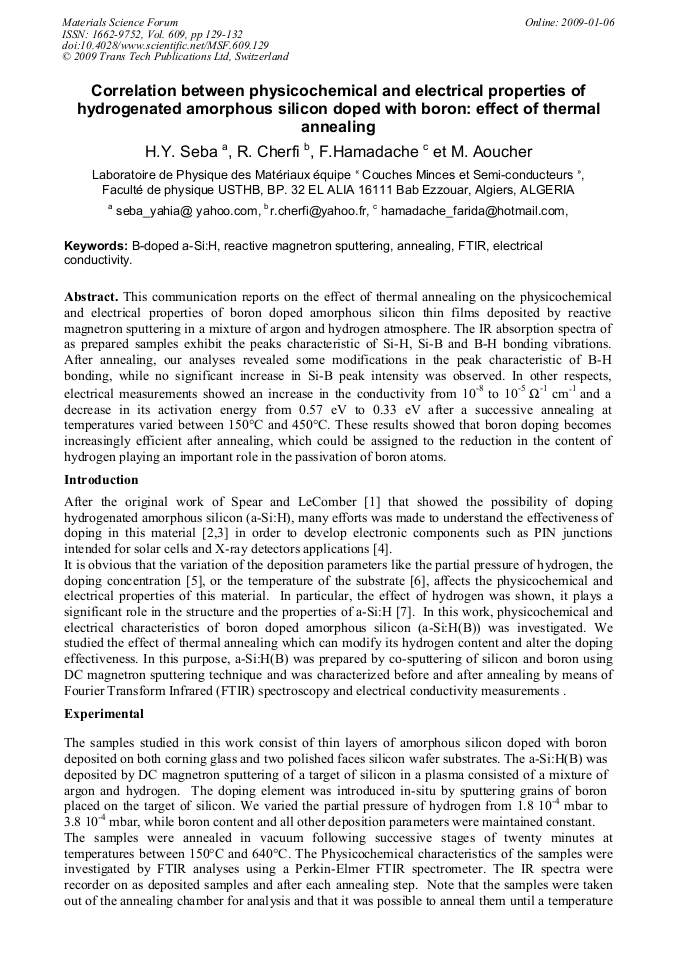

This communication reports on the effect of thermal annealing on the physicochemical and electrical properties of boron doped amorphous silicon thin films deposited by reactive magnetron sputtering in a mixture of argon and hydrogen atmosphere. The IR absorption spectra of as prepared samples exhibit the peaks characteristic of Si-H, Si-B and B-H bonding vibrations. After annealing, our analyses revealed some modifications in the peak characteristic of B-H bonding, while no significant increase in Si-B peak intensity was observed. In other respects, electrical measurements showed an increase in the conductivity from 10-8 to 10-5 -1 cm-1 and a decrease in its activation energy from 0.57 eV to 0.33 eV after a successive annealing at temperatures varied between 150°C and 450°C. These results showed that boron doping becomes increasingly efficient after annealing, which could be assigned to the reduction in the content of hydrogen playing an important role in the passivation of boron atoms.
