Feasibility of Efficient Power Switching Using Short-Channel 1200-V Normally-Off SiC VJFETs; Experimental Analysis and Simulations

Abstract:

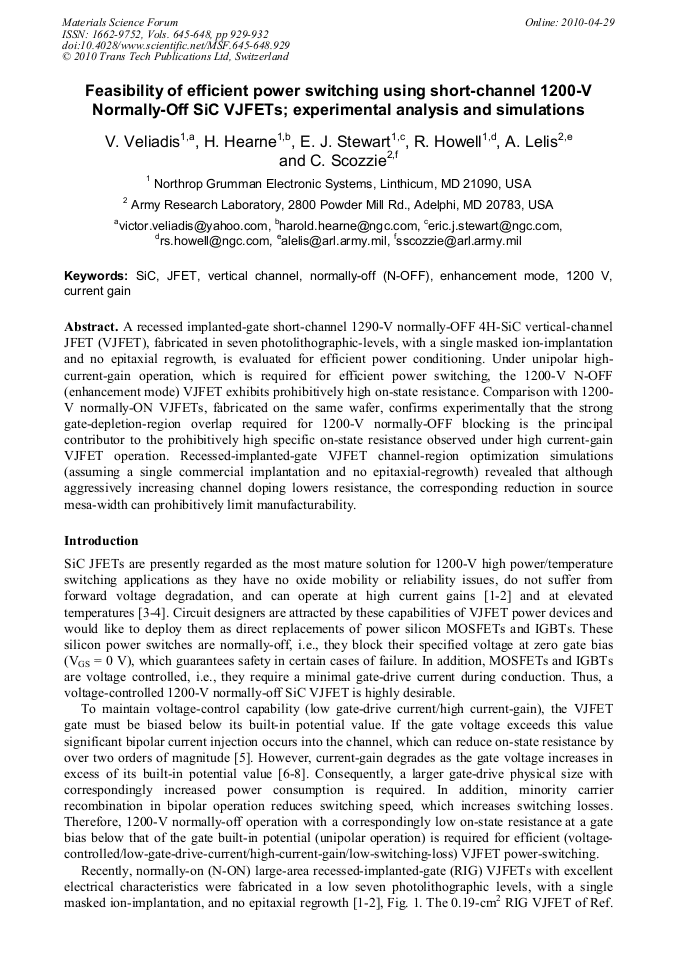

Article Preview

A recessed implanted-gate short-channel 1290-V normally-OFF 4H-SiC vertical-channel JFET (VJFET), fabricated in seven photolithographic-levels, with a single masked ion-implantation and no epitaxial regrowth, is evaluated for efficient power conditioning. Under unipolar high-current-gain operation, which is required for efficient power switching, the 1200-V N-OFF (enhancement mode) VJFET exhibits prohibitively high on-state resistance. Comparison with 1200-V normally-ON VJFETs, fabricated on the same wafer, confirms experimentally that the strong gate-depletion-region overlap required for 1200-V normally-OFF blocking is the principal contributor to the prohibitively high specific on-state resistance observed under high current-gain VJFET operation. Recessed-implanted-gate VJFET channel-region optimization simulations (assuming a single commercial implantation and no epitaxial-regrowth) revealed that although aggressively increasing channel doping lowers resistance, the corresponding reduction in source mesa-width can prohibitively limit manufacturability.

Info:

Periodical:

Materials Science Forum (Volumes 645-648)

Edited by:

Anton J. Bauer, Peter Friedrichs, Michael Krieger, Gerhard Pensl, Roland Rupp and Thomas Seyller

Pages:

929-932

DOI:

10.4028/www.scientific.net/MSF.645-648.929

Citation:

V. Veliadis et al., "Feasibility of Efficient Power Switching Using Short-Channel 1200-V Normally-Off SiC VJFETs; Experimental Analysis and Simulations ", Materials Science Forum, Vols. 645-648, pp. 929-932, 2010

Online since:

April 2010

Export:

Price:

$38.00

[1] V. Veliadis, T. McNutt, M. Snook, H. Hearne, P. Potyraj, and C. Scozzie: IEEE Elec. Dev. Letters Vol. 29 (2008), p.1132.

[2] V. Veliadis, M. Snook, T. McNutt, H. Hearne, P. Potyraj, Aivars Lelis, and C. Scozzie: IEEE Elec. Dev. Letters Vol. 29 (2008), p.1325.

[3] V. Veliadis, H. Hearne, T. McNutt, M. Snook, P. Potyraj, and C. Scozzie: Mat. Sci. Forum, vols. 615-617 (2009), p.711.

DOI: 10.4028/www.scientific.net/msf.615-617.711

[4] P. G. Neudeck, D. J. Spry, L. -Y. Chen, C.W. Chang, G. M. Beheim, R. S. Okojie, L. J. Evans, R. D. Meredith, T. L. Ferrier, M. J. Krasowski, and N. F. Prokop: Mat. Sci. For., vols. 615617, p.929 (2009).

DOI: 10.4028/www.scientific.net/msf.615-617.929

[5] B. J. Baliga: Electr. Letters Vol. 16 (1980), p.300.

[6] V. Veliadis, H. Hearne, T. McNutt, M. Snook, P. Potyraj, A. Lelis, and C. Scozzie, SAE Int. J. Aerospace vol. 1 (2008), p.973.

DOI: 10.4271/2008-01-2883

[7] D. Stephani, and P. Friedrichs: Inter. J. of High Speed Elec. and Sys. vol. 16 (2006), p.825.

[8] V. Veliadis, H. Hearne, E. J. Stewart, M. Snook, T. McNutt, R. Howell, A. Lelis, and C. Scozzie: IEEE Electron Dev. Letters Vol. 30 (2009), p.736.

DOI: 10.1109/led.2009.2021491

[9] K. Tone, J. H. Zhao, L. Fursin, P. Alexandrov, and M. Weiner: IEEE Trans. on Electron Devices, vol. 24, no. 7, p.463, (2003).

[10] D.C. Sheridan, A. Ritenour, V. Bondarenko, P. Burks, and J.B. Casady: to appear in proceedings of ISPDS (2009).

[11] V. Veliadis, M. McCoy, T. McNutt, H. Hearne, L. S. Chen, G. DeSalvo, C. Clarke, B. Geil, D. Katsis, and C. Scozzie: Compound Sem. Manuf. Technology Conference (2007), p.217.

[12] V. Veliadis, T. McNutt, M. McCoy, H. Hearne, P. Potyraj, and C. Scozzie: Int. J. of Power Manage. Electronics Vol. 2008 (2008), p.523721.

DOI: 10.1155/2008/523721

[13] S. Ortolland, C. Raynaud, J. P. Chante, M. L. Locatelli, A. A. Lebedev, A. N. Andreev, N. S. Savkina, V. E. Chelnokov, M. G. Rastegaeva, and A. L. Syrkin: J. Appl. Phys. Vol. 80 (1996), p.5464.

DOI: 10.1063/1.362736

[14] G. DeSalvo: Intern. J. of High Speed Elec. and Systems Vol. 15 (2005), p.997.
