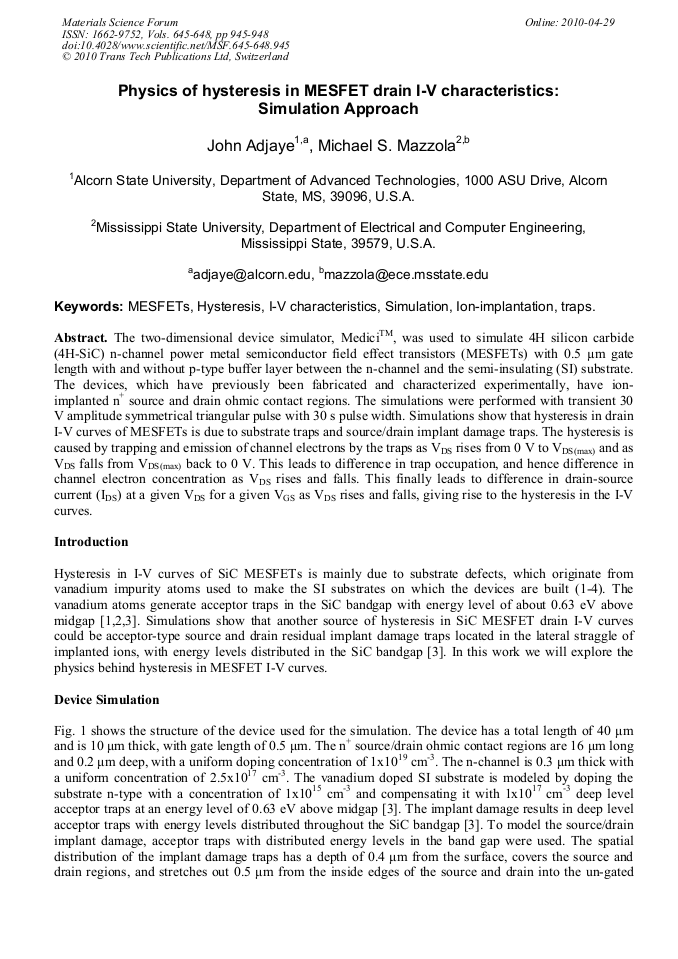

Physics of Hysteresis in MESFET Drain I-V Characteristics: Simulation Approach

Abstract:

The two-dimensional device simulator, MediciTM, was used to simulate 4H silicon carbide (4H-SiC) n-channel power metal semiconductor field effect transistors (MESFETs) with 0.5 µm gate length with and without p-type buffer layer between the n-channel and the semi-insulating (SI) substrate. The devices, which have previously been fabricated and characterized experimentally, have ion-implanted n+ source and drain ohmic contact regions. The simulations were performed with transient 30 V amplitude symmetrical triangular pulse with 30 s pulse width. Simulations show that hysteresis in drain I-V curves of MESFETs is due to substrate traps and source/drain implant damage traps. The hysteresis is caused by trapping and emission of channel electrons by the traps as VDS rises from 0 V to VDS(max) and as VDS falls from VDS(max) back to 0 V. This leads to difference in trap occupation, and hence difference in channel electron concentration as VDS rises and falls. This finally leads to difference in drain-source current (IDS) at a given VDS for a given VGS as VDS rises and falls, giving rise to the hysteresis in the I-V curves.

You might also be interested in these eBooks

Silicon Carbide and Related Materials 2009

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 645-648)

Pages:

945-948

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.645-648.945

Citation:

Cite this paper

Online since:

April 2010

Authors:

John Adjaye, Michael S. Mazzola

Keywords:

Ion Implantation, MESFET, Substrate Trap

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] A. V. Los, M. S. Mazzola, D. Kajfez, B. T. McDaniel, C. E. Smith, J. Kretchmer, L.B. Rowland, and J. B. Casady, Mater. Sci. Forum Vols. 457-460 (2004), pp.1193-1196.

DOI: 10.4028/www.scientific.net/msf.457-460.1193

Google Scholar

[2] N. Sghaier, J-M. Bluet, A. Souifi, G. Guillot, E. Morvan, and C. Brylinski, IEEE Transactions on Electron Devices Vol. 50, No. 20 (2003), pp.292-301.

DOI: 10.1109/ted.2002.808559

Google Scholar

[3] J. Adjaye, M. S. Mazzola, A.V. Los, Materials Science Forum Vols. 527-529 (2006), pp.1247-1250.

Google Scholar

[4] S. H. Lo and C-P Lee, IEEE Transactions on Electron Devices, Vol. 39, No. 2 (1992), pp.242-248.

Google Scholar

0. 0. 0. 0. 1 1. 1. 1. 1. 2.

Google Scholar

[1] [2] [3] [4] [5] [6] [7] [8] [9] [10] ___ VDS=19V forward curve _ _ _ VDS=19V return curve NT = 1E17 cm �3 VGS= −20V Empty Trap Concentration (#/cubic cm) 1 E 16 Distance from device surface, y (um) Fig. 5. Empty trap distribution (trap occupation) for MESFET with substrate traps only. Trap density NT = 1E17 cm−3.
