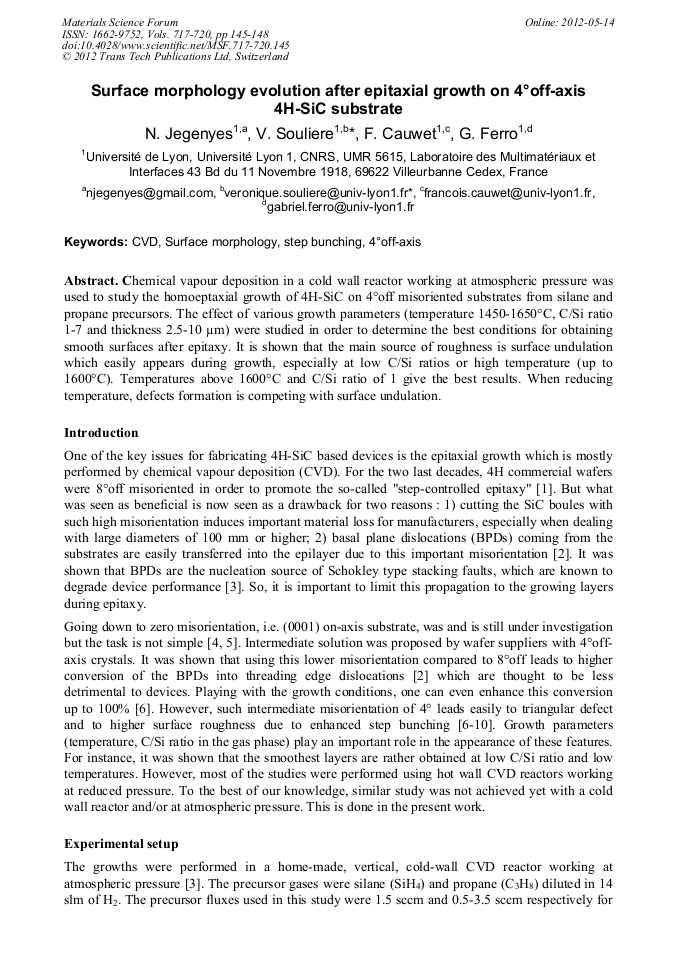

Surface Morphology Evolution after Epitaxial Growth on 4°Off-Axis 4H-SiC Substrate

Abstract:

Chemical vapour deposition in a cold wall reactor working at atmospheric pressure was used to study the homoeptaxial growth of 4H-SiC on 4°ff misoriented substrates from silane and propane precursors. The effect of various growth parameters (temperature 1450-1650°C, C/Si ratio 1-7, thickness 2.5-10 µm) were studied in order to determine the best conditions for obtaining smooth surfaces after epitaxy. It is shown that the main source of roughness is surface undulation which easily appears during growth, especially at low C/Si ratios and high temperature (up to 1600°C). Temperatures above 1600°C and C/Si ratio of 1 give the best results. When reducing temperature, a trade-off has to be found between defects formation and surface undulation.

You might also be interested in these eBooks

Silicon Carbide and Related Materials 2011

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 717-720)

Pages:

145-148

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.717-720.145

Citation:

Cite this paper

Online since:

May 2012

Authors:

Nikoletta Jegenyes, Véronique Soulière, François Cauwet, Gabriel Ferro

Keywords:

CVD, Step Bunching, Surface Morphology

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] N. Kuroda, K. Shibahara, W. S. Yoo, S. Nishino, and H. Matsunami, Extended Abstracts of the 19th Conference on Solid State Devices and Materials, Tokyo, (1987) 227.

DOI: 10.7567/ssdm.1987.c-4-2

Google Scholar

[2] W.Chen, M.A. Capano, J. Appl. Phys. 98 (2005) 114907.

Google Scholar

[3] S. Ha, M. Skowronski, H. Lendenmann, J. Appl. Physics 96 (1) (2004) pp.393-398

Google Scholar

[4] S. Leone, H. Pedersen, A. Henry, O. Kordina, E. Janzén, J. Crystal Growth 312 (2009) 24–32

Google Scholar

[5] S. Nakamura, T. Kimoto, H. Matsunami, J. Crystal Growth 256 (2003) 341–346

Google Scholar

[6] R.L. Myers-Ward, B.L. Van Mil et al, Mater. Sci. Forum 615-617 (2009) 105-108

Google Scholar

[7] S. Leone, H. Pedersen , A. Henry et al, J. Crystal Growth 311 (2009) 3265–3272

Google Scholar

[8] K. Wada, T. Kimoto, K. Nishikawa, H. Matsunami, J. Crystal Growth 291 (2006) 370–374

Google Scholar

[9] Y. Ishida, T. Takahashi, H. Okumura et al, Mater. Sci. Forum 600-603 (2009) 473-476

Google Scholar

[10] M. Camarda, A. Canino et al, Oral presentation at ICSCRM conference held in Cleveland (USA) in Sept. (2011)

Google Scholar
