Nitrogen Doped 300 mm Czochralski Silicon Wafers Optimized with Respect to Voids with Laterally Homogeneous Internal Getter Capabilities

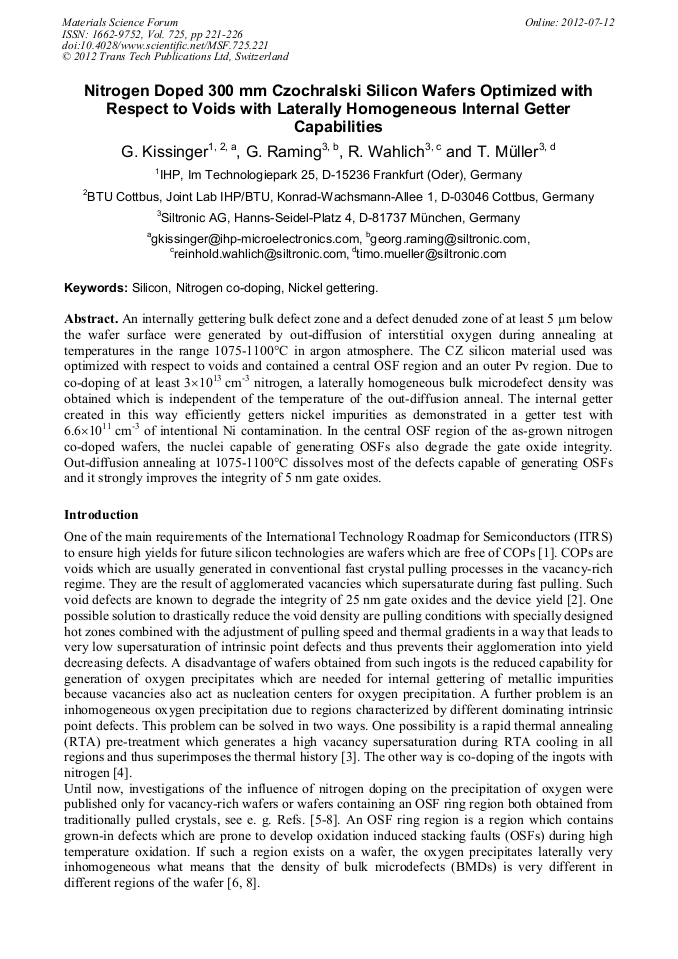

Article Preview

Abstract:

An internally gettering bulk defect zone and a defect denuded zone of at least 5 µm below the wafer surface were generated by out-diffusion of interstitial oxygen during annealing at temperatures in the range 1075-1100 °C in argon atmosphere. The CZ silicon material used was optimized with respect to voids and contained a central OSF region and an outer Pv region. Due to co-doping of at least 3×1013 cm-3 nitrogen, a laterally homogeneous bulk microdefect density was obtained which is independent of the temperature of the out-diffusion anneal. The internal getter created in this way efficiently getters nickel impurities as demonstrated in a getter test with 6.6×1011 cm-3 of intentional Ni contamination. In the central OSF region of the as-grown nitrogen co-doped wafers, the nuclei capable of generating OSFs also degrade the gate oxide integrity. Out-diffusion annealing at 1075-1100°C dissolves most of the defects capable of generating OSFs and it strongly improves the integrity of 5 nm gate oxides.

You might also be interested in these eBooks

Info:

Periodical:

Pages:

221-226

Citation:

Online since:

July 2012

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2012 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] International Technology Roadmap for Semiconductors, 2009 Edition, Front End Processes.

Google Scholar

[2] M. Itsumi, H. Akiya and T. Ueki, J. Appl. Phys., 78 (1995) 5984.

Google Scholar

[3] J.-G. Park, G.-S. Lee, J.-S. Lee, K. Kurita, H. Furuja, Mat. Sci. Eng. B 134 (2006) 249.

Google Scholar

[4] G. Kissinger, G. Raming, R. Wahlich, T. Müller, Physica B (2011).

DOI: 10.1016/j.physb.2011.08.055

Google Scholar

[5] Q. Sun, K. H. Yao, H. C. Gatos, J. Lagowski, J. Appl. Phys. 71 (1992) 3760.

Google Scholar

[6] W. von Ammon, P. Dreier, W. Hensel, U. Lambert, L. Köster, Mat. Sci. & Engineering B36 (1996) 33.

Google Scholar

[7] T. Müller, W. Siebert, K. Messmann, R. Wahlich, P. Krottenthaler, R. Wahlich, R. Hölzl, A. Ikari, W. von Ammon, The Electrochem. Soc. Proc. Vol. 2000-2 (2002) 195.

Google Scholar

[8] X. Yu, D. Yang, X. Ma, J. Yang, L. Li, D. Que, J. Appl. Phys. 92 (2002) 188.

Google Scholar

[9] H. Ono and M. Horikawa, Jpn. J. Appl. Phys., Part 2, 42 (2003) L261.

Google Scholar

[10] F. Secco d'Aragona, J. Electrochem. Soc., 199 (1972) 948.

Google Scholar

[11] M. Wright Jenkins, J. Electrochem. Soc., 124 (1977) 757.

Google Scholar

[12] G. Kissinger, P. Schley, R. Barth, G. Morgenstern, D. Knoll, K.-E. Ehwald, H. Richter, Proc. DRIP V, Santander, Spain, September 6-10, 1993 in: Inst. Phys. Conf. Ser. No. 135 (1994) 369.

Google Scholar
