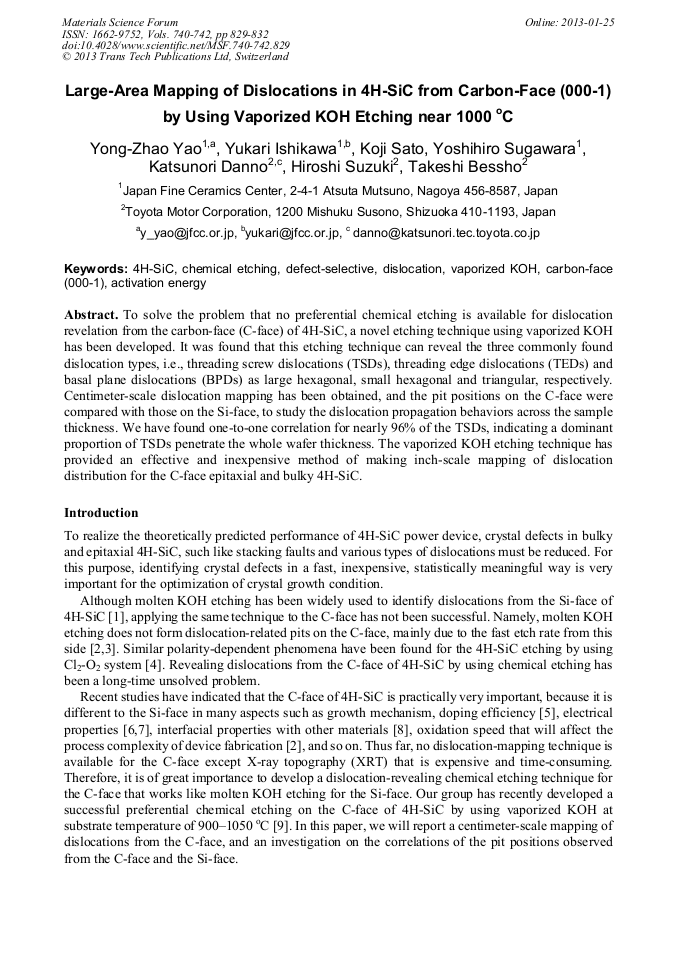

Large-Area Mapping of Dislocations in 4H-SiC from Carbon-Face (000-1) by Using Vaporized KOH Etching near 1000 °C

Abstract:

To solve the problem that no preferential chemical etching is available for dislocation revelation from the carbon-face (C-face) of 4H-SiC, a novel etching technique using vaporized KOH has been developed. It was found that this etching technique can reveal the three commonly found dislocation types, i.e., threading screw dislocations (TSDs), threading edge dislocations (TEDs) and basal plane dislocations (BPDs) as large hexagonal, small hexagonal and triangular, respectively. Centimeter-scale dislocation mapping has been obtained, and the pit positions on the C-face were compared with those on the Si-face, to study the dislocation propagation behaviors across the sample thickness. We have found one-to-one correlation for nearly 96% of the TSDs, indicating a dominant proportion of TSDs penetrate the whole wafer thickness. The vaporized KOH etching technique has provided an effective and inexpensive method of making inch-scale mapping of dislocation distribution for the C-face epitaxial and bulky 4H-SiC.

You might also be interested in these eBooks

Silicon Carbide and Related Materials 2012

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 740-742)

Pages:

829-832

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.740-742.829

Citation:

Cite this paper

Online since:

January 2013

Authors:

Yong Zhao Yao, Yukari Ishikawa, Koji Sato, Yoshihiro Sugawara, Katsunori Danno, Hiroshi Suzuki, Takeshi Bessho

Keywords:

4H-SiC, Activation Energy, Carbon-Face (000-1), Chemical Etching, Defect-Selective, Dislocation, Vaporized KOH

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] D. Zhuang and J.H. Edgar: Mater. Sci. Eng. R Vol. 48 (2005), p.1.

Google Scholar

[2] M. Katsuno, N. Ohtani, J. Takahashi, H. Yashiro, M. Kanaya and S. Shinoyama: Mater. Sci. Forum Vol. 264-268 (1998), p.837.

DOI: 10.4028/www.scientific.net/msf.264-268.837

Google Scholar

[3] R. Yakimova, A. -L. Hylén, M. Tuominen, M. Syväjärvi and E. Jarzén: Diam. Relat. Mater. Vol. 6 (1997), p.1456.

Google Scholar

[4] T. Hatayama, H. Yano, Y. Uraoka and T. Fuyuki: Jpn. J. Appl. Phys. Vol. 45 (2006), p. L690.

Google Scholar

[5] K. Kojima, H. Okumura, S. Kuroda, K. Arai, A. Ohi and H. Akinaga: Mater. Sci. Forum Vol. 483-485 (2005), p.93.

Google Scholar

[6] Y. Tanaka, K. Fukuda, K. Arai, K. Kojima, T. Suzuki and T. Yatsuo: Appl. Phys. Lett. Vol. 84 (2004), p.1774.

Google Scholar

[7] K. Fukuda, J. Senzaki, K. Kojima, and T. Suzuki: Mater. Sci. Forum Vol. 433-436 (2003), p.567.

Google Scholar

[8] K.S. Ramaiah, I. Bhat, T.P. Chow, J.K. Kim, E.F. Schubert, D. Johnstone and S. Akarca-Biyikli: J. Appl. Phys. Vol. 98 (2005), p.106108.

Google Scholar

[9] Y.Z. Yao, Y. Ishikawa, K. Sato, Y. Sugawara, K. Danno, H. Suzuki, and T. Bessho: Appl. Phys. Express Vol. 5 (2012) p.075601.

DOI: 10.1143/apex.5.075601

Google Scholar

[10] Y.Z. Yao, Y. Ishikawa, Y. Sugawara, H. Saitoh, K. Danno, H. Suzuki, Y. Kawai and N. Shibata: Jpn. J. Appl. Phys. Vol. 50 (2011), p.075502.

DOI: 10.7567/jjap.50.075502

Google Scholar

[11] Y. Ishikawa, Y.Z. Yao, K. Sato, Y. Sugawara, K. Danno, H. Suzuki, and T. Bessho: in preparation for publication.

Google Scholar

[12] H. Tsuchida, M. Ito, I. Kamata and M. Nagano: Phys. Stat. Sol. (b) Vol. 246 (2009), p.1553.

Google Scholar

[13] Y. Chen, X.R. Huang, G. Dhanaraj, M. Dudley, E.K. Sanchez and M.F. MacMillan: Mater. Sci. Forum Vol. 600-603 (2009), p.297.

Google Scholar
