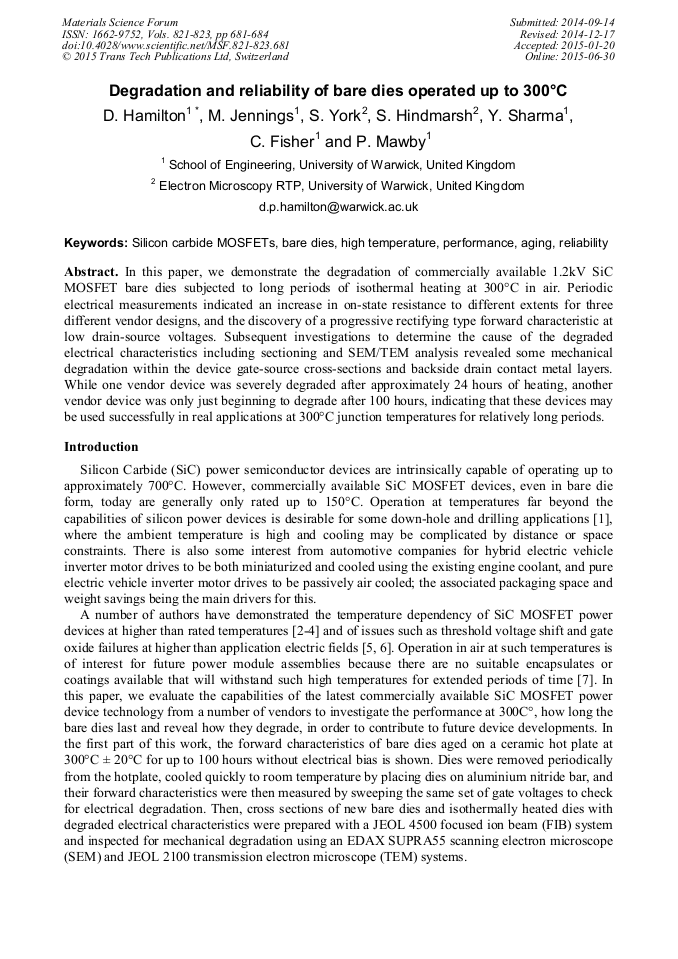

Degradation and Reliability of Bare Dies Operated up to 300°C

Abstract:

In this paper, we demonstrate the degradation of commercially available 1.2kV SiC MOSFET bare dies subjected to long periods of isothermal heating at 300°C in air. Periodic electrical measurements indicated an increase in on-state resistance to different extents for three different vendor designs, and the discovery of a progressive rectifying type forward characteristic at low drain-source voltages. Subsequent investigations to determine the cause of the degraded electrical characteristics including sectioning and SEM/TEM analysis revealed some mechanical degradation within the device gate-source cross-sections and backside drain contact metal layers. While one vendor device was severely degraded after approximately 24 hours of heating, another vendor device was only just beginning to degrade after 100 hours, indicating that these devices may be used successfully in real applications at 300°C junction temperatures for relatively long periods.

• Periodical: Materials Science Forum (Volumes 821-823)
• Pages: 681-684
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.821-823.681
• Online since: June 2015
• Authors: Dean Hamilton, M. Jennings, Stephen York, Steven A. Hindmarsh, Y. Sharma, C. Fisher, P. Mawby
• Keywords: Aging, Bare Dies, High Temperature, Performance, Reliability, Silicon Carbide MOSFETs

References

[1] Buttay, C., et al., State of the art of high temperature power electronics. Materials Science and Engineering: B, 2011. 176(4): pp.283-288.

[2] DiMarino, C., et al. High-temperature characterization and comparison of 1. 2 kV SiC power MOSFETs. in Energy Conversion Congress and Exposition (ECCE), 2013 IEEE. (2013).

DOI: 10.1109/ecce.2013.6647125

[3] Hamilton, D.P., et al., Characteristics and aging of SiC MOSFETs operated at very high temperatures. MRS Online Proceedings Library, 2014. 1693: p. null-null.

[4] Hamilton, D.P., et al., Evaluation of commercially available SiC devices and packaging materials for operation up to 350°C, in ECCE. 2014, IEEE: Pittsburgh, USA.

DOI: 10.1109/ecce.2014.6953720

[5] Matocha, K., Challenges in SiC power MOSFET design. Solid-State Electronics, 2008. 52(10): pp.1631-1635.

DOI: 10.1016/j.sse.2008.06.034

[6] Yu, L.C.C., et al., Reliability Issues of SiC MOSFETs: A Technology for High-Temperature Environments. Ieee Transactions on Device and Materials Reliability, 2010. 10(4): pp.418-426.

DOI: 10.1109/tdmr.2010.2077295

[7] Locatelli, M.L., et al., Evaluation of Encapsulation Materials for High-Temperature Power Device Packaging. Ieee Transactions on Power Electronics, 2014. 29(5): pp.2281-2288.

DOI: 10.1109/tpel.2013.2279997

[8] Tanimoto, S. and H. Ohashi, Reliability issues of SiC power MOSFETs toward high junction temperature operation. physica status solidi (a), 2009. 206(10): pp.2417-2430.

DOI: 10.1002/pssa.200925167

[9] Kuchuk, A.V., et al., Thermal degradation of Au/Ni2Si/n-SiC ohmic contacts under different conditions. Materials Science and Engineering B-Advanced Functional Solid-State Materials, 2009. 165(1-2): pp.38-41.

DOI: 10.1016/j.mseb.2008.12.011
