Application of In Situ 3D Computed Tomography during PVT Growth of 4H-SiC for the Study of Source Material Consumption under Varying Growth Conditions

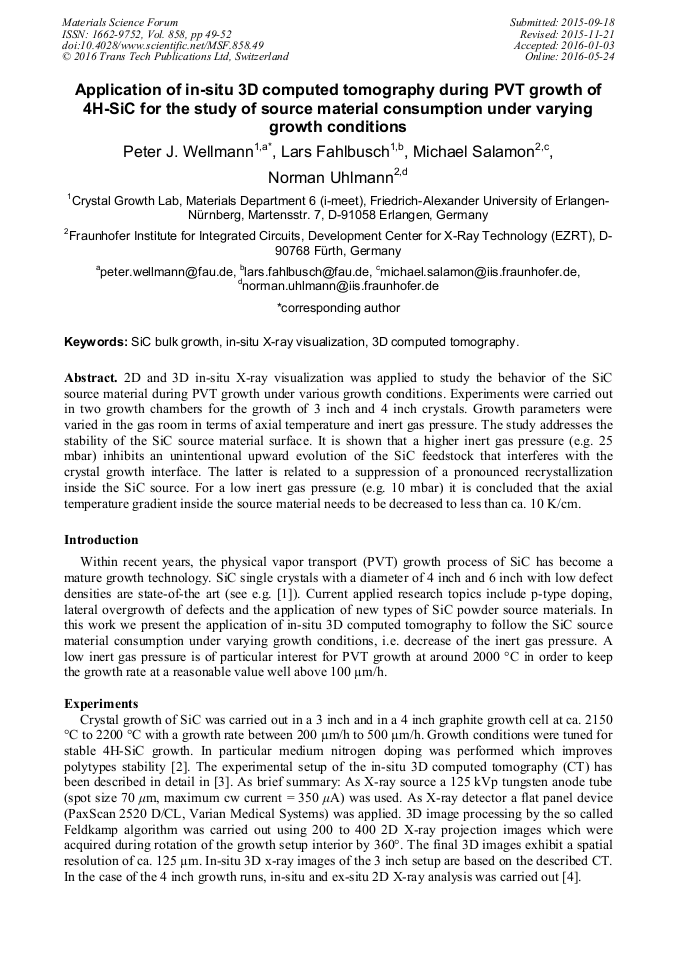

Article Preview

Abstract:

2D and 3D in-situ X-ray visualization was applied to study the behavior of the SiC source material during PVT growth under various growth conditions. Experiments were carried out in two growth chambers for the growth of 3 inch and 4 inch crystals. Growth parameters were varied in the gas room in terms of axial temperature and inert gas pressure. The study addresses the stability of the SiC source material surface. It is shown that a higher inert gas pressure (e.g. 25 mbar) inhibits an unintentional upward evolution of the SiC feedstock that interferes with the crystal growth interface. The latter is related to a suppression of a pronounced recrystallization inside the SiC source. For a low inert gas pressure (e.g. 10 mbar) it is concluded that the axial temperature gradient inside the source material needs to be decreased to less than ca. 10 K/cm.

You might also be interested in these eBooks
Silicon Carbide and Related Materials 2015 View Preview

Info:

Periodical:

Materials Science Forum (Volume 858)

Pages:

49-52

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.858.49

Citation:

Cite this paper

Online since:

May 2016

Authors:

Peter J. Wellmann, Lars Fahlbusch, Michael Salamon, Norman Uhlmann

Keywords:

3D Computed Tomography, In Situ X-Ray Visualization, SiC Bulk Growth

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2016 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] H. Kondo, H. Takaba, M. Yamada, Y. Urakami, T. Okamoto, M. Kobayashi, T. Masuda, I. Gunjishima, K. Shigeto, N. Ooya, N. Sugiyama, A. Matsuse, T. Kozawa, T. Sato, F. Hirose, S. Yamauchi, S. Onda, , Mater. Sci. Forum 778–780, (2014) p.17.

DOI: 10.4028/www.scientific.net/msf.778-780.17

Google Scholar

[2] T. Shiramomo, B. Gao, F. Mercier, S. Nishizawa, S. Nakano, K. Kakimoto, J. Cryst. Growth 385 (2014) p.95.

Google Scholar

[3] P. Wellmann, G. Neubauer, L. Fahlbusch, M. Salamon, N. Uhlmann, Cryst. Res. Technol. 50, No. 1 (2015) 2-9.

Google Scholar

[4] E.L. Kitanin, M.S. Ramm, V.V. Ris, A.A. Schmidt, Mat. Sci. Eng. B. 55 (1998) 174.

Google Scholar

[5] P.J. Wellmann, M. Bickermann, D. Hofmann, L. Kadinski, M. Selder, T.L. Straubinger and A. Winnacker, J. Cryst. Growth 216 (1999) p.263.

DOI: 10.1016/s0022-0248(00)00372-9

Google Scholar

[6] St.G. Müller, Dissertation, Erlangen, published by Shaker, (1998).

Google Scholar

[7] T.L. Straubinger, M. Bickermann, M. Grau, D. Hofmann, L. Kadinski, M. Selder, P.J. Wellmann and A. Winnacker; Mat. Sci. Forum 338-342 (1999) p.39.

DOI: 10.4028/www.scientific.net/msf.338-342.39

Google Scholar

[8] P.J. Wellmann, D. Hofmann, L. Kadinski, M. Selder, T.L. Straubinger and A. Winnacker, Impact of source material on silicon carbide vapor transport growth process, J. Cryst. Growth 225 (2001) p.312.

DOI: 10.1016/s0022-0248(01)00881-8

Google Scholar
