Advanced SiC Power MOSFETs Manufactured on 150mm SiC Wafers

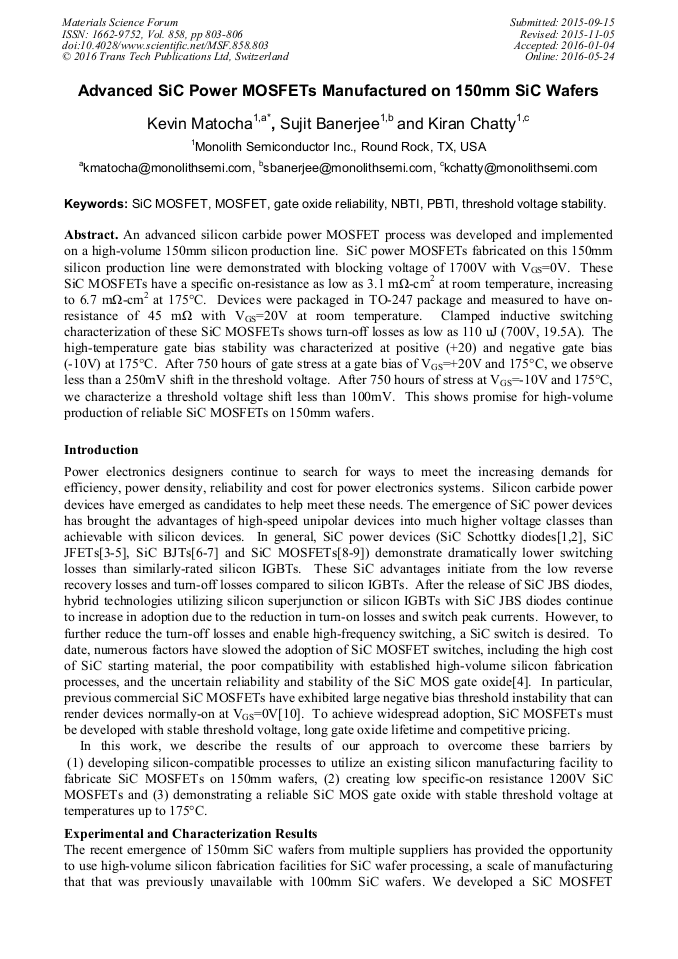

Abstract:

An advanced silicon carbide power MOSFET process was developed and implemented on a high-volume 150mm silicon production line. SiC power MOSFETs fabricated on this 150mm silicon production line were demonstrated with blocking voltage of 1700V with V_GS=0V. These SiC MOSFETs have a specific on-resistance as low as 3.1 mΩ-cm² at room temperature, increasing to 6.7 mΩ-cm² at 175°C. Devices were packaged in TO-247 package and measured to have on-resistance of 45 mΩ with V_GS=20V at room temperature. Clamped inductive switching characterization of these SiC MOSFETs shows turn-off losses as low as 110 uJ (700V, 19.5A). The high-temperature gate bias stability was characterized at positive (+20) and negative gate bias (-10V) at 175°C. After 750 hours of gate stress at a gate bias of V_GS=+20V and 175°C, we observe less than a 250mV shift in the threshold voltage. After 750 hours of stress at V_GS=-10V and 175°C, we characterize a threshold voltage shift less than 100mV. This shows promise for high-volume production of reliable SiC MOSFETs on 150mm wafers.

You might also be interested in these eBooks

Silicon Carbide and Related Materials 2015

View Preview

Info:

Periodical:

Materials Science Forum (Volume 858)

Pages:

803-806

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.858.803

Citation:

Cite this paper

Online since:

May 2016

Authors:

Kevin Matocha*, Sujit Banerjee, Kiran Chatty

Keywords:

Gate Oxide Reliability, MOSFET, Negative Bias Temperature Instability (NBTI), PBTI, SiC MOSFET, Threshold Voltage Instability

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] D. Stephani, Status, prospects and commercialization of SiC Power Devices, Device Research Conf., Notre Dame, IN, USA, 25 June (2001).

Google Scholar

[2] R. Singh, D.C. Capell, A.R. Hefner, J. Lai and J.W. Palmour, High-power 4H-SiC JBS rectifiers, IEEE Trans. Elec. Dev., v. 49(11), pp.2054-2063, (2002).

DOI: 10.1109/ted.2002.804715

Google Scholar

[3] D.C. Sheridan, A. Ritenour, R. Kelley, V. Bondarenko and J. B Casady, Advances in SiC VJFETs for renewable and high-efficiency power electronics applications, 2010 International Power Electronics Conf., Sapporo, Japan, 21 June (2010).

DOI: 10.1109/ipec.2010.5543703

Google Scholar

[4] M. Treu, R. Rupp, P. Blaschitz, K. Ruschenschmidt, T. Sekinger, P. Friedrichs, R. Elpelt and D. Peters, Strategic considerations for unipolar SiC switch options; JFET vs. MOSFET, 42nd IEEE Industry Appl. Conf. Proc., New Orleans, LA, USA, pp.324-330, 23 September (2007).

DOI: 10.1109/07ias.2007.10

Google Scholar

[5] J.H. Zhao, K. Tone, P. Alexandrov, L. Fursin, M. Weiner, 1710V 2. 77 mΩ-cm2 4H-SiC trenched and implanted junction field-effect transistors, IEEE Elect. Dev. Lett., v. 24(2), pp.81-83, (2003).

DOI: 10.1109/led.2003.808841

Google Scholar

[6] M. Domeij, H. -S. Lee, E. Danielsson, C. -M. Zetterling, M. Ostling, A. Schoner, Geometrical effects in high current gain 1100-V 4H-SiC BJTs, IEEE Elect. Dev. Lett., v. 26(10), pp.743-745, (2005).

DOI: 10.1109/led.2005.856010

Google Scholar

[7] R. Singh, S. Sundaresan, E. Lieser, M. Digangi, 1200V SiC 'super' junction transistors operating at 250°C with extremely low energy losses for power conversion applications, 27th IEEE Appl. Power Elect. Conf. Digest, Orlando, FL, USA, pp.2516-2520, 5 February (2012).

DOI: 10.1109/apec.2012.6166176

Google Scholar

[8] B.A. Hull, J. Henning, C. Jonas, R. Callanan, A. Olmeda, R. Sousa and J.M. Solovey, 1700V 4H-SiC MOSFETs and Schottky diodes for next generation power conversion applications, 26th IEEE Appl. Power Elect. Conf. Digest, Fort Worth, TX, USA, pp.1042-1048, 6 March (2011).

DOI: 10.1109/apec.2011.5744723

Google Scholar

[9] T. Nakamura, M. Sasagawa, Y. Nakano, T. Otsuka and M. Miura, Large current SiC power devices for automotive applications, " Int, l Power Elect. Conf. Digest, Sapporo, Japan, pp.1023-1026, 21 June (2010).

DOI: 10.1109/ipec.2010.5542036

Google Scholar

[10] A. Lelis, R. Green, D. Habersat, M. El, Basic mechanisms of threshold-voltage instability and implications for reliability testing of SiC MOSFETs, IEEE Trans. Elect. Dev., v. 62(2), pp.316-323, (2015).

DOI: 10.1109/ted.2014.2356172

Google Scholar

[11] K. Matocha, K. Chatty, S. Banerjee, L. Rowland, 1700V, 5. 5 mΩ-cm2 4H-SiC DMOSFETs with stable 225°C operation, Materials Science Forum, Vols 778-780, pp.903-906, (2014).

DOI: 10.4028/www.scientific.net/msf.778-780.903

Google Scholar

[12] Z. Chbili, K. Cheung, J. Campbell, J. Chbili, M. Lahbabi, D. Ioannou, and K. Matocha, Time dependent dielectric breakdown in high quality SiC MOS capacitors, ICSCRM 2015, We-3A-3.

DOI: 10.4028/www.scientific.net/msf.858.615

Google Scholar
