Mg-Zn-Y Alloys with Long-Period Stacking Ordered Phases: Deformation, Creep, Solute Segregation and Strengthening Mechanisms at Elevated Temperatures

Abstract:

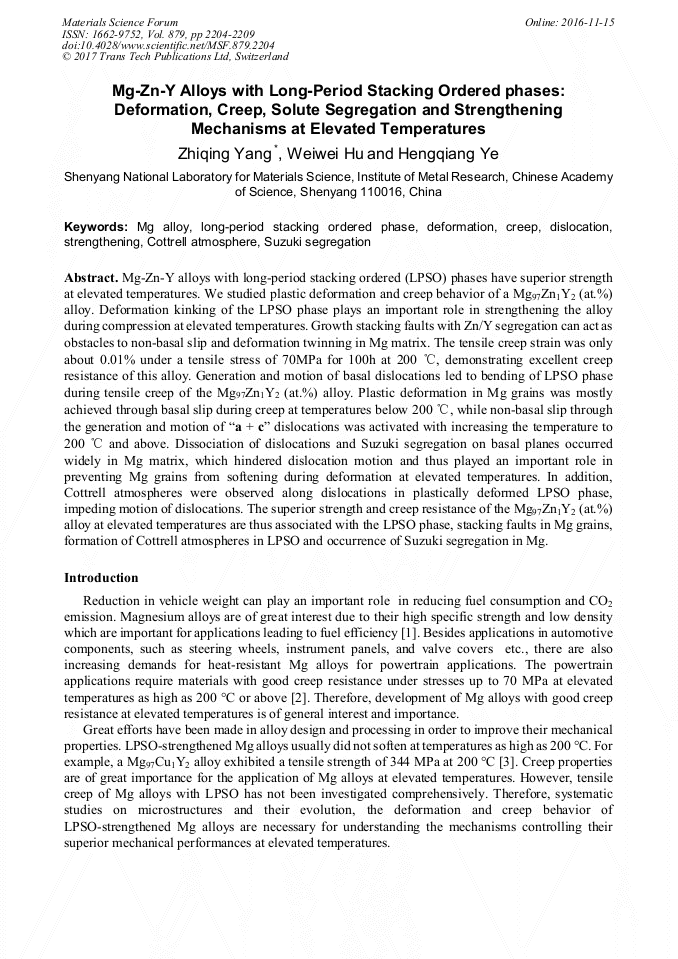

Mg-Zn-Y alloys with long-period stacking ordered (LPSO) phases have superior strength at elevated temperatures. We studied plastic deformation and creep behavior of a Mg₉₇Zn₁Y₂ (at.%) alloy. Deformation kinking of the LPSO phase plays an important role in strengthening the alloy during compression at elevated temperatures. Growth stacking faults with Zn/Y segregation can act as obstacles to non-basal slip and deformation twinning in Mg matrix. The tensile creep strain was only about 0.01% under a tensile stress of 70MPa for 100h at 200 °C, demonstrating excellent creep resistance of this alloy. Generation and motion of basal dislocations led to bending of LPSO phase during tensile creep of the Mg₉₇Zn₁Y₂ (at.%) alloy. Plastic deformation in Mg grains was mostly achieved through basal slip during creep at temperatures below 200 °C, while non-basal slip through the generation and motion of “a + c” dislocations was activated with increasing the temperature to 200 °C and above. Dissociation of dislocations and Suzuki segregation on basal planes occurred widely in Mg matrix, which hindered dislocation motion and thus played an important role in preventing Mg grains from softening during deformation at elevated temperatures. In addition, Cottrell atmospheres were observed along dislocations in plastically deformed LPSO phase, impeding motion of dislocations. The superior strength and creep resistance of the Mg₉₇Zn₁Y₂ (at.%) alloy at elevated temperatures are thus associated with the LPSO phase, stacking faults in Mg grains, formation of Cottrell atmospheres in LPSO and occurrence of Suzuki segregation in Mg.

• Periodical: Materials Science Forum (Volume 879)
• Pages: 2204-2209
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.879.2204
• Online since: November 2016
• Authors: Zhi Qing Yang*, Wei Wei Hu, Heng Qiang Ye
• Keywords: Cottrell Atmosphere, Creep, Deformation, Dislocation, Long-Period Stacking Ordered Phase, Mg Alloy, Strengthening, Suzuki Segregation

References

[1] T.M. Pollock, Weight Loss with Magnesium Alloys, Science 328 (2010) 986-987.

[2] M.O. Pekguleryuz, A.A. Kaya, Creep resistant magnesium alloys for powertrain applications, Adv. Eng. Mater. 5 (2003) 866-878.

DOI: 10.1002/adem.200300403

[3] Y. Kawamura, T. Kasahara, S. Izumi, M. Yamasaki, Elevated temperature Mg97Y2Cu1 alloy with long period ordered structure, Scripta Mater. 55 (2006) 453-456.

DOI: 10.1016/j.scriptamat.2006.05.011

[4] X.H. Shao, Z.Q. Yang, X.L. Ma, Strengthening and toughening mechanisms in Mg–Zn–Y alloy with a long period stacking ordered structure, Acta Mater. 58 (2010) 4760-4771.

DOI: 10.1016/j.actamat.2010.05.012

[5] J.P. Hirth, J. Lothe, Theory of Dislocation, 2nd ed., Wiley, New York, (1982).

[6] W.W. Hu, Z.Q. Yang, H.Q. Ye: submitted to Scripta Materialia (2016).

[7] H. Suzuki, Chemical interaction of solute atoms with dislocations, Report of Resarch Institute of Tohoku University, A4 (1952) 455-463.

[8] Z.Q. Yang, M.F. Chisholm, G. Duscher, X.L. Ma, S.J. Pennycook, Direct observation of dislocation dissociation and Suzuki segregation in a Mg-Zn-Y alloy by aberration-corrected scanning transmission electron microscopy, Acta Mater. 61 (2013).

DOI: 10.1016/j.actamat.2012.09.067

[9] Z.Q. Yang, H.Q. Ye, Strengthening mechanisms in Mg97Zn1Y2 alloys, in: M.V. Manuel, A. Singh, M. Alderman, N.R. Neelamegghan (Eds. ), Mg Tech. 2015, TMS-Wiley, Orlando, 2015, pp.295-299.

DOI: 10.1007/978-3-319-48185-2_55
