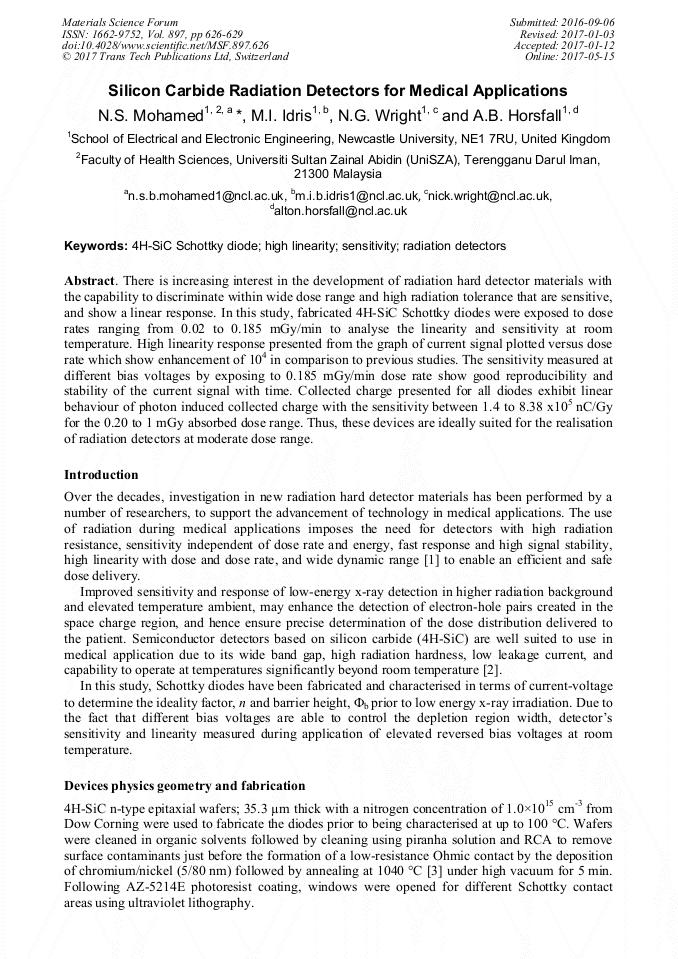

Silicon Carbide Radiation Detectors for Medical Applications

Abstract:

There is increasing interest in the development of radiation hard detector materials with the capability to discriminate within wide dose range and high radiation tolerance that are sensitive, and show a linear response. In this study, fabricated 4H-SiC Schottky diodes were exposed to dose rates ranging from 0.02 to 0.185 mGy/min to analyse the linearity and sensitivity at room temperature. High linearity response presented from the graph of current signal plotted versus dose rate which show enhancement of 10⁴ in comparison to previous studies. The sensitivity measured at different bias voltages by exposing to 0.185 mGy/min dose rate show good reproducibility and stability of the current signal with time. Collected charge presented for all diodes exhibit linear behaviour of photon induced collected charge with the sensitivity between 1.40 to 8.38 x 10⁵ nC/Gy for the 0.20 to 1 mGy absorbed dose range. Thus, these devices are ideally suited for the realisation of radiation detectors at moderate dose range.

• Periodical: Materials Science Forum (Volume 897)
• Pages: 626-629
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.897.626
• Online since: May 2017
• Authors: Nurul S. Mohamed*, Muhammad I. Idris, Nick G. Wright, Alton B. Horsfall
• Keywords: 4H-SiC Schottky Diode, High Linearity, Radiation Detectors, Sensitivity

References

[1] M. Bruzzi, M. Bucciolini, M. Casati, D. Menichelli, C. Talamonti, C. Piemonte, and B. G. Svensson, Epitaxial silicon devices for dosimetry applications, Appl. Phys. Lett. 90 (2007) 17-19.

DOI: 10.1063/1.2723075

[2] G. Bertuccio, G. Puglisi, D. Macera, R. Di Liberto, M. Lamborizio, and L. Mantovani, Silicon Carbide Detectors for in vivo Dosimetry, IEEE Trans. Nucl. Sci. 61 (2014) 961-966.

DOI: 10.1109/tns.2014.2307957

[3] I. P. Nikitina, K. V. Vassilevski, N. G. Wright, A. B. Horsfall, A. G. O'Neill and C. M. Johnson, Formation and role of graphite and nickel silicide in nickel based Ohmic contacts to n-type silicon carbide, J. Appl. Phys. 97 (2005) 83709.

DOI: 10.1063/1.1872200

[4] K. V. Vassilevski, I. P. Nikitina, N. G. Wright, A. B. Horsfall, A. G. O'Neill and C. M. Johnson, Device processing and characterisation of high temperature silicon carbide Schottky diodes, Microelectron. Eng. 83 (2006) 150-154.

DOI: 10.1016/j.mee.2005.10.041

[5] I. P. Nikitina, K. V. Vassilevski, A. B. Horsfall, N. G. Wright, A. G. O'Neill and C. M. Johnson, T. Yamamoto, and R. K. Malhan Structural pattern formation in titanium-nickel contacts on silicon carbide following high-temperature annealing, Semicond. Sci. Technol. 21 (2006).

DOI: 10.1088/0268-1242/21/7/013

[6] S. K. Cheung and N. W. Cheung, Extraction of Schottky diode parameters from forward current-voltage characteristics, Appl. Phys. Lett. 49 (1986) 85-87.

DOI: 10.1063/1.97359

[7] E. H. Rhoderick and R. H. Williams, Metal-semiconductor Contacts. University Press, Oxford, (1988).

[8] M. Bruzzi, F. Nava, S. Russo, S. Sciortino, and P. Vanni, Characterisation of silicon carbide detector response to electron and photon irradiation, Diam. Relat. Mater. 10 (2001) 657-661.

DOI: 10.1016/s0925-9635(00)00380-0

[9] M. Bruzzi, F. Nava, S. Pini, and S. Russo, High quality SiC applications in radiation dosimetry, Appl. Surf. Sci. 184 (2001) 425-430.

DOI: 10.1016/s0169-4332(01)00528-1
