High Temperature Reliability Assessment and Degradation Analysis for Diamond Semiconductor Devices

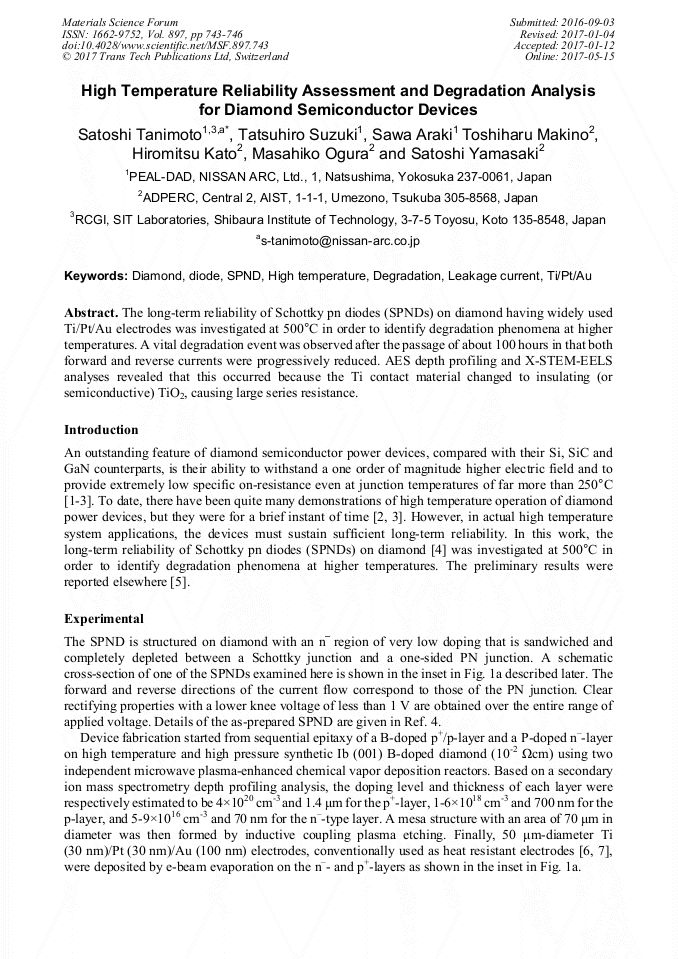

Article Preview

Abstract:

The long-term reliability of Schottky pn diodes (SPNDs) on diamond having widely used Ti/Pt/Au electrodes was investigated at 500°C in order to identify degradation phenomena at higher temperatures. A vital degradation event was observed after the passage of about 100 hours in that both forward and reverse currents were progressively reduced. AES depth profiling and X-STEM-EELS analyses revealed that this occurred because the Ti contact material changed to insulating (or semiconductive) TiO2, causing large series resistance.

You might also be interested in these eBooks
Silicon Carbide and Related Materials 2016 View Preview

Info:

Periodical:

Materials Science Forum (Volume 897)

Pages:

743-746

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.897.743

Citation:

Cite this paper

Online since:

May 2017

Authors:

Satoshi Tanimoto*, Tatsuhiro Suzuki, Sawa Araki, Toshiharu Makino, Hiromitsu Kato, Masahiko Ogura, Satoshi Yamasaki

Keywords:

Degradation, Diamond, Diode, High Temperature, Leakage Current, SPND, Ti/Pt/Au

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2017 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] J. E. Field (Ed. ), The Properties of Natural and Synthetic Diamond, Academic Press Ltd., London, (1992).

Google Scholar

[2] T. H. Borst, S. Strobel, O. Weis, High-temperature diamond p-n junction: B-doped homoepitaxial layer on N-doped substrate, Appl. Phys. Lett. 67 (1995) 2651-2653.

DOI: 10.1063/1.114325

Google Scholar

[3] T. Makino, H. Kato, M. Ogura, H. Watanabe, S. -G. Ri, Y.G. Chen, S. Yamasaki, H. Okushi, Electrical and optical characterizations of (001)-oriented homoepitaxial diamond p–n junction, Diamond & Related Materials 15 (2006) 513-516.

DOI: 10.1016/j.diamond.2005.11.021

Google Scholar

[4] T. Makino, S. Tanimoto, Y. Hayashi, H. Kato, N. Tokuda, M. Ogura, D. Takeuchi, K. Oyama, H. Ohashi, H. Okushi, S. Yamasaki, Diamond Schottky-pn diode with high forward current density and fast switching operation, Appl. Phys. Lett. 94 (2009).

DOI: 10.1063/1.3159837

Google Scholar

[5] S. Tanimoto, N. Kiritani, T. Makino, M. Ogura, N. Tokuda, H. Kato, S. Yamasaki, H. Okushi, Reliability Issues for Diamond Electron Devices Operated at High Temperature, Extended Abstracts, 27 p-K-13, JAPS Spring Meeting (Funabashi, Chiba, Japan), March 27th, (2018).

Google Scholar

[6] H.A. Hoff, G.L. Waytena, C.L. Vold, J.S. Suehle, I.P. Isaacson, M.L. Rebbert, D.I. Ma, K. Harris, Ohmic contacts to semiconducting diamond using a Ti/Pt/Au trilayer metallization scheme, Diamond & Related Materials 5 (1996) 1450-1456.

DOI: 10.1016/s0925-9635(96)00566-3

Google Scholar

[7] Y. Hoshino, Y. Saito, J. Nakata, Interdiffusion Analysis of Au/Ti and Au/Pt/Ti Electrode Structures Grown on Diamond (001) Surface by Rutherford Backscattering Spectroscopy, Jpn. J. Appl. Phys. 49 (2010) 101362.

DOI: 10.1143/jjap.49.101302

Google Scholar
