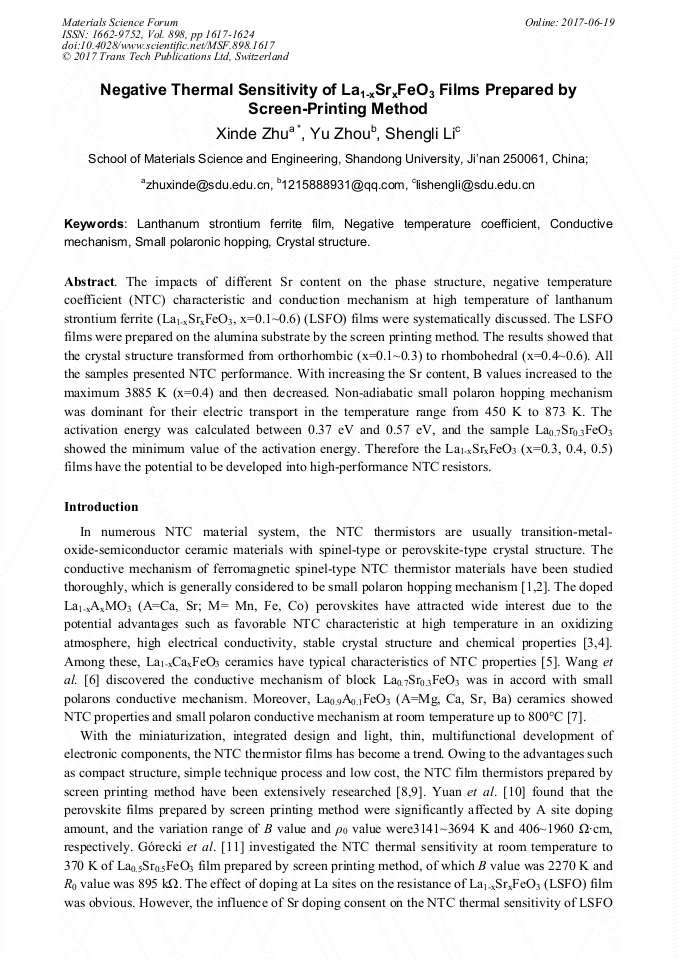

Negative Thermal Sensitivity of La_1-xSr_xFeO₃ Films Prepared by Screen-Printing Method

Abstract:

The impacts of different Sr content on the phase structure, negative temperature coefficient (NTC) characteristic and conduction mechanism at high temperature of lanthanum strontium ferrite (La_1-xSr_xFeO₃, x=0.1~0.6) (LSFO) films were systematically discussed. The LSFO films were prepared on the alumina substrate by the screen printing method. The results showed that the crystal structure transformed from orthorhombic (x=0.1~0.3) to rhombohedral (x=0.4~0.6). All the samples presented NTC performance. With increasing the Sr content, B values increased to the maximum 3885 K (x=0.4) and then decreased. Non-adiabatic small polaron hopping mechanism was dominant for their electric transport in the temperature range from 450 K to 873 K. The activation energy was calculated between 0.37 eV and 0.57 eV, and the sample La_0.7Sr_0.3FeO₃ showed the minimum value of the activation energy. Therefore the La_1-xSr_xFeO₃ (x=0.3, 0.4, 0.5) films have the potential to be developed into high-performance NTC resistors.

• Periodical: Materials Science Forum (Volume 898)
• Pages: 1617-1624
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.898.1617
• Online since: June 2017
• Authors: Xin De Zhu*, Yu Zhou, Sheng Li Li
• Keywords: Conductive Mechanism, Crystal Structure, Lanthanum Strontium Ferrite Film, Negative Temperature Coefficient, Small Polaronic Hopping

References

[1] A. Feteira, Negative temperature coefficient resistance ceramic thermistors: an industrial perspective, J. Am. Ceram. Soc. 92 (2009) 967-983.

DOI: 10.1111/j.1551-2916.2009.02990.x

[2] R. Andoulsi, K. Horchani-Naifer, M. Férid, Electrical conductivity of La1-xCaxFeO3−δ solid solutions, Ceram. Int. 39 (2013) 6527-6531.

DOI: 10.1016/j.ceramint.2013.01.085

[3] K. Park, J.K. Lee, Mn-Ni-Co-Cu-Zn-O NTC thermistors with high thermal stability for low resistance applications, Scripta Mater. 57 (2007) 329-332.

DOI: 10.1016/j.scriptamat.2007.04.026

[4] Tian Xiao, Wang Hong-yu, Duan Ru-xia, et al., Effects of particle size of AB3. 8-type La0. 75Mg0. 25Ni3. 3Co0. 5 alloy on its electrochemical performances, Chin. Rare-Earths 36 (2015) 102-106.

[5] Refka Andoulsi, Karima Horchani-Naifer, Mokhtar Ferid, Electrical conductivity of La1-xCaxFeO3-δ solid solutions, Ceram. Int. 39 (2013) 6527-6531.

DOI: 10.1016/j.ceramint.2013.01.085

[6] Wang Hong-chao, Wang Chun-lei, Su Wen-bin, et al., Influence of sintering temperature on thermoelectric properties of La0. 9Sr0. 1FeO3 ceramics, Acta Phys. Sin-Ch ED, 59 (2010) 3455-3460.

DOI: 10.7498/aps.59.3455

[7] Na Yin, Hongchao Wang, Chunlei Wang. Synthesis, electrical conductivity and seebeck coeffcient of La0. 9A0. 1FeO3 (A=Mg, Ca, Sr, Ba), J. Mater. Sci. Tech. 26 (2010) 1103-1106.

DOI: 10.1016/s1005-0302(11)60008-x

[8] C.L. Yuan, X.Y. Liu, C.R. Zhou, et al., Electrical properties of lead-free thick film NTC thermistors based on perovskite-type BaCoIIxCoIII2xBi1−3xO3, Mater. Lett. 65 (2011) 836-839.

DOI: 10.1016/j.matlet.2010.12.013

[9] Cui Xue-ying, Li Sheng-li, Sun Liang-cheng, et al., Effect of organic carrier on microstructure and properties of La1-xSrxFeO3 films, Chin. Rare-Earths 35 (2014) 67-71.

[10] Changlai Yuan, Xinyu Liu, Meifang Liang, et al., Electrical properties of Sr-Bi-Mn-Fe-O thick-film NTC thermistors prepared by screen printing, Sensor. Actuat. A-Phys 167 (2011) 291-296.

DOI: 10.1016/j.sna.2011.02.047

[11] K. Górecki, W.J. Stepowicz, A. Lozinski, Thermal performance of LSCO and LSFO films for IR detectors, Optical Methods, Sensors, Image Processing, and Visualization in Medicine5505 (2004) 184-188.

DOI: 10.1117/12.577905

[12] A. Fossdal, M. Menon, I. Wærnhus, et al., Crystal structure and thermal expansion of La1-xSrxFeO3−δ materials, J. Am. Ceram. Soc. 87 (2004) 1952-(1958).

DOI: 10.1111/j.1151-2916.2004.tb06346.x

[13] I.M. Reaney, E.L. Colla, N. Setter, Dielectric and structural characteristics of Ba-and Sr-based complex perovskites as a function of tolerance factor, Jpn. J. Appl. Phys. 33 (1994) 3984-3990.

DOI: 10.1143/jjap.33.3984

[14] A.M. Glazer, The classification of tilted octahedra in Perovskites, Acta Cryst. B48 (1972) 3384-3391.

[15] Z.C. Xu, C.C. Chen, X.N. Ying, Oxygen vacanicies and their effects on tiling transition in perovskite investigated by mechanical spectroscopy, Appl. Phys. Lett. 105 (2014) 061905-061905-5.

[16] J. Blasco, B. Aznar, J. García, et al., Charge disproportionation in La1-xSrxFeO3 probed by diffraction and spectroscopic experiments, Phys. Rev. B 77 (2008) 439-446.

[17] He Lin, The preparation and properties of bulk, thick film and thin film NTC thermistors, South China University of Technology, Guang Zhou, (2012).

[18] Yuan Chang-lai. The preparation and IS-based electrical properties of high-performance NTC ceramics and thick films , Central South University, Chang Sha, (2012).

[19] G. Zhao, M.B. Hunt, H. Keller, Strong oxygen-mass dependence of the thermal-expansion coefficient in the manganites (La1-xCax)1-yMn1-yO3, Phy. Rev. Lett. 78 (1997) 955-958.

[20] G.C. Kostogloudis, C. Ftikos, Properties of A-site-deficient La0. 6Sr0. 4Co0. 2Fe0. 8O3-δ based perovskite oxides, Solid State Ionics 126 (1999) 143-151.

DOI: 10.1016/s0167-2738(99)00230-1

[21] Chen Yong-hong, Wei Yi-jun, Liu Xing-qin, et al., Characterization and properties of La1-xSrxFeO3-δ with perovskite-type structure, Chin. J. Inorg. Chem. 22 (2006) 31-36.

[22] Chul Hyun Yo, Ile Young Jung, Kwang Hyun Ryu, et al., A study of the nonstoichiometry and physical properties of the perovskite Nd1-xCaxFeO3-y system, J. Solid State Chem. 114 (1995) 265-270.

DOI: 10.1006/jssc.1995.1038

[23] R. Koc, H.U. Anderson, Electrical and thermal transport properties of (La, Ca)(Cr, Co)O3, J. Eur. Ceram. Soc. 15 (1995) 867-874.

DOI: 10.1016/0955-2219(95)93617-c

[24] K. Vidal, L.M. Rodríguez-Martínez, L. Ortega-San-Martín, et al., Isolating the effect of doping in the structure and conductivity of Ln1-xMxFeO3-δ perovskites, Solid State Ionics, 178 (2007) 1310-1316.

DOI: 10.1016/j.ssi.2007.06.015
