Measurement of Resistivity of Silicon Carbide by Discharge Time of Equivalent Capacitance of the Sample

Abstract:

According to the Classical Electrical Theory of Capacitor-to-Resistance Discharge, the Sample of Sic can Be Equivalent to a Parallel Circuit of Resistance and Capacitance. due to the High Resistance of the Wideband-Gap Semiconductors and the Long Discharge Time of the Capacitance, the Samples Resistivity can Be Calculated Manually or by Computer by Applying a Pulse Voltage to the Sample and then Accurately Measuring its Discharge Time. the Measuring Equipment Consists of Sample Stage, Pulse Generator, Charge Converter and Digital Oscilloscope. if High-Speed Data Acquisition Card and Industrial Computer are Used Instead of the Digital Oscilloscope, the Measurement Repeatability can Be Better than 1%, and the Measurement Range is within 10⁴-10¹²Ω•cm.

You might also be interested in these eBooks

Semiconductors: Silicon Carbide and Related Materials

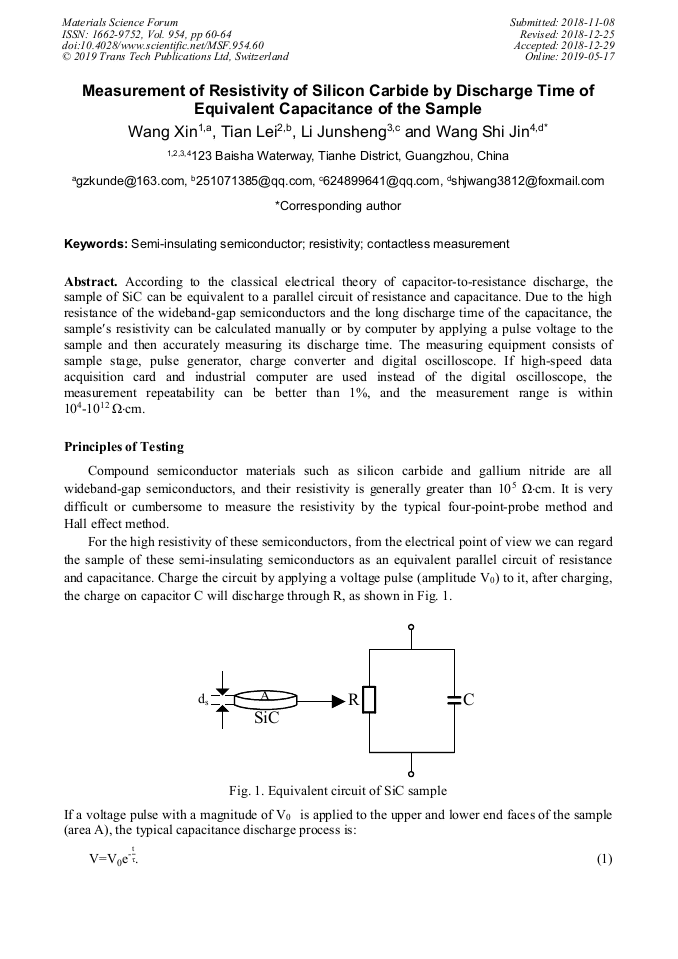

View Preview

Info:

Periodical:

Materials Science Forum (Volume 954)

Pages:

60-64

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.954.60

Citation:

Cite this paper

Online since:

May 2019

Authors:

Xin Wang*, Lei Tian, Jun Sheng Li, Shi Jin Wang

Keywords:

Contactless Measurement, Resistivity, Semi-Insulating Semiconductor

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Stibal, R., Windscheif, J. and Jantz, W., Contactless evaluation of semi-insulating GaAs wafer resistivity using time-dependent charge measurement. Semicond. Sci. Technol. 1991: 6, 995-1001.

DOI: 10.1088/0268-1242/6/10/008

Google Scholar

[2] Wu Hua, Hao Jianmin, Feng Bin, Hong Ying, Non-contact method for measuring resistivity of SI-SiC. The 46th Research Institute. Semiconductor Technology Vol.35 No.5 462-464.

Google Scholar

[3] Qin Tao, He Xiukun, Dong Yanhui, Li Jie, Determination of the Resistivity of Semi-insulating Semiconductors by Non-contact Measurement. Electronic Sci. & Tech./May. 15,2009. 66-68.

Google Scholar

[4] DIN50448: Contactless determination of the electrical resistivity of semi-insulation semiconductor slices using a capacitive probe. January (1998).

Google Scholar

[5] SEMIMAP Presentation China.

Google Scholar

[6] Wang Xin, Li Junsheng, Tian Lei, Ye Canming, Research on semi-insulating semiconductor resistivity non-contact test equipment, Instrumentation User (Istrumentation) vol.25 2018 No.2.

Google Scholar
