Evaluation of the Impact of Al Atoms on SiO2/ SiC Interface Property by Using 4H-SiC n+-Channel Junctionless MOSFET

Hironori Takeda; Takuji Hosoi; Takayoshi Shimura; Heiji Watanabe

doi:10.4028/www.scientific.net/MSF.963.171

Paper Titles

Vapor Growth of 3C-SiC Using the Transition Layer of 3C-SiC on Si CVD Templates
p.149

Novel Carbon Treatment to Create an Oriented 3C-SiC Seed on Silicon
p.153

Modeling of the PVT Growth Process of Bulk 3C-SiC - Growth Process Development and Challenge of the Right Materials Data Base
p.157

Structural Strain in Single Layer Graphene Fabricated on SiC
p.161

Evaluation of the Impact of Al Atoms on SiO₂/ SiC Interface Property by Using 4H-SiC n⁺-Channel Junctionless MOSFET
p.171

Cryogenic Characterization of NH₃ Post Oxidation Annealed 4H-SiC Trench MOSFETs
p.175

Surface Morphology of 4H-SiC after Thermal Oxidation
p.180

Subthreshold Drain Current Hysteresis of Planar SiC MOSFETs
p.184

Accurate Dopant and Interface Characterization in Oxidized SiC with Refined Non-Contact C-V Technique
p.189

HomeMaterials Science ForumMaterials Science Forum Vol. 963Evaluation of the Impact of Al Atoms on SiO2/ SiC...

Evaluation of the Impact of Al Atoms on SiO₂/ SiC Interface Property by Using 4H-SiC n⁺-Channel Junctionless MOSFET

Abstract:

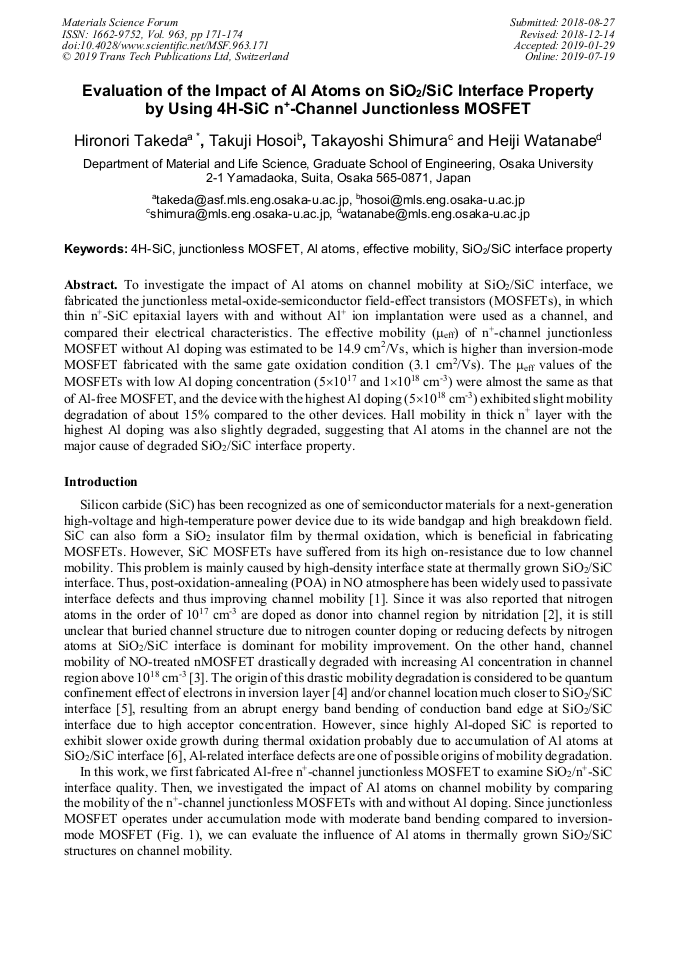

To investigate the impact of Al atoms on channel mobility at SiO₂/SiC interface, we fabricated the junctionless metal-oxide-semiconductor field-effect transistors (MOSFETs), in which thin n⁺-SiC epitaxial layers with and without Al⁺ ion implantation were used as a channel, and compared their electrical characteristics. The effective mobility (m_eff) of n⁺-channel junctionless MOSFET without Al doping was estimated to be 14.9 cm²/Vs, which is higher than inversion-mode MOSFET fabricated with the same gate oxidation condition (3.1 cm²/Vs). The m_eff values of the MOSFETs with low Al doping concentration (5´10¹⁷ and 1´10¹⁸ cm^-3) were almost the same as that of Al-free MOSFET, and the device with the highest Al doping (5´10¹⁸ cm^-3) exhibited slight mobility degradation of about 15% compared to the other devices. Hall mobility in thick n⁺ layer with the highest Al doping was also slightly degraded, suggesting that Al atoms in the channel are not the major cause of degraded SiO₂/SiC interface property.

You might also be interested in these eBooks

Silicon Carbide and Related Materials 2018

View Preview

Info:

Periodical:

Materials Science Forum (Volume 963)

Pages:

171-174

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.963.171

Citation:

Cite this paper

Online since:

July 2019

Authors:

Hironori Takeda*, Takuji Hosoi, Takayoshi Shimura, Heiji Watanabe

Keywords:

4H-SiC, Al Atoms, Effective Mobility, Junctionless MOSFET, SiO₂/SiC Interface Property
