Defect Removal, Dopant Diffusion and Activation Issues in Ion-Implanted Shallow Junctions Fabricated in Crystalline Germanium Substrates

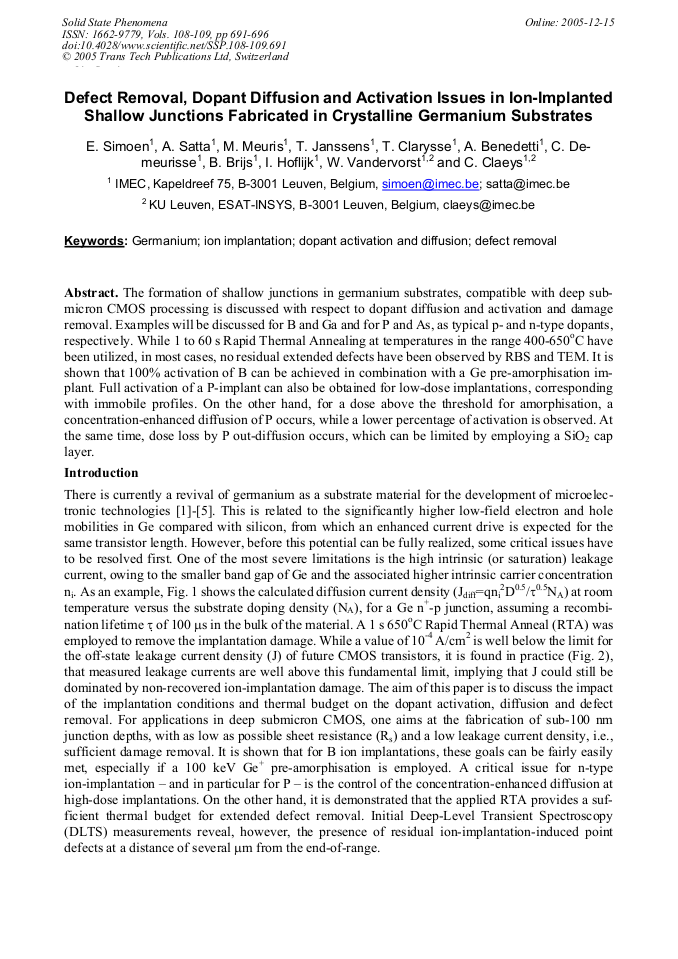

Article Preview

Abstract:

The formation of shallow junctions in germanium substrates, compatible with deep submicron CMOS processing is discussed with respect to dopant diffusion and activation and damage removal. Examples will be discussed for B and Ga and for P and As, as typical p- and n-type dopants, respectively. While 1 to 60 s Rapid Thermal Annealing at temperatures in the range 400-650oC have been utilized, in most cases, no residual extended defects have been observed by RBS and TEM. It is shown that 100% activation of B can be achieved in combination with a Ge pre-amorphisation implant. Full activation of a P-implant can also be obtained for low-dose implantations, corresponding with immobile profiles. On the other hand, for a dose above the threshold for amorphisation, a concentration-enhanced diffusion of P occurs, while a lower percentage of activation is observed. At the same time, dose loss by P out-diffusion occurs, which can be limited by employing a SiO2 cap layer.

You might also be interested in these eBooks

Gettering and Defect Engineering in Semiconductor Technology XI

Info:

Periodical:

Solid State Phenomena (Volumes 108-109)

Pages:

691-696

DOI:

https://doi.org/10.4028/www.scientific.net/SSP.108-109.691

Citation:

Cite this paper

Online since:

December 2005

Authors:

Eddy Simoen, A. Satta, Marc Meuris, Tom Janssens, T. Clarysse, A. Benedetti, C. Demeurisse, B. Brijs, I. Hoflijk, W. Vandervorst, Cor Claeys

Keywords:

Defect Removal, Dopant Activation, Dopant Diffusion, Germanium, Ion Implantation

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2005 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] C.O. Chui, H. Kim, D. Chi, B.B. Triplett, P.C. McIntyre and K.C. Saraswat: IEDM Techn. Dig. (2002), p.437.

[2] H. Shang, H. Okorn-Schmidt, J. Ott, P. Kozlowski, S. Steen, E.C. Jones, H. -S.P. Wong and W. Hanesch: IEEE Electron Device Lett. Vol. 24 (2003), p.242.

DOI: 10.1109/led.2003.810879

[3] A. Ritenour, S. Yu, M.L. Lee, N. Lu, W. Bai, A. Pitera, E.A. Fitzgerald, D.L. Kwong and D.A. Antoniadis: IEDM Techn. Dig. (2003), p.433.

[4] S. Takagi, T. Mizumo, T. Tezuka, N. Sugiyama, T. Numata, K. Usuda, Y. Moriyama, S. Nakaharai, J. Koga, A. Tanabe, N. Hirashita and T. Maeda: IEDM Techn. Dig. (2003), pp.03-57.

DOI: 10.1109/iedm.2003.1269165

[5] D.S. Yu, K.C. Chiang, C.F. Cheng, A. Chin, C. Zhu, M.F. Li and D. -L. Kwong: IEEE Electron Device Lett. Vol. 25 (2004), p.559.

[6] A. Satta, E. Simoen, T. Clarysse, T. Janssens, A. Benedetti, B. De Jaeger, M. Meuris, W. Vandervorst: submitted for publication in Appl. Phys. Lett.

DOI: 10.1063/1.2117631

[7] I.H. Wilson: J. Appl. Phys. Vol. 53 (1982), p.1698.

[8] B.R. Appleton, O.W. Holland, J. Narayan, O.E. Schow III, J.S. Williams, K.T. Short and E. Lawson: Appl. Phys. Lett. Vol. 41 (1982), p.711.

DOI: 10.1063/1.93643

[9] S. Uppal, A.F.W. Willoughby, J.M. Bonar, A.G.R. Evans, N.E.B. Cowern, R. Morris and M.G. Dowsett: Physica B Vol. 308 (2001), p.525.

DOI: 10.1016/s0921-4526(01)00752-9

[10] S. Uppal, A. F. W. Willoughby, J. M. Bonar, N. E. B. Cowern, T. Grasby, R. J. H. Morris and M. G. Dowsett: J. Appl. Phys. Vol. 96 (2004), p.1376.

DOI: 10.1063/1.1766090

[11] S. Uppal, A. F. W. Willoughby, J. M. Bonar, A. G. R. Evans, N. E. B. Cowern, R. Morris and M. G. Dowsett: J. Appl. Phys. Vol. 90 (2001), p.4293.

[12] A. Satta, T. Janssens, T. Clarysse, E. Simoen, M. Meuris, A. Benedetti, I. Hoflijk, B. De Jaeger, C. Demeurisse and W. Vandervorst: Proceeding of AVS Ultra Shallow Junctions 8th International Workshop, June 5-8, 2005, Florida, USA.

DOI: 10.4028/www.scientific.net/ssp.108-109.691

[13] N. Kh. Abrikosov, V.M. Glasov and C. -Y. Lin: Russ. J. Inorg. Chem. Vol. 7 (1962), p.429.

[14] S. Matsumoto and T. Niimi: J. Electrochem. Soc. Vol. 125 (1978), p.1307.

[15] G. G. Devyatykh, V. K. Vasile'ev, V. A. Gavva, A. V. Gusev, Yu. A. Danilov, E.S. Zharkov and G. A. Maksimov: Inorg. Mat. Vol. 32 (1996), p.1258.

[16] C. O. Chui, K. Gopalakrishnan, P. B. Griffin, J. D. Plummer and K. C. Saraswat: Appl. Phys. Lett. Vol. 83 (2003), p.3275.

[17] S. Solmi, P. Maccagnani and R. Canteri: J. Appl. Phys Vol. 74 (1993), p.5005.

[18] S. Solmi and M. Bersani: J. Appl. Phys Vol. 87 (2000), p.3696.

[19] J. Fage-Pedersen, A. Nylandsted Larsen and A. Mesli: Phys. Rev. B Vol. 62 (2000), p.10116.

[20] T. Clarysse, D. Vanhaeren, I. Hoflijk and W. Vandervorst: Materials Science and Engineering Vol. R 47 (2004), p.123.
