Effect of Hydrogen for Preservation of Reconstructed Surfaces

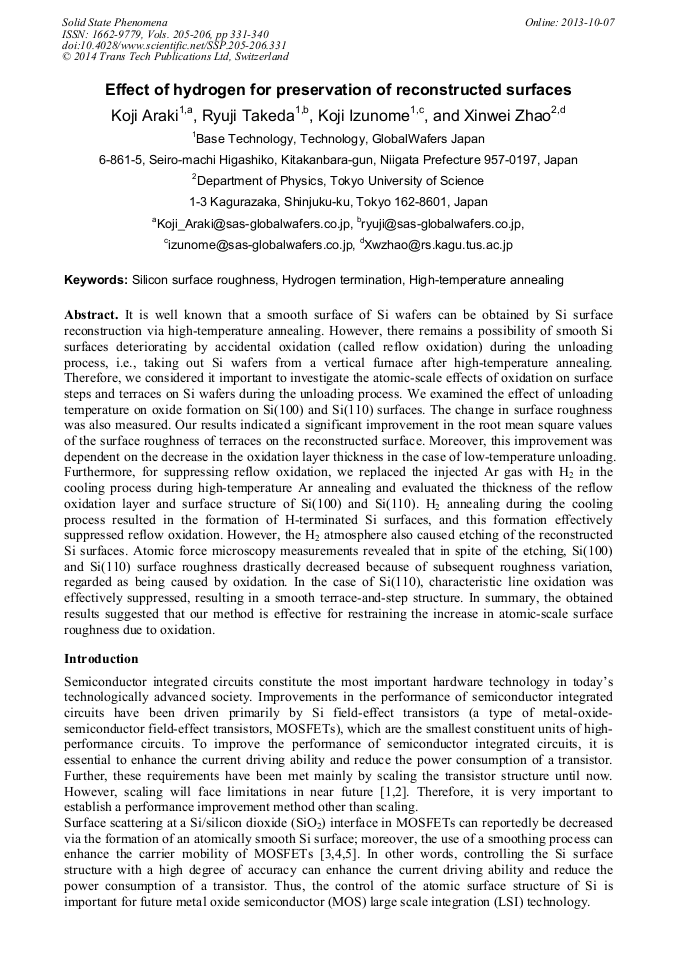

Article Preview

Abstract:

It is well known that a smooth surface of Si wafers can be obtained by Si surface reconstruction via high-temperature annealing. However, there remains a possibility of smooth Si surfaces deteriorating by accidental oxidation (called reflow oxidation) during the unloading process, i.e., taking out Si wafers from a vertical furnace after high-temperature annealing. Therefore, we considered it important to investigate the atomic-scale effects of oxidation on surface steps and terraces on Si wafers during the unloading process. We examined the effect of unloading temperature on oxide formation on Si (100) and Si (110) surfaces. The change in surface roughness was also measured. Our results indicated a significant improvement in the root mean square values of the surface roughness of terraces on the reconstructed surface. Moreover, this improvement was dependent on the decrease in the oxidation layer thickness in the case of low-temperature unloading. Furthermore, for suppressing reflow oxidation, we replaced the injected Ar gas with H2 in the cooling process during high-temperature Ar annealing and evaluated the thickness of the reflow oxidation layer and surface structure of Si (100) and Si (110). H2 annealing during the cooling process resulted in the formation of H-terminated Si surfaces, and this formation effectively suppressed reflow oxidation. However, the H2 atmosphere also caused etching of the reconstructed Si surfaces. Atomic force microscopy measurements revealed that in spite of the etching, Si (100) and Si (110) surface roughness drastically decreased because of subsequent roughness variation, regarded as being caused by oxidation. In the case of Si (110), characteristic line oxidation was effectively suppressed, resulting in a smooth terrace-and-step structure. In summary, the obtained results suggested that our method is effective for restraining the increase in atomic-scale surface roughness due to oxidation.

You might also be interested in these eBooks

Info:

Periodical:

Solid State Phenomena (Volumes 205-206)

Pages:

331-340

Citation:

Online since:

October 2013

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2014 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] C.A. Mack, Fifty Years of Moore's Law, IEEE Transactions on Semiconductor Manufacturing 24 (2) (2011) 202-207.

Google Scholar

[2] L.B. Kish, End of Moore's Law: thermal (noise) death of integration in micro and nano elecronics, Phys. Lett. A 305 (3-4) (2002) 144-149.

DOI: 10.1016/s0375-9601(02)01365-8

Google Scholar

[3] T. Okada, R. Takeda, H. Kubota, Y. Matsushita, Surface roughness scattering model developments for p-MOS Monte Carlo tool and mobility discussion about wafer orientation/morphology, Proc. 12th Int. Workshop Computational Electronics (IWCE) (2007).

Google Scholar

[4] M.V. Fischetti, S.E. Laux, Monte Carlo study of electron transport in silicon inversion layers, Phys. Rev. B 48 (1993) 2244.

DOI: 10.1103/physrevb.48.2244

Google Scholar

[5] T. Hamada, A. Teramoto, H. Akahori, K. Nii, T. Suwa, M. Hirayama, T. Ohmi, High Performance Low Noise CMOS Fabricated on Flattened (110) oriented Si Substrate, IEICE Tech. Rep. ED 104 (153) (2004) 41-44.

DOI: 10.1109/iedm.2003.1269401

Google Scholar

[6] R. Hasunuma, J. Okamoto, N. Tokuda, K. Yamabe, Nonuniformity in Ultrathin SiO2 on Si(111) Characterized by Conductive Atomic Force Microscopy, Jpn. J. Appl. Phys. 43 (2004) 7861-7865.

DOI: 10.1143/jjap.43.7861

Google Scholar

[7] L. Zhong, H. Hojo, Y. Matsushita, Y. Aiba, K. Hayashi, R. Takeda, H. Shirai, H. Saito, J. Matsushita, J. Yoshikawa, Evidence of spontaneous formation of steps on silicon (100), Phys. Rev. B 54 (1996) R2304-R2307.

DOI: 10.1103/physrevb.54.r2304

Google Scholar

[8] L. Zhong, H. Hojo, Y. Aiba, K. Chaki, J. Yoshikawa, K. Hayashi, Atomic steps on silicon (001) surface tilted toward an arbitrary direction, Appl. Phys. Lett. 68 (13) (1996) 1823-1825.

DOI: 10.1063/1.116025

Google Scholar

[9] H. Tokumoto, Y. Morita, Structure of Hydrogen-Passivated Si surfaces Studied by STM, Hyomen Kagaku 17 (1996) 516-522 [in Japanese].

DOI: 10.1380/jsssj.17.516

Google Scholar

[10] Y. Kumagai, K. Namba, T. Komeda, Y. Nishioka, Formation of periodic step and terrace structure on Si(100) surface during annealing in hydrogen diluted with inert gas, J. Vac. Sci. Technol. A 16 (1998) 1775-1778.

DOI: 10.1116/1.581301

Google Scholar

[11] K. Ohsawa, Y. Kogure, K. Araki, H. Isogai, R. Takeda, Y. Matsushita, R. Hasunuma, K. Yamabe, Uniform Growth of Ulltrathin SiO2 Films (2)--Roughness of Thermal Oxide Grown on Si(100) and Si(110) Surfaces, Ext. Abstr. (55th Spring Meet 2008), Japan Society of Applied Physics and Related Societies, 27a-X-4, p.837.

Google Scholar

[12] K. Araki, H. Isogai, R. Takeda, K. Izunome, Y. Matsushita, N. Takahashi, X. Zhao, Effect of Reflow Oxidation on Si Surface Roughness during High-Temperature Annealing, Jpn. J. Appl. Phys. 48 (2009) 06FE05-1-06FE05-4.

DOI: 10.1143/jjap.48.06fe05

Google Scholar

[13] N. Araki, Influence of Electrostatic Charge on Recombination Lifetime and Native Oxide Growth on HF-Treated Silicon Wafers, Jpn. J. Appl. Phys. 48 (2009) 011201-1-011201-8.

DOI: 10.1143/jjap.48.011201

Google Scholar

[14] K. Araki, H. Isogai, R. Takeda, K. Izunome, Y. Matsushita, X. Zhao, Effect of Hydrogen Termination on Surface Roughness Variation of Si(110) by Reflow Oxidation during High-Temperature Ar Annealing, Jpn. J. Appl. Phys. 49 (2010).

DOI: 10.1143/jjap.49.085701

Google Scholar

[15] K. Araki, H. Isogai, R. Takeda, K. Izunome, X. Zhao, Variation in Si(100) surface roughness caused by H-termination during high-temperature Ar annealing, Journal of Crystal Growth 318 (2011) 84-88.

DOI: 10.1016/j.jcrysgro.2010.11.015

Google Scholar

[16] Y. Kimura, M. Niwano, INITIAL STAGE OF ETCHING OF SI ELECTRODE SURFACES INVESTIGATED BY SURFACE INFRARED SPECTROSCOPY Electrochem. Soc. Proc. 2000-25 (2001) pp.82-89.

Google Scholar

[17] J. Kuge, M. Terashi, M. Niwano, In-situ IR study of hydrogen adsorption on Si surface, IEICE Tech. Rep. SDM 97 (1997) 25-30 [in Japanese].

Google Scholar

[18] T. Fujii, M. Tanabe, Measurement of Film Thickness with XPS, Shimadzu Hyoron 47 (1990) 89 [in Japanese].

Google Scholar

[19] M. Suemitsu, Y. Enta, Y. Miyanishi, Y. Takegawa, M. Miyamoto, Transition from random to island growth mode during Si(100)-(2×1) dry oxidation and its description with autocatalytic reaction model, Appl. Sur. Sci. 162-163 (2000) 293-298.

DOI: 10.1016/s0169-4332(00)00206-3

Google Scholar

[20] H. Watanabe, K. Kato, T. Uda, K. Fujita, M. Ichikawa, T. Kawamura, K. Terakura, Kinetics of Initial Layer-by-Layer Oxidation of Si(001) Surfaces, Phys. Rev. Lett, 80 (1998) 345-348.

DOI: 10.1103/physrevlett.80.345

Google Scholar

[21] H. Akahori, K. Nii, K. Tsukamoto, A. Teramoto, T. Ohmi, Control of Native Oxide Growth on Silicon Surface, IEICE Tech. Rep. SDM 187 (2004) 23-28 [in Japanese].

Google Scholar

[22] H. Habuka, H. Tsunoda, M. Mayusumi, N. Tate, M. Katayama, Roughness of silicon surface heated in hydrogen ambient, J. Electrochem. Soc. 142 (9) (1995) 3092-3097.

DOI: 10.1149/1.2048694

Google Scholar

[23] B.M. Gallois, T.M. Besmann, M.W. Stott, Chemical etching of silicon (100) by hydrogen, J. Am. Ceram. Soc. 77 (11) (1994) 2949-2952.

DOI: 10.1111/j.1151-2916.1994.tb04529.x

Google Scholar

[24] T. Bauer, A. Ehlert, H. Franke, S. Weizbauer, Etching of silicon, Shirikon no kagaku (Science of silicon), Realize, Tokyo, 1996, pp.283-293.

Google Scholar

[25] M. Suemitsu, A. Kato, H. Togashi, A. Kanno, Y. Yamamoto, Y. Teraoka, A. Yoshigoe, Y. Narita, Y. Enta, Real-Time Observation of Initial Thermal Oxidation on Si(110)-16 × 2 Surfaces by O 1s Photoemission Spectroscopy Using Synchrotron Radiation, Jpn. J. Appl. Phys. 46 (2007).

DOI: 10.1143/jjap.46.1888

Google Scholar
