Spatial Distribution of the Dislocation Trails in Silicon

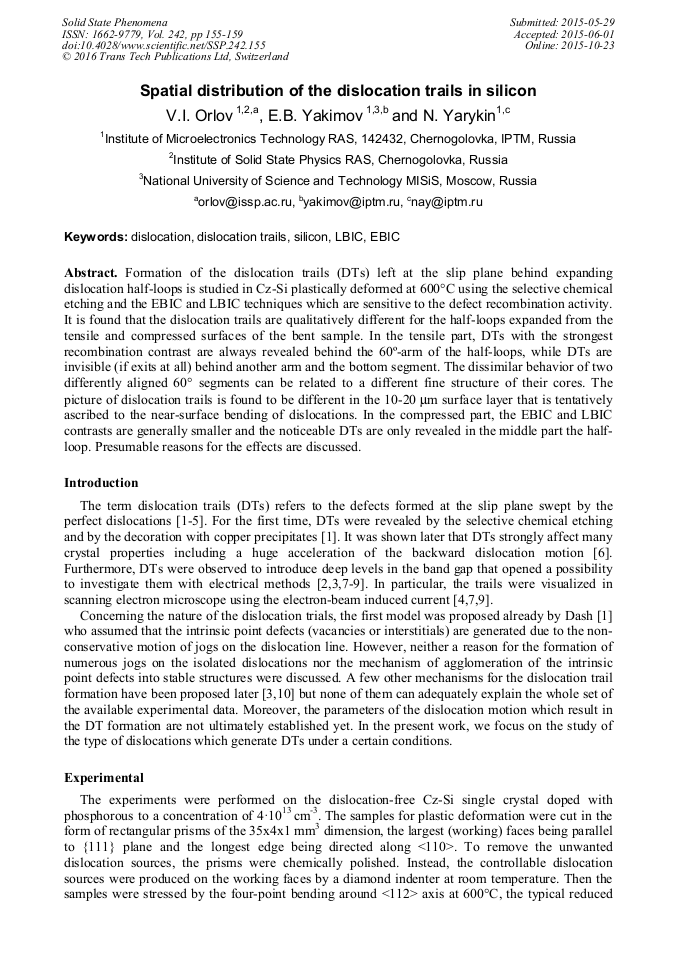

Abstract:

Formation of the dislocation trails (DTs) left at the slip plane behind expanding dislocation half-loops is studied in Cz-Si plastically deformed at 600°C using the selective chemical etching and the EBIC and LBIC techniques which are sensitive to the defect recombination activity. It is found that the dislocation trails are qualitatively different for the half-loops expanded from the tensile and compressed surfaces of the bent sample. In the tensile part, DTs with the strongest recombination contrast are always revealed behind the 60oarm of the half-loops, while DTs are invisible (if exits at all) behind another arm and the bottom segment. The dissimilar behavior of two differently aligned 60° segments can be related to a different fine structure of their cores. The picture of dislocation trails is found to be different in the 1020 μm surface layer that is tentatively ascribed to the near-surface bending of dislocations. In the compressed part, the EBIC and LBIC contrasts are generally smaller and the noticeable DTs are only revealed in the middle part the half-loop. Presumable reasons for the effects are discussed.

• Periodical: Solid State Phenomena (Volume 242)
• Pages: 155-159
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.242.155
• Online since: October 2015
• Authors: V.I. Orlov, E.B. Yakimov, Nikolai Yarykin
• Keywords: Dislocation Trails, Dislocations, Electron Beam Induced Current, Laser Beam Induced Current, Silicon

References

[1] W.C. Dash, Evidence of dislocation jogs in deformed silicon, J. Appl. Phys. 29 (1958) 705-709.

DOI: 10.1063/1.1723255

[2] V.G. Eremenko, V.I. Nikitenko, E.B. Yakimov, Anomalous anisotropy of electron mobility in plastically deformed silicon with low dislocation density, Sov. Phys. JETP Lett. 26 (1977) 65-68.

[3] I.E. Bondarenko, V.G. Eremenko, B. Ya. Farber, V.I. Nikitenko, E.B. Yakimov, On the real structure of monocrystalline silicon near dislocation slip planes, Phys. Stat. Sol. A 68 (1981) 53-60.

DOI: 10.1002/pssa.2210680107

[4] I. Bondarenko, H. Blumtritt, J. Heydenreich, V.V. Kazmiruk, E.B. Yakimov, Recombination properties of dislocation slip planes, Phys. Stat. Sol. A 95 (1986) 173-177.

DOI: 10.1002/pssa.2210950121

[5] V. Eremenko, N.V. Abrosimov, A. Fedorov, The origin and properties of new extended defects revealed by etching in plastically deformed Si and SiGe, Phys. Stat. Sol. A 171 (1999) 383.

DOI: 10.1002/(sici)1521-396x(199901)171:1<383::aid-pssa383>3.0.co;2-m

[6] V.I. Nikitenko, B. Ya. Farber, E.B. Yakimov, Asymmetry of isolated dislocation mobility in silicon single crystals, Crys. Res. Technol. 19 (1984) 295-302.

DOI: 10.1002/crat.2170190303

[7] O.V. Feklisova, E.B. Yakimov, N. Yarykin, Contribution of the disturbed dislocation slip planes to the electrical properties of plastically deformed silicon, Physica B 340-342 (2003) 1005-1008.

DOI: 10.1016/j.physb.2003.09.196

[8] O.V. Feklisova, B. Pichaud, E.B. Yakimov, Annealing effect on the electrical activity of extended defects in plastically deformed p-Si with low dislocation density, Phys. Stat. Sol. A 202 (2005) 896-900.

DOI: 10.1002/pssa.200460511

[9] O.V. Feklisova, E.B. Yakimov, Electrical properties of dislocation trails in n-Si, Phys. Stat. Sol. C 4 (2007) 3105-3109.

DOI: 10.1002/pssc.200675464

[10] D. Eyidi, V. Eremenko, J.L. Demenet, J. Rabier, TEM observations in Si: An attempt to link deformation microstructures and electrical activity, Physica B 404 (2009) 4634-4636.

DOI: 10.1016/j.physb.2009.08.134

[11] O.V. Feklisova, V.I. Orlov, E.B. Yakimov, EBIC and LBIC investigations of dislocation trails in Si, Phys. Stat. Sol. To be published (2015).

DOI: 10.1002/pssc.201400223

[12] K.H. Küster, H. Alexander, Photoplastic effect in silicon, Physica B 116 (1982) 594-599.
