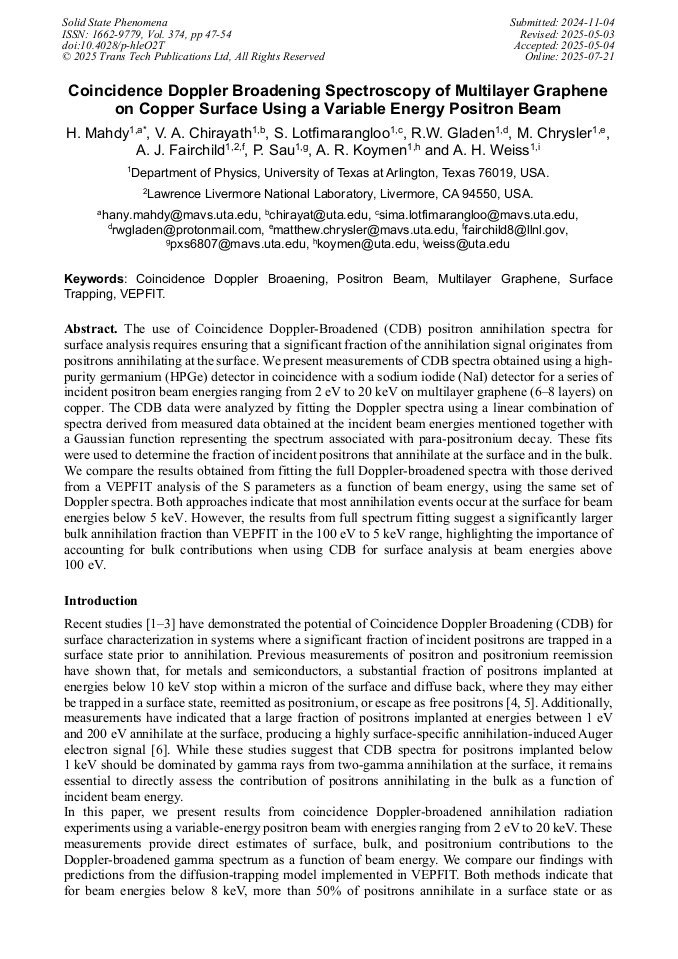

Coincidence Doppler Broadening Spectroscopy of Multilayer Graphene on Copper Surface Using a Variable Energy Positron Beam

Abstract:

The use of Coincidence Doppler-Broadened (CDB) positron annihilation spectra for surface analysis requires ensuring that a significant fraction of the annihilation signal originates from positrons annihilating at the surface. We present measurements of CDB spectra obtained using a high-purity germanium (HPGe) detector in coincidence with a sodium iodide (NaI) detector for a series of incident positron beam energies ranging from 2 eV to 20 keV on multilayer graphene (6–8 layers) on copper. The CDB data were analyzed by fitting the Doppler spectra using a linear combination of spectra derived from measured data obtained at the incident beam energies mentioned together with a Gaussian function representing the spectrum associated with para-positronium decay. These fits were used to determine the fraction of incident positrons that annihilate at the surface and in the bulk. We compare the results obtained from fitting the full Doppler-broadened spectra with those derived from a VEPFIT analysis of the S parameters as a function of beam energy, using the same set of Doppler spectra. Both approaches indicate that most annihilation events occur at the surface for beam energies below 5 keV. However, the results from full spectrum fitting suggest a significantly larger bulk annihilation fraction than VEPFIT in the 100 eV to 5 keV range, highlighting the importance of accounting for bulk contributions when using CDB for surface analysis at beam energies above 100 eV.

• Periodical: Solid State Phenomena (Volume 374)
• Pages: 47-54
• DOI: https://doi.org/10.4028/p-hleO2T
• Online since: July 2025
• Authors: H. Mahdy*, Varghese Anto Chirayath, Sima Lotfimarangloo, R.W. Gladen, M. Chrysler, A.J. Fairchild, Pratyanik Sau, Ali R. Koymen, Alex H. Weiss
• Keywords: Coincidence Doppler Broadening, Multilayer Graphene, Positron Beam, Surface Trapping, VEPFIT

References

[1] S. Lotfimarangloo, V.A. Chirayath, P.A. Sterne, H. Mahdy, R.W. Gladen, J. Driscoll, M. Rooks, M. Chrysler, A.R. Koymen, J. Asaadi, A.H. Weiss, Measurement and analysis ofthe Doppler broadened energy spectra of annihilation gamma radiation originating from clean and adsorbate-covered surfaces, arXiv preprint arXiv:2401.00581 (2023).

DOI: 10.2139/ssrn.4979266

[2] A.H. Weiss, V.A. Chirayath, R.W. Gladen, A.J. Fairchild, P.A. Sterne, S. Lotfimarangloo, E. Perez, A.R. Koymen, Elemental Characterization of the Topmost Atomic Layer of Surface Using Doppler Broadening Spectroscopy, Proc. of the 15th Int. Workshop on Slow Positron Beam Techniques and Applications, Prague, September 2–6, (2019).

DOI: 10.12693/aphyspola.137.81

[3] V.A. Chirayath, M.D. Chrysler, A.D. McDonald, R.W. Gladen, A.J. Fairchild, A.R. Koymen, A.H. Weiss, "Investigation of graphene using low energy positron annihilation induced Doppler broadening spectroscopy," in Proceedings of the 14th International Workshop on Slow Positron Beam Techniques & Applications, IOP Conf. Series: Journal of Physics: Conf. Series, Vol. 791, Article 012032, (2017).

DOI: 10.1088/1742-6596/791/1/012032

[4] A.P. Mills Jr., "Positronium Formation at Surfaces," Physical Review Letters, Vol. 41, No. 26, pp.1828-1831. doi:10.1103/PhysRevLett.41.1828, (1978).

DOI: 10.1103/physrevlett.41.1828

[5] Peter J. Schultz and K.G. Lynn, Interaction of positron beams with surfaces, thin films, and interfaces, Reviews of Modern Physics, 60, 701, (1988).

DOI: 10.1103/revmodphys.60.701

[6] M.D. Chrysler, V.A. Chirayath, A.D. McDonald, R.W. Gladen, A.J. Fairchild, A.R. Koymen, A.H. Weiss, "Low energy positron beam system for the investigation of 2D and porous materials," in Proceedings of the 14th International Workshop on Slow Positron Beam Techniques & Applications, IOP Conf. Series: Journal of Physics: Conf. Series, Vol. 791, Article 012008, (2017).

DOI: 10.1088/1742-6596/791/1/012008

[7] V.A. Chirayath, R.W. Gladen, A.D. McDonald, A.J. Fairchild, P.V. Joglekar, S. Satyal, Z.H. Lim, T.N. Shead, M.D. Chrysler, S. Mukherjee, B.M. Barnett, N.K. Byrnes, A.R. Koymen, R.G. Greaves, A.H. Weiss, A multi-stop time-of-flight spectrometer for the measurement of positron annihilation-induced electrons in coincidence with the Doppler-shifted annihilation gamma photon, Rev. Sci. Instrum. 91, 033903, (2020).

DOI: 10.1063/1.5140789

[8] F.A. Selim, Positron Annihilation Spectroscopy of Defects in Nuclear and Irradiated Materials – A Review, Materials Characterization, 174, 110952 (2021).

DOI: 10.1016/j.matchar.2021.110952

[9] A. van Veen, H. Schut, J. de Vries, R.A. Hakvoort, M.R. IJpma, Analysis of positron profiling data by means of 'VEPFIT', Interfaculty Reactor Institute, Delft University of Technology, Delft, Netherlands, (1990).

DOI: 10.1063/1.40182

[10] H. Schut, A. van Veen, Software for Modelling Positron-Beam Depth-Profiling Data, Journal de Physique IV Proceedings, 05 (C1), pp.C1-57-C1-61. doi:10.1051/jp4:1995106, (1995).

DOI: 10.1051/jp4:1995106

[11] S. Lotfimarangloo, H. Mahdy, P. Sau, S. Phil, R. Gladen, J. Driscoll, M. Rooks, M. Chrysler, A. Koymen, J. Asaadi, V. Chirayath, A. Weiss, Measurement and Analysis of the Doppler Broadened Energy Spectra of Gamma Radiation Originating from the Annihilation of Positrons Incident on Clean and Adsorbate-Covered Surfaces, Available at SSRN, Article ID 4979266, (2024).

DOI: 10.2139/ssrn.4979266

[12] V.A. Chirayath, M. D. Chrysler, A. D. McDonald, R. W. Gladen, A. J. Fairchild, A. R. Koymen, A. H. Weiss, Investigation of Graphene Using Low Energy Positron Annihilation Induced Doppler Broadening Spectroscopy, Department of Physics, University of Texas at Arlington, Arlington, Texas 76019-0059, USA, (2017).

DOI: 10.1088/1742-6596/791/1/012032

[13] Z. Fu, G. Liu, L. Guo, Sequential Quadratic Programming Method for Nonlinear Least Squares Estimation and Its Application, Mathematical Problems in Engineering, Article ID 3087949, (2019).

DOI: 10.1155/2019/3087949

[14] K. G. Lynn, A. P. Mills Jr., R. N. West, S. Berko, K. F. Canter, L. O. Roellig, Positron or Positronium like Surface State on Al(100)?, Physical Review Letters, Vol. 54, No. 15, (1985).

DOI: 10.1103/physrevlett.54.1702

[15] R.H. Howell, P. Meyer, I.J. Rosenberg, M.J. Fluss, Two-Dimensional Electron-Positron Momentum Measurement at a Copper Single-Crystal Surface, Physical Review Letters, Vol. 54, No. 15, (1985).

DOI: 10.1103/physrevlett.54.1698
