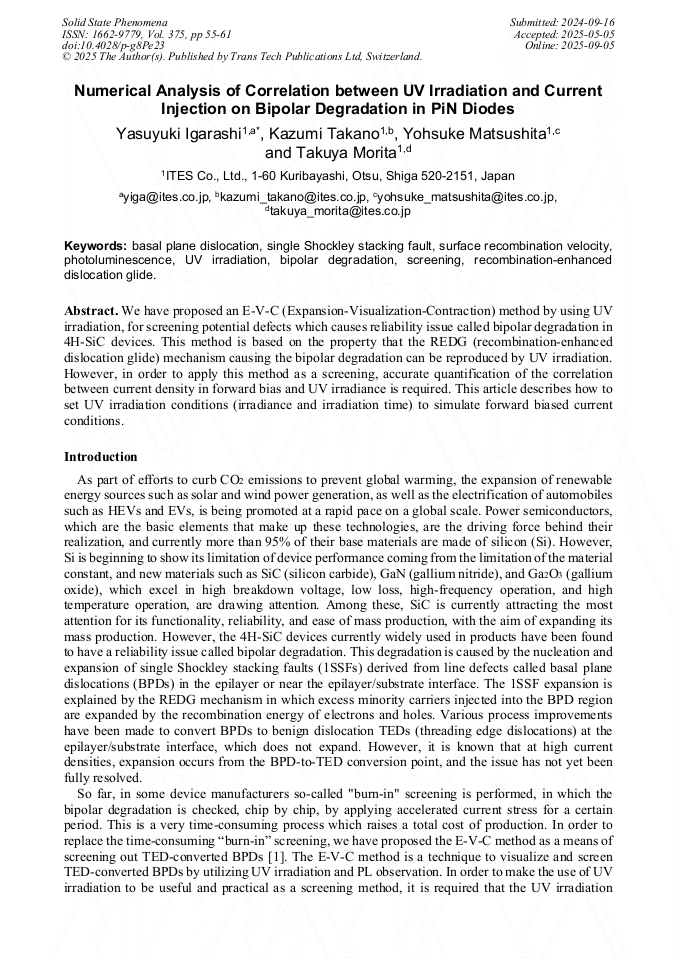

Numerical Analysis of Correlation between UV Irradiation and Current Injection on Bipolar Degradation in PiN Diodes

Abstract:

We have proposed an E-V-C (Expansion-Visualization-Contraction) method by using UV irradiation, for screening potential defects which causes reliability issue called bipolar degradation in 4H-SiC devices. This method is based on the property that the REDG (recombination-enhanced dislocation glide) mechanism causing the bipolar degradation can be reproduced by UV irradiation. However, in order to apply this method as a screening, accurate quantification of the correlation between current density in forward bias and UV irradiance is required. This article describes how to set UV irradiation conditions (irradiance and irradiation time) to simulate forward biased current conditions.

By email View Pdf

You have full access to the following eBook

Read eBook

Info:

Periodical:

Solid State Phenomena (Volume 375)

Pages:

55-61

DOI:

https://doi.org/10.4028/p-g8Pe23

Citation:

Cite this paper

Online since:

September 2025

Authors:

Yasuyuki Igarashi*, Kazumi Takano, Yohsuke Matsushita, Takuya Morita

Keywords:

Basal Plane Dislocation, Bipolar Degradation, Photoluminescence, Recombination-Enhanced Dislocation Glide, Screening, Single Shockley Stacking Fault, Surface Recombination Velocity, UV Irradiation

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Citation:

* - Corresponding Author

References

[1] Y. Igarashi, K. Takano, Y. Matsushita, C. Shibata, Defect and Diffusion Forum 425, 75 (2023).

Google Scholar

[2] Y. Igarashi, K. Takano, Y. Matsushita, C. Shibata, Defect and Diffusion Forum 434, 23 (2024).

Google Scholar

[3] T. Tawara, S. Matsunaga, T. Fujimoto, M. Ryo, M. Miyazato, T. Miyazawa, K. Takenaka, M. Miyajima, A. Otsuki, Y. Yonezawa, T. Kato, H. Okumura, T.　Kimoto, and H. Tsuchida, J. Appl. Phys. 123, 025707 (2018).

DOI: 10.1063/1.5009365

Google Scholar

[4] A. Herlet, Solid-State Electron. 11, p.717 (1968).

Google Scholar

[5] Y. Ogita, J. Appl. Phys., 79, p.6954 (1996).

Google Scholar

[6] S. Sumie, F. Ojima, K. Yamashita, K. Iba, and H. Hashizume, J. Electrochem. Soc. 152 G99 (2005).

DOI: 10.1149/1.1825911

Google Scholar
