Sol-Gel Derived Nanomagnesium Oxide: Influence of Annealing Temperature on the Dielectric Layer Properties

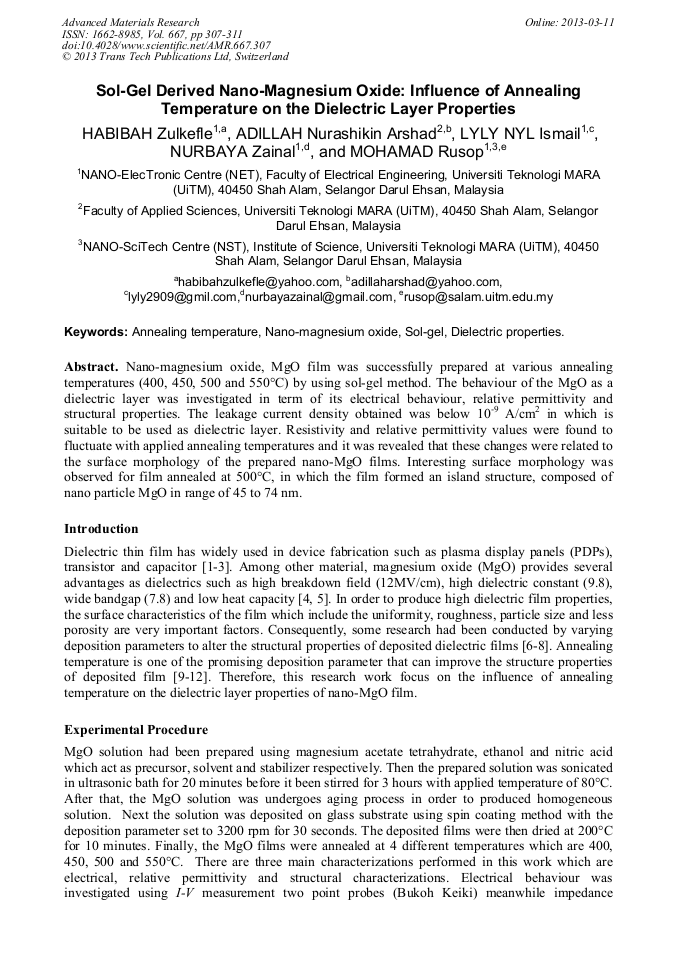

Article Preview

Abstract:

Nano-magnesium oxide, MgO film was successfully prepared at various annealing temperatures (400, 450, 500 and 550°C) by using sol-gel method. The behaviour of the MgO as a dielectric layer was investigated in term of its electrical behaviour, relative permittivity and structural properties. The leakage current density obtained was below 10-9 A/cm2 in which is suitable to be used as dielectric layer. Resistivity and relative permittivity values were found to fluctuate with applied annealing temperatures and it was revealed that these changes were related to the surface morphology of the prepared nano-MgO films. Interesting surface morphology was observed for film annealed at 500°C, in which the film formed an island structure, composed of nano particle MgO in range of 45 to 74 nm.

You might also be interested in these eBooks

Nanosynthesis and Nanodevice

Info:

Periodical:

Advanced Materials Research (Volume 667)

Pages:

307-311

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.667.307

Citation:

Cite this paper

Online since:

March 2013

Authors:

Zulkefle Habibah, Adillah Nurashikin Arshad, Ismail Lyly Nyl, Zainal Nurbaya, Mohamad Rusop Mahmood

Keywords:

Annealing Temperature, Dielectric Property, Nano Magnesium Oxides, Sol-Gel (SG)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2013 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] Z. -n. Yu, J. -w. Seo, D. -x. Zheng, J. Sun, Structural and discharging properties of MgO thin films prepared by ion beam-assisted deposition, Surf. Coat. Technol. 163-164 (2003) 398-404.

DOI: 10.1016/s0257-8972(02)00633-3

[2] K. -H. L. Jung-Min Cho, Chae Il Cheon, Nam In Cho, Jeong Seog Kim, Characterization of the bitaxial texture of MgO thin films grown by E-beam evaporation, J. Eur. Ceram. Soc. 30 (2010) 481.

[3] J. S. Park, Y. H. Han, Effects of MgO coating on microstructure and dielectric properties of BaTiO3, J. Eur. Ceram. Soc. 27 (2007) 1077-1082.

[4] H. -Y. Tsao, Y. -J. Lin, Y. -H. Chen, H. -C. Chang, Leakage current through In/MgO/n-type Si/In structures, Solid State Commun. 151 (2011) 693-696.

DOI: 10.1016/j.ssc.2011.02.019

[5] S. Okuzumi, Y. Murakami, M. Nagao, Y. Sekiguchi, C. C. Reddy, Y. Murata, DC Breakdown Strength and Conduction Current of MgO/LDPE Composite Influenced by Filler Size, Annual Report Conference on Electrical Insulation and Dielectric Phenomena (2008).

DOI: 10.1109/ceidp.2008.4772933

[6] T. W. Kim, Y. S. You, Microstructure and electrical properties of MgO thin films grown on p-InP (100) substrates at low temperature, Appl. Surf. Sci. 180 (2001) 162-167.

DOI: 10.1016/s0169-4332(01)00335-x

[7] L. Xu, X. Li, Y. Chen, F. Xu, Structural and optical properties of ZnO thin films prepared by sol-gel method with different thickness, Appl. Surf. Sci. 257 (2011) 4031-4037.

DOI: 10.1016/j.apsusc.2010.11.170

[8] B. S. P. a. K. B. R. Varma, Microstructural and dielectric properties of donor doped (La3+) CaCu3Ti4O12 ceramics, J. Mater. Sci.: Mater. Electron. 17 (2006) 899.

DOI: 10.1007/s10854-006-0037-9

[9] L. Z. Cao, Q. D. Meng, W. Y. Fu, S. F. Wang, M. Lei, B. L. Cheng, Y. L. Zhou, Z. H. Chen, Effect of annealing on the crystal structure and dielectric properties of Ba0. 6Sr0. 4TiO3 thick films, Physica B: Condensed Matter 393 (2007) 175-178.

DOI: 10.1016/j.physb.2006.12.084

[10] K. Kang, I. -D. Kim, M. -H. Lim, H. -G. Kim, J. -M. Hong, Annealing effect on dielectric and leakage current characteristics of Mn-doped Ba0. 6Sr0. 4TiO3 thin films as gate insulators for low voltage ZnO thin film transistor, Thin Solid Films 516 (2008).

DOI: 10.1016/j.tsf.2007.05.068

[11] J. Sengupta, R. K. Sahoo, K. K. Bardhan, C. D. Mukherjee, Influence of annealing temperature on the structural, topographical and optical properties of sol-gel derived ZnO thin films, Materials Letters 65 (2011) 2572-2574.

DOI: 10.1016/j.matlet.2011.06.021

[12] V. Senthilkumar, P. Vickraman, Annealing temperature dependent on structural, optical and electrical properties of indium oxide thin films deposited by electron beam evaporation method, Curr. Appl. Phys. 10 (2010) 880-885.

DOI: 10.1016/j.cap.2009.10.014

[13] J. Li, J. -H. Huang, W. -J. Song, Y. -L. Zhang, R. -Q. Tan, Y. Yang, Effects of post-annealing temperature on structural, optical, and electrical properties of MgxZn1-xO films by RF magnetron sputtering, J. Cryst. Growth 314 (2011) 136-140.

DOI: 10.1016/j.jcrysgro.2010.11.154

[14] B. Toomey, K. Cherkaoui, S. Monaghan, V. Djara, O'Connor, D. O'Connell, L. Oberbeck, E. Tois, T. Blomberg, S. B. Newcomb, P. K. Hurley, The structural and electrical characterization of a HfErOx dielectric for MIM capacitor DRAM applications, Microelectron. Eng. 94 (2012).

DOI: 10.1016/j.mee.2012.01.001

[15] E. Hourdakis, A. G. Nassiopoulou, High performance MIM capacitor using anodic alumina dielectric, Microelectron. Eng. 90 (2012) 12-14.

DOI: 10.1016/j.mee.2011.03.020

[16] .

[16] E. Y. N. B. Ibrahim, Z. Zalita, Z. Ibarahim, Effect of annealing temperature of sol-gel TiO2 buffer layer on microstructure and electrical properties of Ba0. 6Sr0. 4TiO3 films, Sains Malaysiana 41 (2012) 339-344.

[17] M. Soosen Samuel, J. Koshy, A. Chandran, K. C. George, Dielectric behavior and transport properties of ZnO nanorods, Physica B: Condensed Matter 406 (2011) 3023-3029.

DOI: 10.1016/j.physb.2011.04.070

[18] M. Zhao, W. Q. Cao, The effects of deposition temperature on structure and dielectric properties of Ba0. 6Sr0. 4TiO3 thin films produced by pulsed laser deposition, Ceramics International 35 (2009) 2283-2287.

DOI: 10.1016/j.ceramint.2009.01.004

[19] M. K. Gupta, N. Sinha, B. K. Singh, N. Singh, K. Kumar, B. Kumar, Piezoelectric, dielectric, optical and electrical characterization of solution grown flower-like ZnO nanocrystal, Materials Letters 63 (2009) 1910-(1913).

DOI: 10.1016/j.matlet.2009.06.003

[20] Y. Ding, Y. D. Yao, K. T. Wu, J. C. Hsu, D. S. Hung, D. H. Wei, Y. H. Lin, Permittivity Enhancement ofTa2O5/Co/Ta2O5 Trilayer Films, IEEE Trans. Magn. 47 (2011) 710-713.

DOI: 10.1109/tmag.2010.2103374

[21] M. Manin, S. Thollon, F. Emieux, G. Berthome, M. Pons, H. Guillon, Deposition of MgO thin film by liquid pulsed injection MOCVD, Surf. Coat. Technol. 200 (2005) 1424-1429.

DOI: 10.1016/j.surfcoat.2005.08.052
