A Study of Process Interruptions during Pre- and Post-Buffer Layer Epitaxial Growth for Defect Reduction in 4H SiC

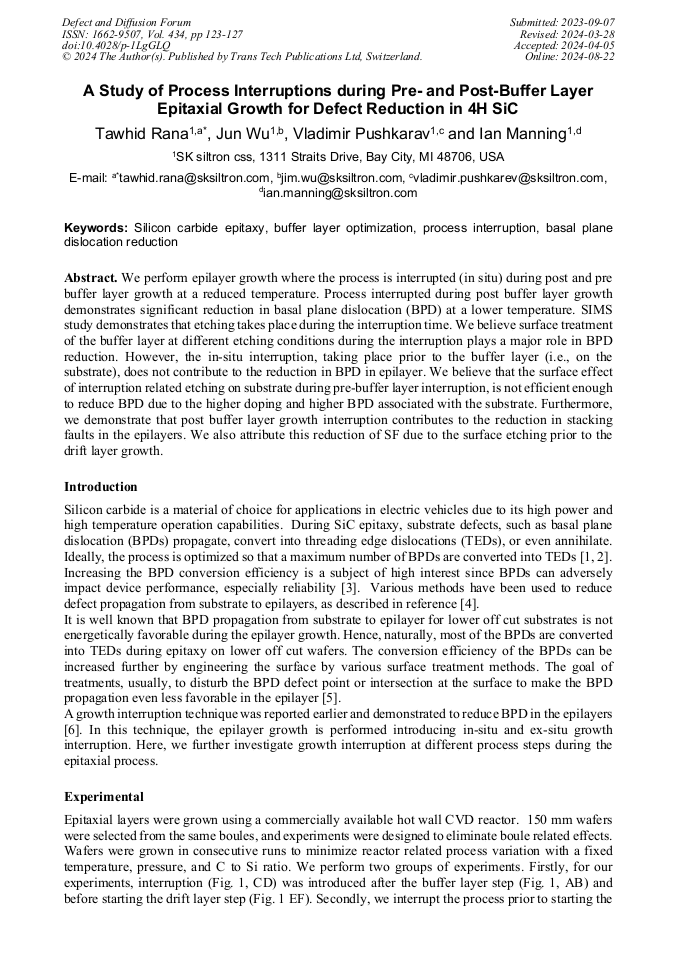

Article Preview

Abstract:

We perform epilayer growth where the process is interrupted (in situ) during post and pre buffer layer growth at a reduced temperature. Process interrupted during post buffer layer growth demonstrates significant reduction in basal plane dislocation (BPD) at a lower temperature. SIMS study demonstrates that etching takes place during the interruption time. We believe surface treatment of the buffer layer at different etching conditions during the interruption plays a major role in BPD reduction. However, the in-situ interruption, taking place prior to the buffer layer (i.e., on the substrate), does not contribute to the reduction in BPD in epilayer. We believe that the surface effect of interruption related etching on substrate during pre-buffer layer interruption, is not efficient enough to reduce BPD due to the higher doping and higher BPD associated with the substrate. Furthermore, we demonstrate that post buffer layer growth interruption contributes to the reduction in stacking faults in the epilayers. We also attribute this reduction of SF due to the surface etching prior to the drift layer growth.

You might also be interested in these eBooks

Info:

* - Corresponding Author

[1] Z. Zhang and T. S. Sudarshan, Applied Physics. Letters. 87, 161917 (2005)

Google Scholar

[2] Z. Zhang and T. S. Sudarshan, Applied Physics Letters. 87, 151913 (2005)

Google Scholar

[3] R. E. Stahlbush, K. N. A. Mahadik, A. J. Lelis and R. Green, IEEE International Electron Devices Meeting (IEDM), San Francisco, CA, USA, 19.4.1-19.4.4 (2018)

DOI: 10.1109/iedm.2018.8614623

Google Scholar

[4] L. Yang, L.X. Zhao, H.W. Wu, Journal of Crystal Growth, 531, 125360 (2020)

Google Scholar

[5] Haizheng Song, Tawhid Rana, Tangali S. Sudarshan,, Journal of Crystal Growth, 320, 95 (2011)

Google Scholar

[6] R. E. Stahlbush, B. L. VanMil, R. L. Myers-Ward, et al., Applied Physics Letters 94, 041916 (2009)

Google Scholar

[7] V.D. Wheeler, B.L. VanMil, R.L. Myers-Ward, S. Chung, Y.N. Picard, M. Skowronski, R.E. Stahlbush, N.A. Mahadik, C.R. Eddy Jr., and D.K. Gaskill, Materials Science Forum, 679-680, 63 (2011)

DOI: 10.4028/www.scientific.net/msf.679-680.63

Google Scholar

[8] Haizheng Song, Tawhid Rana, Tangali Sudarshan, Journal of Crystal Growth, 320, 95 (2011)

Google Scholar

[9] V. Ramachandrana , M. F. Bradya , A. R. Smitha , R. M. Feenstraa and D. W. Greve, Journal of Electronic Materials 27, 308 (1998)

Google Scholar

[10] Tawhid Rana, MVS Chandrashekhar, Tangali Sudarshan, Journal of Crystal Growth, 380, 61 (2013)

Google Scholar
