Observation and Analysis of the “Galaxy” Defect in 4H-SiC through X-Ray Synchrotron Topography

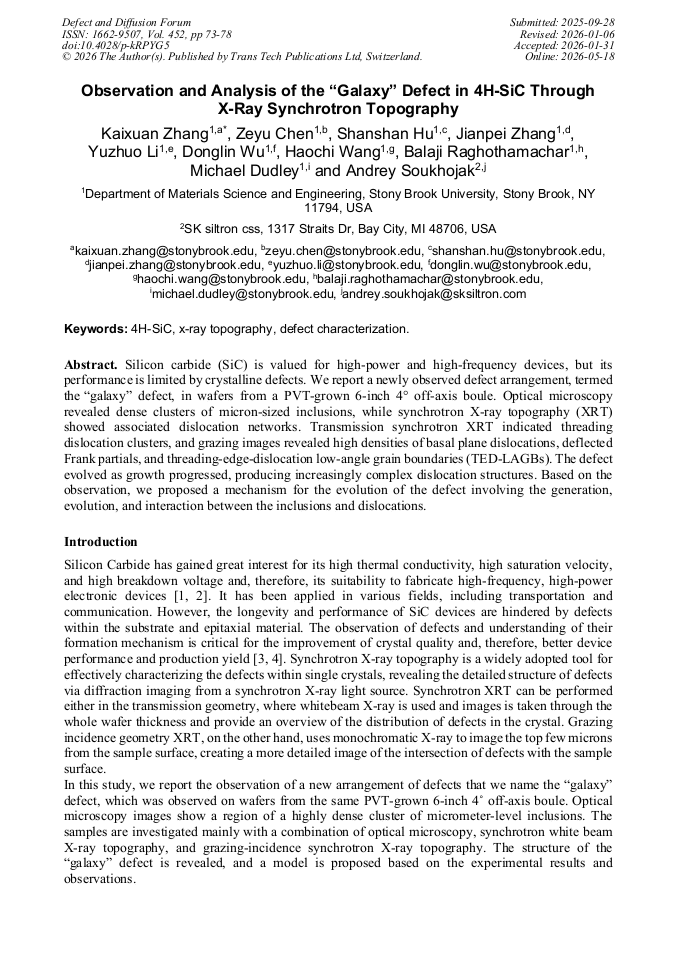

Article Preview
View Pdf By email

Abstract:

Silicon carbide (SiC) is valued for high-power and high-frequency devices, but its performance is limited by crystalline defects. We report a newly observed defect arrangement, termed the “galaxy” defect, in wafers from a PVT-grown 6-inch 4° off-axis boule. Optical microscopy revealed dense clusters of micron-sized inclusions, while synchrotron X-ray topography (XRT) showed associated dislocation networks. Transmission synchrotron XRT indicated threading dislocation clusters, and grazing images revealed high densities of basal plane dislocations, deflected Frank partials, and threading-edge-dislocation low-angle grain boundaries (TED-LAGBs). The defect evolved as growth progressed, producing increasingly complex dislocation structures. Based on the observation, we proposed a mechanism for the evolution of the defect involving the generation, evolution, and interaction between the inclusions and dislocations.

You have full access to the following eBook
Defects Evaluation Read eBook

Info:

Periodical:

Defect and Diffusion Forum (Volume 452)

Pages:

73-78

DOI:

https://doi.org/10.4028/p-kRPYG5

Citation:

Cite this paper

Online since:

May 2026

Authors:

Kai Xuan Zhang*, Ze Yu Chen, Shan Shan Hu, Jian Pei Zhang, Yu Zhuo Li, Dong Lin Wu, Hao Chi Wang, Balaji Raghothamachar, Michael Dudley, Andrey Soukhojak

Keywords:

4H-SiC, Defect Characterization, X-Ray Topography

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0
