Unveiling the Role of Crystallographic Defects in SiC Device Reliability with Multi Modal Structural Analysis

Article Preview

View Pdf By email

Abstract:

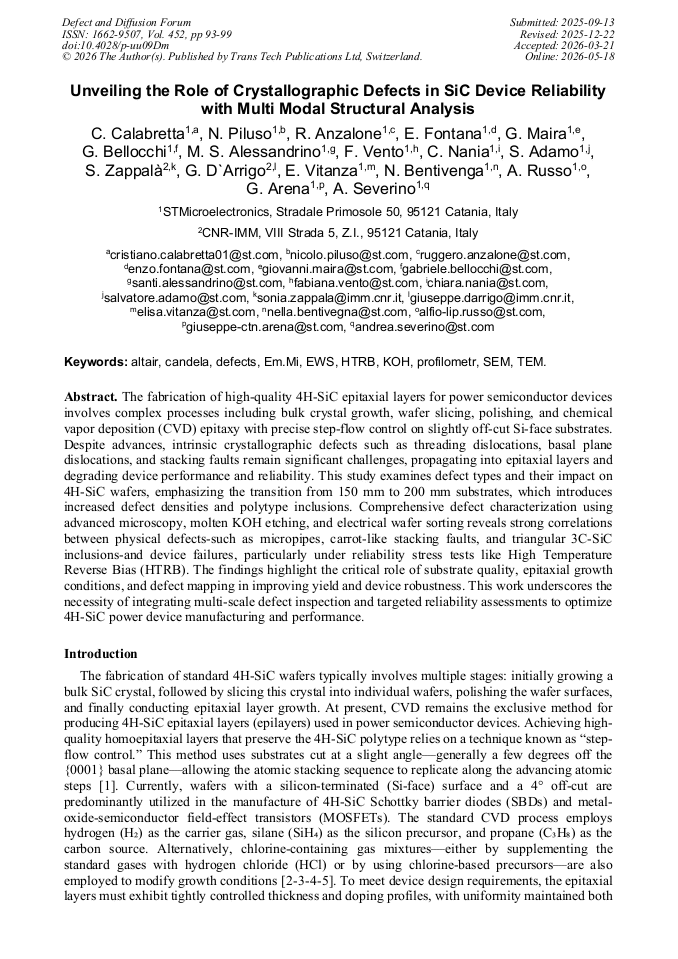

The fabrication of high-quality 4H-SiC epitaxial layers for power semiconductor devices involves complex processes including bulk crystal growth, wafer slicing, polishing, and chemical vapor deposition (CVD) epitaxy with precise step-flow control on slightly off-cut Si-face substrates. Despite advances, intrinsic crystallographic defects such as threading dislocations, basal plane dislocations, and stacking faults remain significant challenges, propagating into epitaxial layers and degrading device performance and reliability. This study examines defect types and their impact on 4H-SiC wafers, emphasizing the transition from 150 mm to 200 mm substrates, which introduces increased defect densities and polytype inclusions. Comprehensive defect characterization using advanced microscopy, molten KOH etching, and electrical wafer sorting reveals strong correlations between physical defects—such as micropipes, carrot-like stacking faults, and triangular 3C-SiC inclusions—and device failures, particularly under reliability stress tests like High Temperature Reverse Bias (HTRB). The findings highlight the critical role of substrate quality, epitaxial growth conditions, and defect mapping in improving yield and device robustness. This work underscores the necessity of integrating multi-scale defect inspection and targeted reliability assessments to optimize 4H-SiC power device manufacturing and performance.
