Matching Physical and Electrical Measurements (OBIC) to Simulation (FEM) on High Voltage Bipolar Diodes

Abstract:

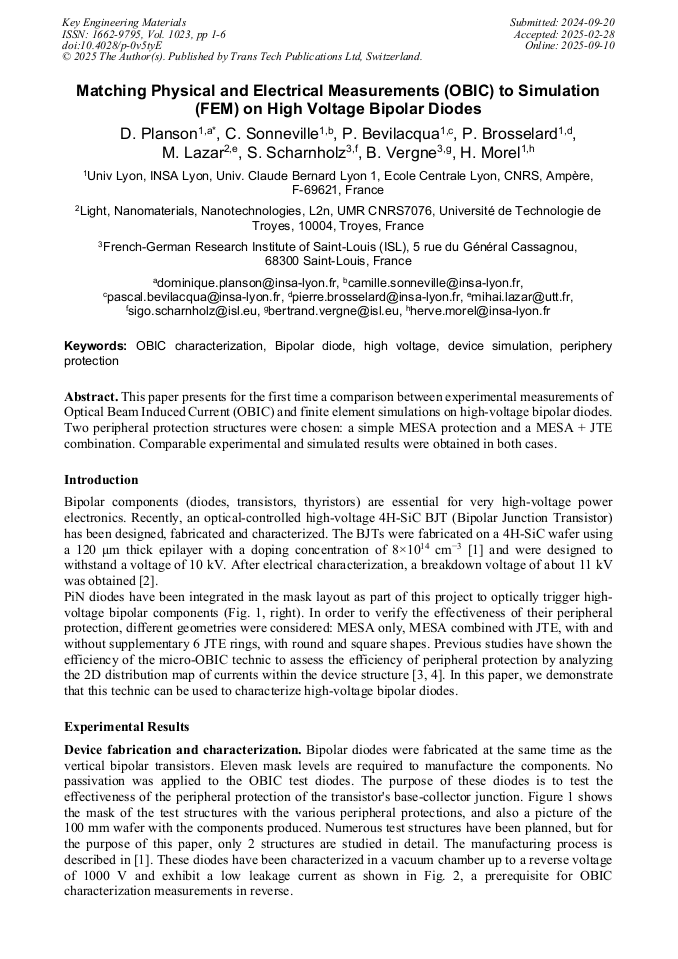

This paper presents for the first time a comparison between experimental measurements of Optical Beam Induced Current (OBIC) and finite element simulations on high-voltage bipolar diodes. Two peripheral protection structures were chosen: a simple MESA protection and a MESA + JTE combination. Comparable experimental and simulated results were obtained in both cases.
