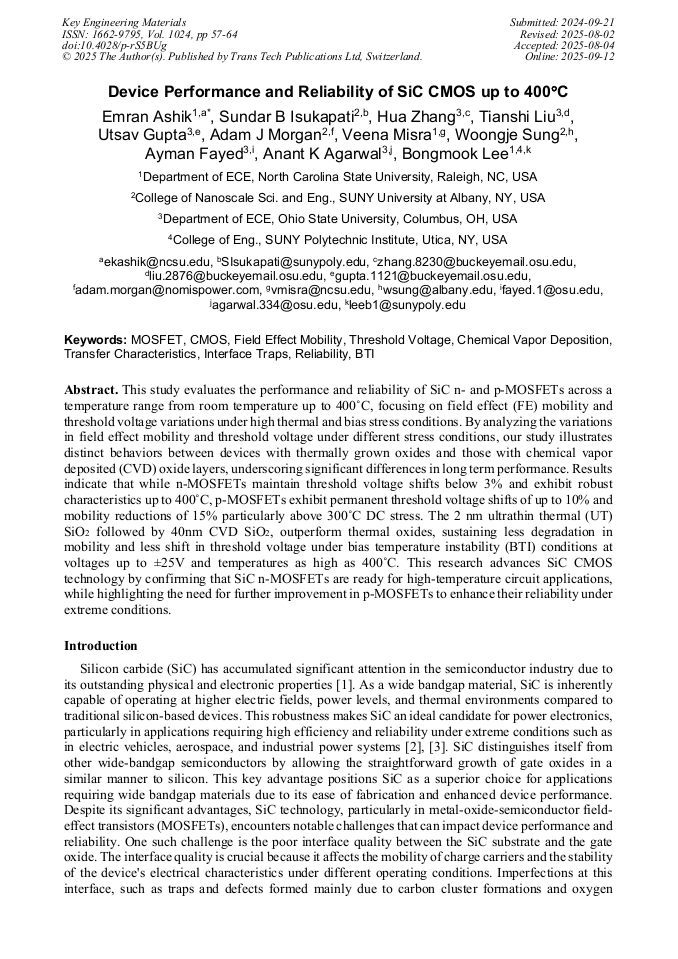

Device Performance and Reliability of SiC CMOS up to 400°C

Abstract:

This study evaluates the performance and reliability of SiC n-and p-MOSFETs across a temperature range from room temperature up to 400°C, focusing on field effect (FE) mobility and threshold voltage variations under high thermal and bias stress conditions. By analyzing the variations in field effect mobility and threshold voltage under different stress conditions, our study illustrates distinct behaviors between devices with thermally grown oxides and those with chemical vapor deposited (CVD) oxide layers, underscoring significant differences in long term performance. Results indicate that while n-MOSFETs maintain threshold voltage shifts below 3% and exhibit robust characteristics up to 400°C, p-MOSFETs exhibit permanent threshold voltage shifts of up to 10% and mobility reductions of 15% particularly above 300°C DC stress. The 2 nm ultrathin thermal (UT) followed by 40nm CVD SiO₂, outperform thermal oxides, sustaining less degradation in mobility and less shift in threshold voltage under bias temperature instability (BTI) conditions at voltages up to ±25V and temperatures as high as 400°C. This research advances SiC CMOS technology by confirming that SiC n-MOSFETs are ready for high-temperature circuit applications, while highlighting the need for further improvement in p-MOSFETs to enhance their reliability under extreme conditions.

• Periodical: Key Engineering Materials (Volume 1024)
• Pages: 57-64
• DOI: https://doi.org/10.4028/p-rS5BUg
• Online since: September 2025
• Authors: Emran K. Ashik*, Sundar B. Isukapati, Hua Zhang, Tian Shi Liu, Utsav Gupta, Adam J. Morgan, Veena Misra, Woong Je Sung, Ayman Fayed, Anant K. Agarwal, Bong Mook Lee
• Keywords: BTI, Chemical Vapor Deposition, CMOS, Field Effect Mobility, Interface Traps, MOSFET, Reliability, Threshold Voltage, Transfer Characteristics

References

[1] W. J. Choyke and G. Pensl, "Physical Properties of SiC," MRS Bull., vol. 22, no. 3, p.25–29, Mar. 1997.

DOI: 10.1557/S0883769400032723

[2] R. R. Siergiej et al., "Advances in SiC materials and devices: an industrial point of view," Mater. Sci. Eng. B, vol. 61–62, p.9–17, Jul. 1999.

DOI: 10.1016/S0921-5107(98)00438-3

[3] M. Alexandru et al., "SiC Integrated Circuit Control Electronics for High-Temperature Operation," IEEE Trans. Ind. Electron., vol. 62, no. 5, p.3182–3191, May 2015.

DOI: 10.1109/TIE.2014.2379212

[4] G. Pensl et al., "Traps at the SiC/SiO2-Interface," MRS Online Proc. Libr. OPL, vol. 640, p. H3.2, Jan. 2000.

DOI: 10.1557/PROC-640-H3.2

[5] V. V. Afanas'ev, "Electronic properties of SiO2SiC interfaces," Microelectron. Eng., vol. 48, no. 1, p.241–248, Sep. 1999.

DOI: 10.1016/S0167-9317(99)00379-2

[6] E. Pippel, J. Woltersdorf, H. Ö. Ólafsson, and E. Ö. Sveinbjörnsson, "Interfaces between 4H-SiC and SiO2: Microstructure, nanochemistry, and near-interface traps," J. Appl. Phys., vol. 97, no. 3, p.034302, Dec. 2004.

DOI: 10.1063/1.1836004

[7] D. J. Lichtenwalner et al., "Accelerated Testing of SiC Power Devices," in 2020 IEEE International Integrated Reliability Workshop (IIRW), Oct. 2020, p.1–6.

DOI: 10.1109/IIRW49815.2020.9312873

[8] A. Christou, Reliability of High Temperature Electronics. RIAC, 1996.

[9] E. K. Ashik et al., "Bias Temperature Instability on SiC n- and p-MOSFETs for High Temperature CMOS Applications," in 2022 IEEE International Reliability Physics Symposium (IRPS), Mar. 2022, p. 3B.4-1-3B.4-8.

DOI: 10.1109/IRPS48227.2022.9764565

[10] A. J. Lelis, R. Green, D. B. Habersat, and M. El, "Basic Mechanisms of Threshold-Voltage Instability and Implications for Reliability Testing of SiC MOSFETs," IEEE Trans. Electron Devices, vol. 62, no. 2, p.316–323, Feb. 2015.

DOI: 10.1109/TED.2014.2356172

[11] R. Green, A. Lelis, and D. Habersat, "Threshold-voltage bias-temperature instability in commercially-available SiC MOSFETs," Jpn. J. Appl. Phys., vol. 55, no. 4S, p. 04EA03, Mar. 2016.

DOI: 10.7567/JJAP.55.04EA03

[12] R. W. Kee, K. M. Geib, C. W. Wilmsen, and D. K. Ferry, "Interface characteristics of thermal Si02 on SiC," J. Vac. Sci. Technol., vol. 15, no. 4, p.1520–1523, Jul. 1978.

DOI: 10.1116/1.569779

[13] T. E. Rudenko, I. N. Osiyuk, I. P. Tyagulski, H. Ö. Ólafsson, and E. Ö. Sveinbjörnsson, "Interface trap properties of thermally oxidized n-type 4H–SiC and 6H–SiC," Solid-State Electron., vol. 49, no. 4, p.545–553, Apr. 2005.

DOI: 10.1016/j.sse.2004.12.006

[14] S. B. Isukapati et al., "Monolithic Integration of Lateral HV Power MOSFET with LV CMOS for SiC Power IC Technology," in 2021 33rd International Symposium on Power Semiconductor Devices and ICs (ISPSD), May 2021, p.267–270.

DOI: 10.23919/ISPSD50666.2021.9452235

[15] L. Dobrescu, M. Petrov, D. Dobrescu, and C. Ravariu, "Threshold voltage extraction methods for MOS transistors," in 2000 International Semiconductor Conference. 23rd Edition. CAS 2000 Proceedings (Cat. No.00TH8486), Oct. 2000, p.371–374 vol.1.

DOI: 10.1109/SMICND.2000.890257

[16] Y. Tsividis, Operation and Modeling of the Mos Transistor (The Oxford Series in Electrical and Computer Engineering). USA: Oxford University Press, Inc., 2004.

[17] V. Uhnevionak et al., "Comprehensive Study of the Electron Scattering Mechanisms in 4H-SiC MOSFETs," IEEE Trans. Electron Devices, vol. 62, no. 8, p.2562–2570, Aug. 2015.

DOI: 10.1109/TED.2015.2447216
