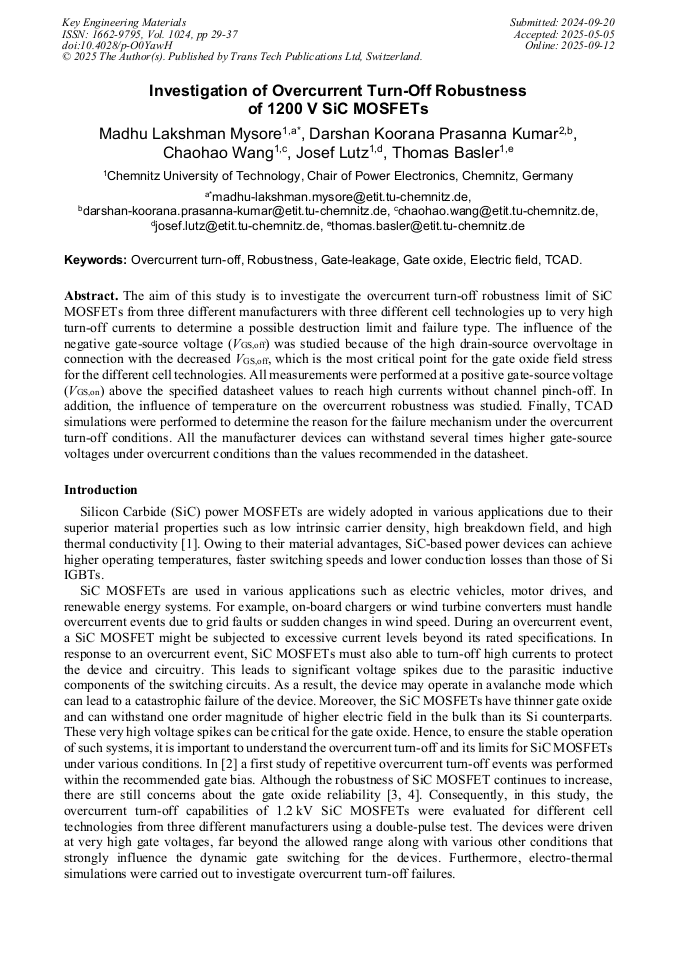

Investigation of Overcurrent Turn-Off Robustness of 1200 V SiC MOSFETs

Abstract:

The aim of this study is to investigate the overcurrent turn-off robustness limit of SiC MOSFETs from three different manufacturers with three different cell technologies up to very high turn-off currents to determine a possible destruction limit and failure type. The influence of the negative gate-source voltage (V_GS,off) was studied because of the high drain-source overvoltage in connection with the decreased V_GS,off, which is the most critical point for the gate oxide field stress for the different cell technologies. All measurements were performed at a positive gate-source voltage (V_GS,on) above the specified datasheet values to reach high currents without channel pinch-off. In addition, the influence of temperature on the overcurrent robustness was studied. Finally, TCAD simulations were performed to determine the reason for the failure mechanism under the overcurrent turn-off conditions. All the manufacturer devices can withstand several times higher gate-source voltages under overcurrent conditions than the values recommended in the datasheet.

By email View Pdf

You have full access to the following eBook

SiC Application and SiC Devices Reliability and Stability

Read eBook

Info:

Periodical:

Key Engineering Materials (Volume 1024)

Pages:

29-37

DOI:

https://doi.org/10.4028/p-O0YawH

Citation:

Cite this paper

Online since:

September 2025

Authors:

Madhu Lakshman Mysore*, Darshan Koorana Prasanna Kumar, Chao Hao Wang, Josef Lutz, Thomas Basler

Keywords:

Electric Field, Gate Oxide, Gate-Leakage, Overcurrent Turn-Off, Robustness, TCAD

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Citation:

* - Corresponding Author

References

[1] T. Kimoto and J. A. Cooper, Fundamentals Silicon Carbide Technology: Growth, Characterization, Devices, Applications Singapore: Wiley, Nov. 2014.

Google Scholar

[2] B. Findenig, et. al., "Robustness of SiC MOSFETs under Repetitive High Current Pulses" 19th ICSCRM conference, Davos, Switzerland, 2022, in Material Science Forum, Vol. 1092, pp.119-125.

DOI: 10.4028/p-hpfivz

Google Scholar

[3] D. Peters, et. al., "The new CoolSiCTM Trench MOSFET Technology for Low Gate Oxide Stress and High performance" in PCIM, Nuremberg, Germany, 2017, pp.168-174.

Google Scholar

[4] R. Boldyrjew-Mast, et. al., "Impact of Degradation Mechanisms in Gate Stress Tests on the Hard-Switching Behavior of 1.2 kV SiC Power MOSFETs" in 34th Proc. of ISPSD, Canada, 2022, pp.229-232.

DOI: 10.1109/ispsd49238.2022.9813675

Google Scholar

[5] J. W. McPherson, "Time dependent dielectric breakdown physics – Models revisited" in Microelectronics Reliability 52, 2012, pp.1753-1760.

DOI: 10.1016/j.microrel.2012.06.007

Google Scholar

[6] TCAD Sentaurus Manual, Synopsys Inc., Mountain View, CA, USA,2022.

Google Scholar

[7] K. Yao et. al., "Investigation of UIS Failure Mechanism in 1.2 kV Trench SiC MOSFETs using Electro-Thermal-Mechanical Stress Analysis" in 33rd Proc. of ISPSD, Nagoya, Japan, 2021, pp.115-118.

DOI: 10.23919/ispsd50666.2021.9452281

Google Scholar
