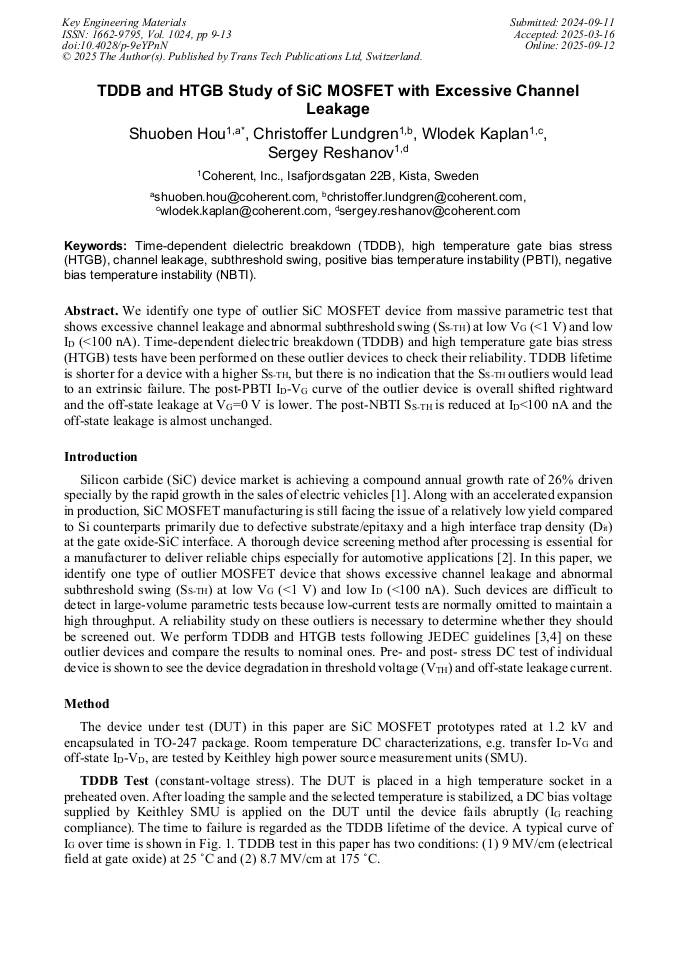

TDDB and HTGB Study of SiC MOSFET with Excessive Channel Leakage

Abstract:

We identify one type of outlier SiC MOSFET device from massive parametric test that shows excessive channel leakage and abnormal subthreshold swing (S_S-TH) at low V_G (<1 V) and low I_D (<100 nA). Time-dependent dielectric breakdown (TDDB) and high temperature gate bias stress (HTGB) tests have been performed on these outlier devices to check their reliability. TDDB lifetime is shorter for a device with a higher S_S-TH, but there is no indication that the S_S-THoutliers would lead to an extrinsic failure. The post-PBTI I_D-V_G curve of the outlier device is overall shifted rightward and the off-state leakage at V_G=0 V is lower. The post-NBTI S_S-THis reduced at I_D<100 nA and the off-state leakage is almost unchanged.
