Crystallization Behavior of KNbO3 Series Precursors Synthesized by CSD Process

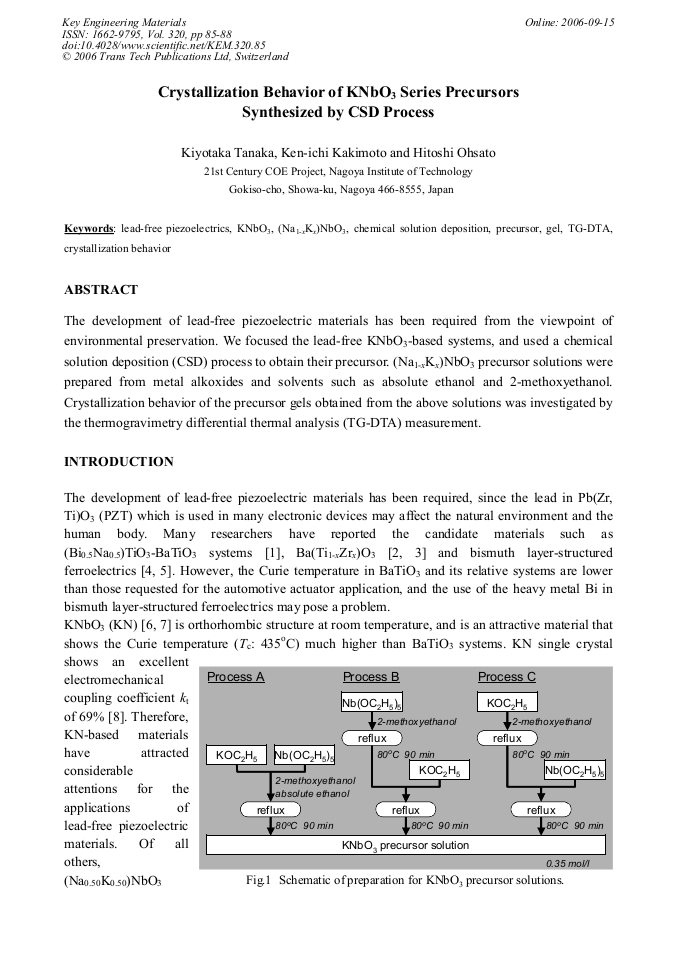

Article Preview

Abstract:

The development of lead-free piezoelectric materials has been required from the viewpoint of environmental preservation. We focused the lead-free KNbO3-based systems, and used a chemical solution deposition (CSD) process to obtain their precursor. (Na1-xKx)NbO3 precursor solutions were prepared from metal alkoxides and solvents such as absolute ethanol and 2-methoxyethanol. Crystallization behavior of the precursor gels obtained from the above solutions was investigated by the thermogravimetry differential thermal analysis (TG-DTA) measurement.

You might also be interested in these eBooks
Electroceramics in Japan IX View Preview

Info:

Periodical:

Key Engineering Materials (Volume 320)

Pages:

85-88

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.320.85

Citation:

Cite this paper

Online since:

September 2006

Authors:

Kiyotaka Tanaka, Kenichi Kakimoto, Hitoshi Ohsato

Keywords:

(Na1-xKx)NbO3, Chemical Solution Deposition, Crystallization Behavior, Gels, KNbO3, Lead-Free Piezoelectric, Precursor, TG-DTA

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2006 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] T. Takenaka, K. Maruyama and K. Sakata: Jpn. J. Appl. Phys. 30 (1991) 2236.

Google Scholar

[2] K. Tanaka, K. Suzuki, K. Nishizawa, T. Miki and K. Kato: Key Eng. Mater. 301 (2006) 53.

Google Scholar

[3] K. Tanaka, K. Suzuki, K. Nishizawa, T. Miki and K. Kato: Jpn. J. Appl. Phys. 44 (2005) 6885.

Google Scholar

[4] C. A. Araujo, J. D. Cuchiaro, L. D. McMillan, M. C. Scott and J. F. Scott: Nature 374 (1995) 627.

Google Scholar

[5] K. Kato. K. Suzuki, K. Nishizawa and T. Miki: Appl. Phys. Lett. 78 (2001) 1119.

Google Scholar

[6] S. Tashiro, H. Nagamatsu and K. Nagata: Jpn. J. Appl. Phys. 41 (2002) 7113.

Google Scholar

[7] K. Kakimoto, I. Masuda and H. Ohsato: Jpn. J. Appl. Phys. 42 (2003) 6102.

Google Scholar

[8] K. Nakamura and Y. Kawamura: IEEE Trans. Ultrason. Ferroelectr. Freq. Control 47 (2000) 750.

Google Scholar

[9] Y. Guo, K. Kakimoto and H. Ohsato: Jpn. J. Appl. Phys. 43 (2004) 6662.

Google Scholar

[10] Y. Saito, H. Takao, T. Tani, T. Nonoyama, K. Takatori, T. Homma, T. Nagoya and M. Nakamura: Nature 432 (2004) 84.

DOI: 10.1038/nature03028

Google Scholar

[11] S. Sakka and T. Kokubo: Jpn. J. Appl. Phys. 22 (1983) Suppl. 22-2 p.3.

Google Scholar

[12] E. R. Camargo, E. Longo E. R. Leite and M. Kakihana: Ceram. Inter. 30 (2004).

Google Scholar
