Comparison of the Irradiation Temperature Effect of on the Carrier Removal Rates in GaN and SiC

Article Preview
View Pdf By email

Abstract:

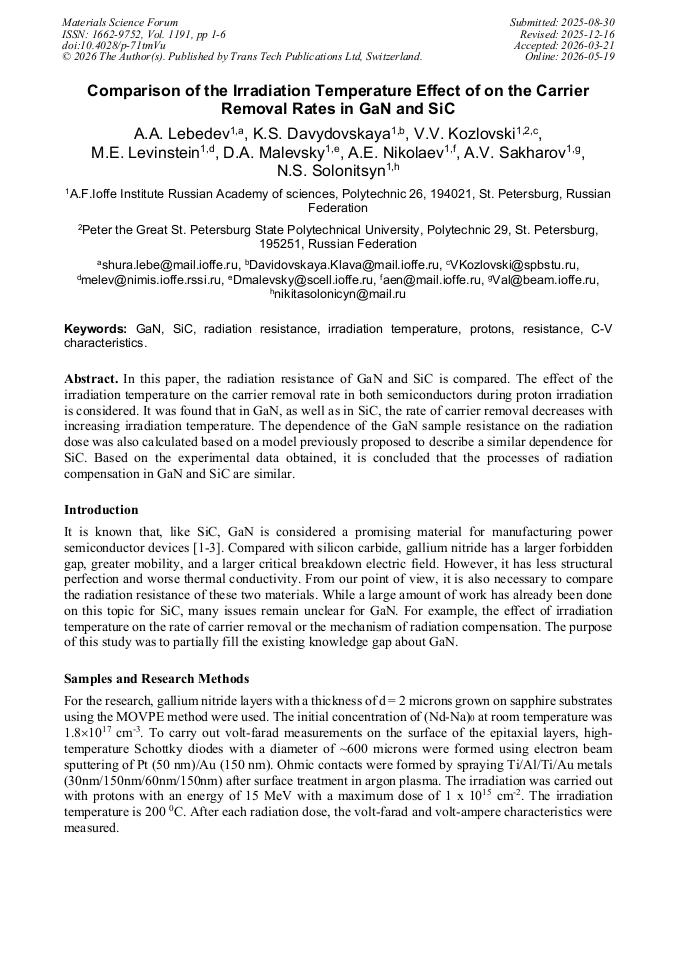

In this paper, the radiation resistance of GaN and SiC is compared. The effect of the irradiation temperature on the carrier removal rate in both semiconductors during proton irradiation is considered. It was found that in GaN, as well as in SiC, the rate of carrier removal decreases with increasing irradiation temperature. The dependence of the GaN sample resistance on the radiation dose was also calculated based on a model previously proposed to describe a similar dependence for SiC. Based on the experimental data obtained, it is concluded that the processes of radiation compensation in GaN and SiC are similar.
