A Frequency-EBIC Technique for High Spatial Resolution of the Effective Minority Charge Carrier Lifetime in SiC PN-Junctions

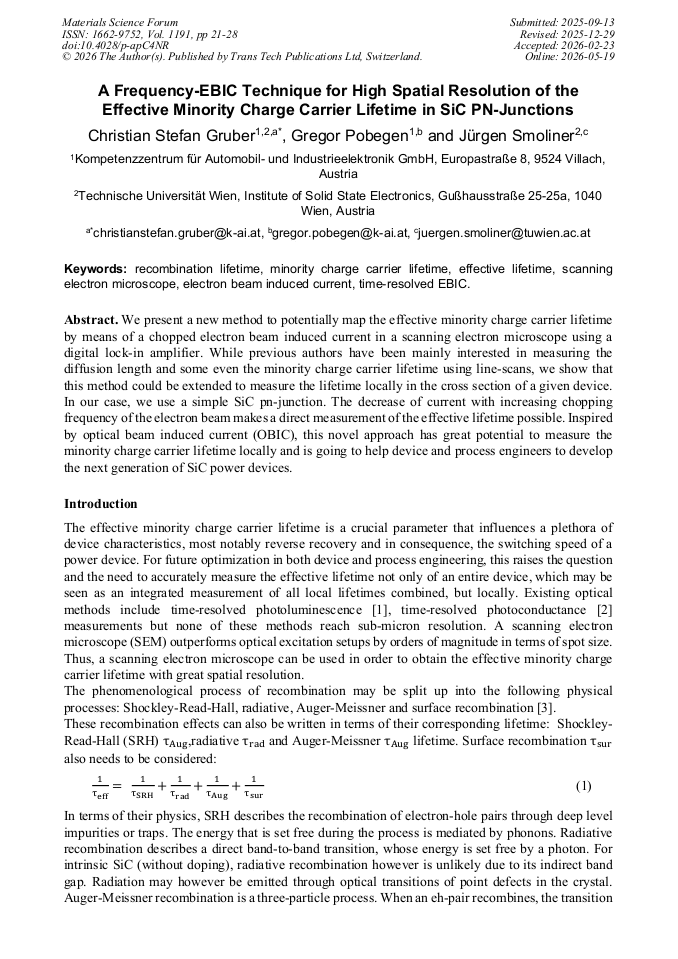

Article Preview
View Pdf By email

Abstract:

We present a new method to potentially map the effective minority charge carrier lifetime by means of a chopped electron beam induced current in a scanning electron microscope using a digital lock-in amplifier. While previous authors have been mainly interested in measuring the diffusion length and some even the minority charge carrier lifetime using line-scans, we show that this method could be extended to measure the lifetime locally in the cross section of a given device. In our case, we use a simple SiC pn-junction. The decrease of current with increasing chopping frequency of the electron beam makes a direct measurement of the effective lifetime possible. Inspired by optical beam induced current (OBIC), this novel approach has great potential to measure the minority charge carrier lifetime locally and is going to help device and process engineers to develop the next generation of SiC power devices.

You have full access to the following eBook
Material Characterisation and Devices Processing Read eBook

Info:

Periodical:

Materials Science Forum (Volume 1191)

Pages:

21-28

DOI:

https://doi.org/10.4028/p-apC4NR

Citation:

Cite this paper

Online since:

May 2026

Authors:

Christian Stefan Gruber*, Gregor Pobegen, Jürgen Smoliner

Keywords:

Effective Lifetime, Electron Beam Induced Current, Minority Charge Carrier Lifetime, Recombination Lifetime, Scanning Electron Microscope, Time-Resolved EBIC

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0
