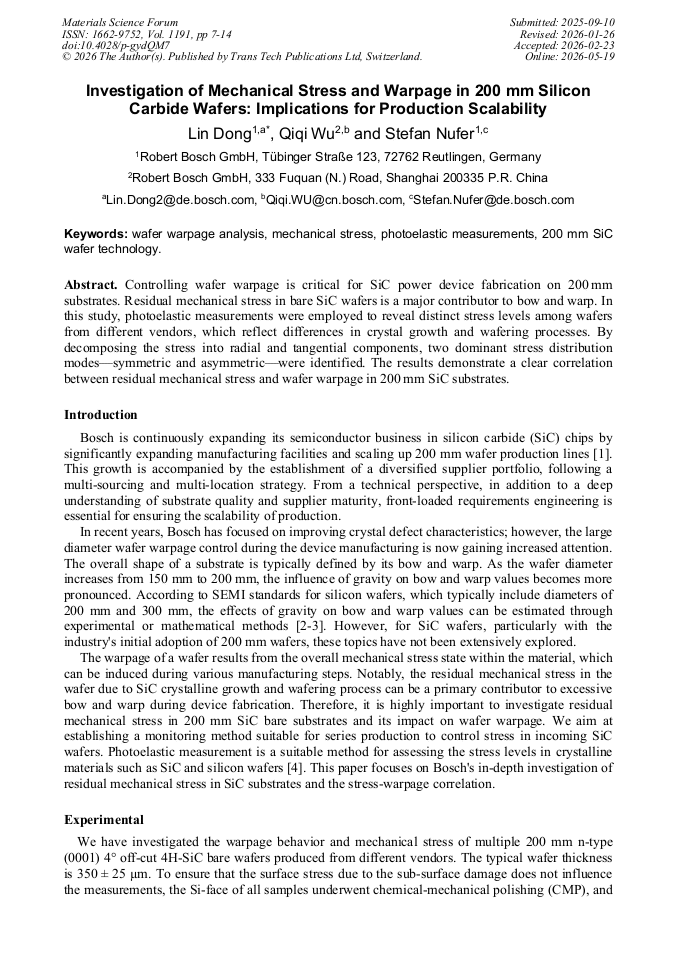

Investigation of Mechanical Stress and Warpage in 200 mm Silicon Carbide Wafers: Implications for Production Scalability

Article Preview
View Pdf By email

Abstract:

Controlling wafer warpage is critical for SiC power device fabrication on 200 mm substrates. Residual mechanical stress in bare SiC wafers is a major contributor to bow and warp. In this study, photoelastic measurements were employed to reveal distinct stress levels among wafers from different vendors, which reflect differences in crystal growth and wafering processes. By decomposing the stress into radial and tangential components, two dominant stress distribution modes—symmetric and asymmetric—were identified. The results demonstrate a clear correlation between residual mechanical stress and wafer warpage in 200 mm SiC substrates.

You have full access to the following eBook
Material Characterisation and Devices Processing Read eBook

Info:

Periodical:

Materials Science Forum (Volume 1191)

Pages:

7-14

DOI:

https://doi.org/10.4028/p-gydQM7

Citation:

Cite this paper

Online since:

May 2026

Authors:

Lin Dong*, Qi Qi Wu, Stefan Nufer

Keywords:

200 mm SiC Wafer Technology, Mechanical Stress, Photoelastic Measurements, Wafer Warpage Analysis

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author
