Impacts of Wafer Thinning Process Using Laser Slice Technique on Silicon Carbide Device Characteristics

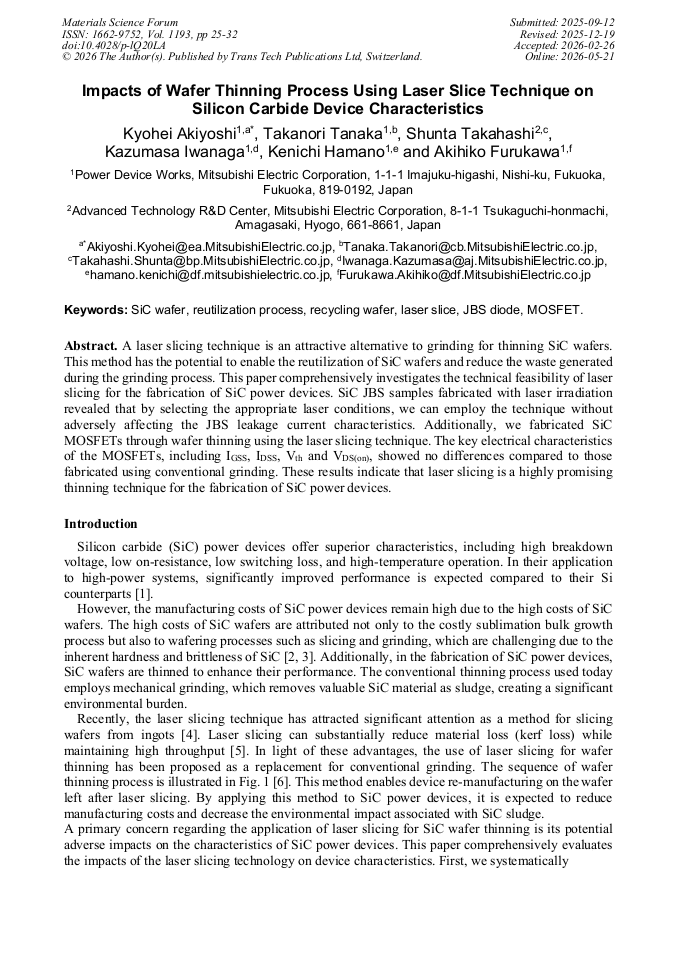

Article Preview
View Pdf By email

Abstract:

A laser slicing technique is an attractive alternative to grinding for thinning SiC wafers. This method has the potential to enable the reutilization of SiC wafers and reduce the waste generated during the grinding process. This paper comprehensively investigates the technical feasibility of laser slicing for the fabrication of SiC power devices. SiC JBS samples fabricated with laser irradiation revealed that by selecting the appropriate laser conditions, we can employ the technique without adversely affecting the JBS leakage current characteristics. Additionally, we fabricated SiC MOSFETs through wafer thinning using the laser slicing technique. The key electrical characteristics of the MOSFETs, including IGSS, IDSS, Vth and VDS(on), showed no differences compared to those fabricated using conventional grinding. These results indicate that laser slicing is a highly promising thinning technique for the fabrication of SiC power devices.

You have full access to the following eBook
Wafer Processing Read eBook

Info:

Periodical:

Materials Science Forum (Volume 1193)

Pages:

25-32

DOI:

https://doi.org/10.4028/p-lQ20LA

Citation:

Cite this paper

Online since:

May 2026

Authors:

Kyohei Akiyoshi*, Takanori Tanaka, Shunta Takahashi, Kazumasa Iwanaga, Kenichi Hamano, Akihiko Furukawa

Keywords:

JBS Diode, Laser Slice, MOSFET, Recycling Wafer, Reutilization Process, SiC Wafer

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] T. Kimoto, Jpn. J. Appl. Phys., 54, 040103 (2015).

Google Scholar

[2] X. Yu, W. Wu, B. Li, X. Xiu, Y. Zheng, and R. Zhang, Appl. Surf. Sci., 697, 163014 (2025).

Google Scholar

[3] G. Shang, H. Wang, H. Huang, and R. Kang, Int. J. Mech. Sci., 247, 108147 (2023).

Google Scholar

[4] Y. Lu, X. Li, B. Chen, X. Zhang, X. Li, Y. Wang, Y. Chen, M. Wang, and S. Wang, Opt. Express, 33(16), 33456 (2025).

DOI: 10.1364/oe.568553

Google Scholar

[5] K. Hirata, Proc. of SPIE, 10520, 1052003 (2018).

Google Scholar

[6] T. Ishida, T. Ushijima, S. Nakabayashi, K. Kato, T. Koyama, Y. Nagasato, J. Ohara, S. Hoshi, M. Nagaya, K. Hara, T. Kanemura, M. Taki, T. Yui, K. Hara, D. Kawaguchi, K. Kuno, T. Osajima, J. Kojima, T. Uesugi, A. Tanaka, C. Sasaoka, S. Onda, and J. Suda, Appl. Phys. Express, 17, 026501 (2024).

DOI: 10.35848/1882-0786/ad269d

Google Scholar

[7] A. Martychowiec, N. Kwietniewski, K. Kondracka, A. Werbowy, and M. Sochacki, Proc. of SPIE, 11581, 115810W (2020).

Google Scholar
